Diode Arrays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VS-U5FX120FA60DIODE MODULE GP 600V 60A SOT-227 |
154 |
|
Datasheet |
FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 60A (DC) | 2.2 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 63 ns | 40 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
VS-U5FH150FA60DIODE MODULE GP 600V 75A SOT-227 |
160 |
|
Datasheet |
FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 75A (DC) | 1.7 V @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | 70 ns | 50 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
|
VS-U5FX150FA60DIODE MODULE GP 600V 75A SOT-227 |
126 |
|
Datasheet |
FRED Pt® | SOT-227-4, miniBLOC | Tube | Active | 2 Independent | Standard | 600 V | 75A (DC) | 2.2 V @ 75 A | Fast Recovery =< 500ns, > 200mA (Io) | 65 ns | 50 µA @ 600 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
PCDH40120CCG1_T0_00601DIODE ARR SIC 1200V 20A TO-247AD |
1,500 |
|
Datasheet |
- | TO-247-3 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 20A (DC) | 1.7 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 180 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247AD |
|
IV1D12040U2DIODE ARR SIC 1200V 102A TO2472 |
120 |
|
Datasheet |
- | TO-247-2 | Tube | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 1200 V | 102A (DC) | 1.8 V @ 40 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -55°C ~ 175°C | - | - | Through Hole | TO-247-2 |
|
1N4148UBCA/TRDIODE ARRAY GP 75V 200MA UB |
200 |
|
Datasheet |
- | 3-SMD, No Lead | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | -65°C ~ 200°C | - | - | Surface Mount | UB |
|
|
1N4148UBDDIODE ARRAY GP 75V 200MA UB |
151 |
|
Datasheet |
- | 3-SMD, No Lead | Bulk | Active | 1 Pair Series Connection | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 500 nA @ 75 V | -65°C ~ 200°C | - | - | Surface Mount | UB |
|
|
RJS6004WDPK-00#T0DIODE ARRAY SIC 600V 10A TO-3P |
750 |
|
Datasheet |
- | TO-220-3 Full Pack | Bulk | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 600 V | 10A (DC) | 1.8 V @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | 15 ns | 10 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | TO-3P |
|
GB2X50MPS12-227DIODE MOD SIC 1200V 93A SOT-227 |
248 |
|
Datasheet |
SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 93A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 40 µA @ 1200 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
DCG45X1200NADIODE MOD SIC 1200V 22A SOT227B |
196 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 22A | 1.8 V @ 20 A | No Recovery Time > 500mA (Io) | 0 ns | 200 µA @ 1200 V | -40°C ~ 175°C | - | - | Chassis Mount | SOT-227B |
|
|
GB2X50MPS17-227DIODE MOD SIC 1700V 136A SOT-227 |
79 |
|
Datasheet |
SiC Schottky MPS™ | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1700 V | 136A (DC) | 1.8 V @ 50 A | No Recovery Time > 500mA (Io) | 0 ns | 50 µA @ 1700 V | -55°C ~ 175°C | - | - | Chassis Mount | SOT-227 |
|
MBRT20060RDIODE MOD SCHOTT 60V 100A 3TOWER |
67 |
|
Datasheet |
- | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 60 V | 100A | 800 mV @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MUR20020CTDIODE MODULE GP 200V 100A 2TOWER |
48 |
|
Datasheet |
- | Twin Tower | Bulk | Active | 1 Pair Common Cathode | Standard | 200 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|

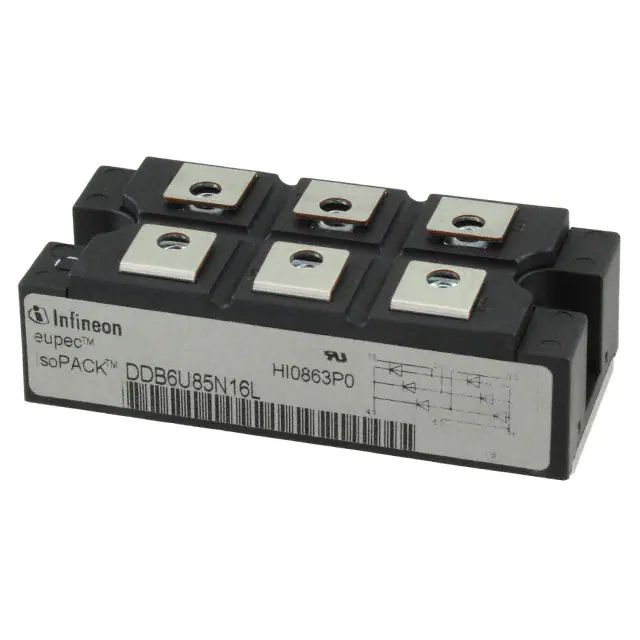

DDB6U85N16LHOSA1DIODE MODULE GP 1600V AGISOPACK1 |
9 |
|
Datasheet |
- | Module | Bulk | Obsolete | 3 Independent | Standard | 1600 V | 60A | 1.44 V @ 100 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | 150°C (Max) | - | - | Chassis Mount | AG-ISOPACK-1 |
|
MD165A16D2-BPDIODE MODULE GP 1600V 165A D2 |
80 |
|
Datasheet |
- | D2 | Bulk | Active | 1 Pair Common Anode | Standard | 1600 V | 165A | 1.4 V @ 300 A | Standard Recovery >500ns, > 200mA (Io) | - | 9 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D2 |
|
MSCDC150KK70D1PAGDIODE MODULE SIC 700V 150A D1P |
34 |
|
Datasheet |
- | Module | Box | Active | 1 Pair Common Cathode | SiC (Silicon Carbide) Schottky | 700 V | 150A | 1.8 V @ 150 A | No Recovery Time > 500mA (Io) | 0 ns | 600 µA @ 700 V | -40°C ~ 175°C | - | - | Chassis Mount | D1P |
|
|
DCG130X1200NADIODE MOD SIC 1200V 64A SOT227B |
335 |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Obsolete | 2 Independent | SiC (Silicon Carbide) Schottky | 1200 V | 64A | 1.8 V @ 60 A | No Recovery Time > 500mA (Io) | 0 ns | 800 µA @ 1200 V | -40°C ~ 175°C | - | - | Chassis Mount | SOT-227B |
|
JANTX1N6511DIODE ARRAY GP 75V 300MA 14-CDIP |
90 |
|
- |
- | 14-CDIP (0.300", 7.62mm) | Bulk | Active | 7 Independent | Standard | 75 V | 300mA (DC) | 1 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 10 ns | 100 nA @ 40 V | - | Military | MIL-PRF-19500/4 | Through Hole | 14-CDIP |
|
DD400S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
9,416 |
|
Datasheet |
- | Module | Bulk | Obsolete | 2 Independent | Standard | 3300 V | - | 3.5 V @ 400 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
|
|
DD800S33K2CNOSA1DIODE MODULE GP 3300V AIHV130-3 |
6,254 |
|
Datasheet |
- | Module | Bulk | Obsolete | 2 Independent | Standard | 3300 V | - | 3.5 V @ 800 A | Standard Recovery >500ns, > 200mA (Io) | - | - | -40°C ~ 125°C | - | - | Chassis Mount | A-IHV130-3 |
