PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLD60P300XFFPTC RESET FUSE 60V 3A RADIAL |
3,965 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.122" T (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
|
RLD60P375XFFPTC RESET FUSE 60V 3.75A RADIAL |
2,005 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, RLD60 | Tape & Box (TB) | Obsolete | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.118" Dia x 0.122" T (28.40mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
PTGL04AS100K2B51B0PTC RESET FUSE 30V 212MA RADIAL |
4,127 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 212 mA | 282 mA | 2 A | - | - | - | 10 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL05AS3R9K2B51B0PTC RESET FUSE 30V 340MA RADIAL |
4,623 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 340 mA | 452 mA | 3.5 A | - | - | - | 3.9 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.217" Dia x 0.138" T (5.50mm x 3.50mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
PTGL07AS2R7K2B51B0PTC RESET FUSE 30V 425MA RADIAL |
8,735 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 425 mA | 565 mA | 4.5 A | - | - | - | 2.7 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
|
PTGL07AS1R8K2B51B0PTC RESET FUSE 30V 532MA RADIAL |
3,805 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 532 mA | 708 mA | 5 A | - | - | - | 1.8 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
PTGL09AS1R2K2B51B0PTC RESET FUSE 30V 704MA RADIAL |
6,821 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 704 mA | 936 mA | 6 A | - | - | - | 1.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|
|
PTGL04AS100K3B51B0PTC RESET FUSE 51V 213MA RADIAL |
4,691 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 213 mA | 283 mA | 1 A | - | - | - | 10 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL05AS6R8K3B51B0PTC RESET FUSE 51V 249MA RADIAL |
8,992 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 249 mA | 331 mA | 1.5 A | - | - | - | 6.8 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.217" Dia x 0.138" T (5.50mm x 3.50mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AS2R2K3B51B0PTC RESET FUSE 51V 522MA RADIAL |
4,886 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 522 mA | 694 mA | 4 A | - | - | - | 2.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|
|
PTGL04AS220K4N51B0PTC RESET FUSE 60V 112MA RADIAL |
3,455 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 112 mA | 149 mA | 1 A | - | - | - | 22 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL04AS220K4B51B0PTC RESET FUSE 60V 145MA RADIAL |
8,617 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 145 mA | 193 mA | 1 A | - | - | - | 22 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.177" Dia x 0.138" T (4.50mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL05AS100K4B51B0PTC RESET FUSE 60V 215MA RADIAL |
6,720 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 215 mA | 286 mA | 1.5 A | - | - | - | 10 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.217" Dia x 0.138" T (5.50mm x 3.50mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
|
PTGL07AS5R6K4B51B0PTC RESET FUSE 60V 290MA RADIAL |
5,751 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 290 mA | 386 mA | 3 A | - | - | - | 5.6 Ohms | -20°C ~ 80°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AS3R3K4B51B0PTC RESET FUSE 60V 421MA RADIAL |
6,595 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 421 mA | 560 mA | 4 A | - | - | - | 3.3 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|

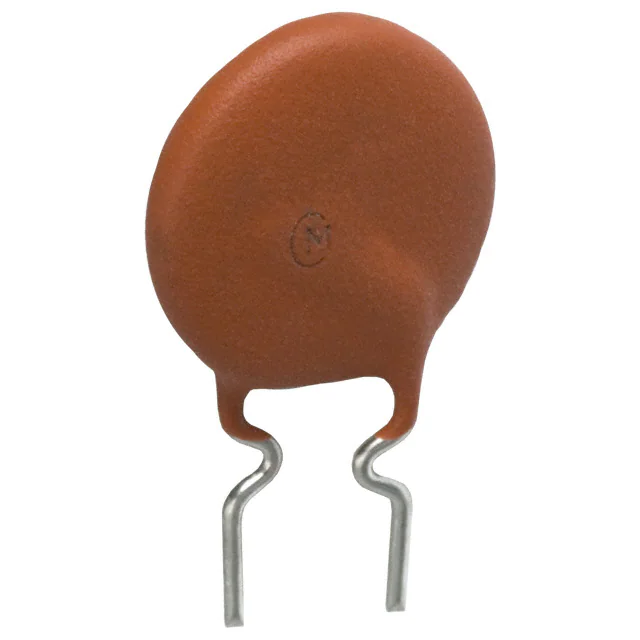

PTGL12AS2R2K4B51B0PTC RESET FUSE 60V 556MA RADIAL |
5,725 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 60V | 556 mA | 739 mA | 5 A | - | - | - | 2.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
|
PTGL04AS560K6B51B0PTC RESET FUSE 140V 94MA RADIAL |
6,837 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 94 mA | 125 mA | 500 mA | - | - | - | 56 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.177" Dia x 0.177" T (4.50mm x 4.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL05AS270K6B51B0PTC RESET FUSE 140V 134MA RADIAL |
7,012 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 134 mA | 178 mA | 1 A | - | - | - | 27 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.217" Dia x 0.177" T (5.50mm x 4.50mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
|
PTGL07AS150K6B51B0PTC RESET FUSE 140V 187MA RADIAL |
4,548 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 187 mA | 249 mA | 1.5 A | - | - | - | 15 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.287" Dia x 0.177" T (7.30mm x 4.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
|
PTGL09AS7R6K6B51B0PTC RESET FUSE 140V 287MA RADIAL |
7,704 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 287 mA | 382 mA | 2.2 A | - | - | - | 7.6 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
