PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
YPAL0.45NPTC RESET FUSE 30V 8A RADIAL |
8,055 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 1.3 A | 2.6 A | 8 A | - | - | - | 450 mOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
|
YPAL1.20NPTC RESET FUSE 30V 600MA RADIAL |
7,542 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPAL4.60NPTC RESET FUSE 30V 250MA RADIAL |
3,544 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 250 mA | 500 mA | 1 A | - | - | - | 4.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPCL0025NPTC RESET FUSE 265V 100MA RADIAL |
9,094 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 100 mA | 200 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0035NPTC RESET FUSE 265V 80MA RADIAL |
8,840 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 80 mA | 160 mA | 1 A | - | - | - | 35 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0055NPTC RESET FUSE 265V 60MA RADIAL |
6,917 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 60 mA | 125 mA | 1 A | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
|
YPCL0065NPTC RESET FUSE 265V 55MA RADIAL |
6,067 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 265V | 55 mA | 110 mA | 1 A | - | - | - | 65 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.413" (10.50mm) | - | 0.200" (5.08mm) |
|
RUE400-1PTC RESET FUSE 30V 4A RADIAL |
7,585 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.831" (21.10mm) | - | 0.201" (5.10mm) |
|
RXE050-1PTC RESET FUSE 72V 500MA RADIAL |
9,724 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
|
RXE010SPTC RESET FUSE 60V 100MA RADIAL |
7,866 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
|
RXE050SPTC RESET FUSE 72V 500MA RADIAL |
8,159 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Bulk | Obsolete | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
|
RGE400PTC RESET FUSE 16V 4A RADIAL |
7,198 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 4 A | 6.8 A | 100 A | 1.7 s | 21 mOhms | 60 mOhms | - | - | - | - | - | Through Hole | 0.331" L x 0.098" W (8.40mm x 2.50mm) | 0.504" (12.80mm) | - | 0.199" (5.05mm) |
|
RGE600PTC RESET FUSE 16V 6A RADIAL |
9,513 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | - | - | - | - | Through Hole | 0.402" L x 0.098" W (10.20mm x 2.50mm) | 0.673" (17.10mm) | - | 0.199" (5.05mm) |
|
RGE800PTC RESET FUSE 16V 8A RADIAL |
7,972 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 8 A | 13.6 A | 100 A | 5 s | 6 mOhms | 18 mOhms | - | - | - | - | - | Through Hole | 0.480" L x 0.098" W (12.20mm x 2.50mm) | 0.823" (20.90mm) | - | 0.199" (5.05mm) |
|
RGE1200PTC RESET FUSE 16V 12A RADIAL |
9,322 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3.3 mOhms | - | - | - | - | - | - | Through Hole | 0.670" L x 0.115" W (16.95mm x 2.90mm) | 1.102" (28.00mm) | - | 0.400" (10.15mm) |
|
RHE450PTC RESET FUSE 16V 4.5A RADIAL |
4,693 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 4.5 A | 7.8 A | 100 A | 3 s | 22 mOhms | 3.6 Ohms | - | - | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.614" (15.60mm) | - | 0.199" (5.05mm) |
|
|
RHE600PTC RESET FUSE 16V 6A RADIAL |
9,500 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 4.1 Ohms | - | - | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.199" (5.05mm) |
|
RHE750PTC RESET FUSE 16V 7.5A RADIAL |
7,423 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 4.5 Ohms | - | - | - | - | - | Through Hole | 0.551" L x 0.120" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.199" (5.05mm) |
|

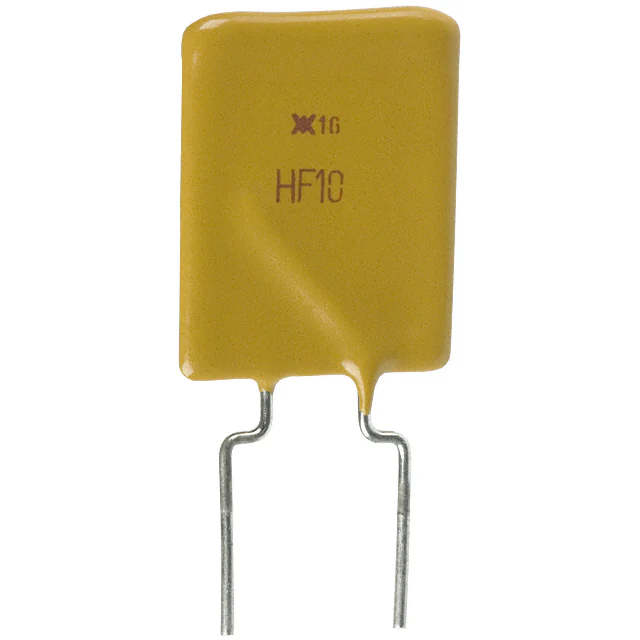

RHE1000PTC RESET FUSE 16V 10A RADIAL |
6,616 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 10 A | 18.5 A | 100 A | 9 s | 6.2 mOhms | - | - | - | - | - | - | Through Hole | 0.689" L x 0.120" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
RHE1300PTC RESET FUSE 16V 13A RADIAL |
8,811 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | - | - | - | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
