PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59850C0080A051PTC RESET FUSE 265V 110MA RADIAL |
8,460 |
|
- |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 110 mA | 230 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
YPBJ2.30TPTC RESET FUSE 80V 245MA RADIAL |
4,149 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 245 mA | 500 mA | 8 A | - | - | - | 2.3 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.138" T (17.50mm x 3.50mm) | 0.748" (19.00mm) | - | 0.200" (5.08mm) |
|
YQS5846PTFPTC RESET FUSE 25V 370MA RADIAL |
9,364 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Active | Ceramic | 25V | 370 mA | 740 mA | - | - | - | - | 3 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.551" Dia x 0.181" T (14.00mm x 4.60mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
|
YPCL0010NPTC RESET FUSE 265V 200MA RADIAL |
8,374 |
|
Datasheet |
Radial, Disc | YP | Bulk | Obsolete | Ceramic | 265V | 200 mA | 400 mA | 2.2 A | - | - | - | 10 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.197" T (13.50mm x 5.00mm) | 0.591" (15.00mm) | - | 0.200" (5.08mm) |
|
0ZSC0730FF1EPTC RESET FUSE 20V 7.3A STRAP |
12 |
|
Datasheet |
Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 7.3 A | 14.1 A | 100 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.106" L x 0.559" W (28.10mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
TS250130F-B-0.5-2PTC RESET FUSE 60V 130MA 2SMD |
3,778 |
|
- |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 1 A | 2.5 s | 6.5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
.jpg)
|
MF-PSML250/6-2PTC RESET FUSE 6V 2.5A 0805 |
7,769 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 2.5 A | 5 A | 50 A | 2 s | 3 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
|
YQB120N3.70PTC RESET FUSE 80V 380MA RADIAL |
9,509 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 80V | 380 mA | 750 mA | 5.5 A | - | - | - | 3.7 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.532" Dia x 0.157" T (13.50mm x 4.00mm) | - | - | 0.201" (5.10mm) |
|
|
PFRA.135.2PTC RESET FUSE 30V 1.35A RADIAL |
6,242 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 65 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" Dia x 0.118" T (8.90mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
|
|
PFRA.160.2PTC RESET FUSE 30V 1.6A RADIAL |
8,683 |
|
Datasheet |
Radial, Disc | PFRA | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 55 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" Dia x 0.118" T (10.20mm x 3.00mm) | 0.661" (16.80mm) | - | 0.201" (5.10mm) |
|
RL6010-20-120-120-PTOPTC RESET FUSE 120V RADIAL DISC |
6,691 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 120V | - | - | - | 90 s | - | - | 20 Ohms | - | - | - | - | Through Hole | 0.650" Dia x 0.230" T (16.51mm x 5.84mm) | 0.650" (16.51mm) | - | 0.331" (8.40mm) |
|

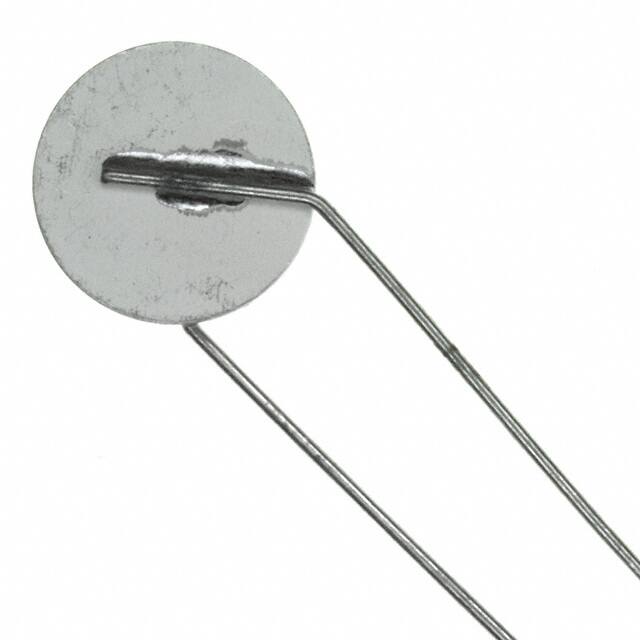

RL5510-25-60-120-PTOPTC RESET FUSE 120V RADIAL DISC |
5,405 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 120V | - | - | - | 90 s | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.600" Dia x 0.220" T (15.24mm x 5.59mm) | 0.600" (15.24mm) | - | 0.330" (8.38mm) |
|
PTCTL6NR100GTEPTC RESET FUSE 245V 140MA RADIAL |
4,952 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 245V | 140 mA | 270 mA | 2 A | 8 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.433" Dia x 0.177" T (11.00mm x 4.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
AHRF800-2PTC RESET FUSE 16V 8A RADIAL |
6,546 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 7.2 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.886" (22.50mm) | - | 0.199" (5.05mm) |
|
|
YQB120N5.60PTC RESET FUSE 80V 300MA RADIAL |
7,874 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 80V | 300 mA | 600 mA | 4.3 A | - | - | - | 5.6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.157" T (11.00mm x 4.00mm) | - | - | 0.201" (5.10mm) |
|
YM120D150N330PTC RESET FUSE 265V 128MA RADIAL |
9,733 |
|
Datasheet |
Radial, Disc | YM | Bulk | Obsolete | Ceramic | 265V | 128 mA | 181 mA | 900 mA | - | - | - | 33 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.295" Dia x 0.177" T (7.50mm x 4.50mm) | 0.394" (10.00mm) | - | 0.200" (5.08mm) |
|
|
YM120D170N250PTC RESET FUSE 265V 161MA RADIAL |
7,042 |
|
Datasheet |
Radial, Disc | YM | Bulk | Obsolete | Ceramic | 265V | 161 mA | 228 mA | 1.1 A | - | - | - | 25 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.335" Dia x 0.177" T (8.50mm x 4.50mm) | 0.433" (11.00mm) | - | 0.200" (5.08mm) |
|
YM120D200N200PTC RESET FUSE 265V 192MA RADIAL |
4,012 |
|
Datasheet |
Radial, Disc | YM | Bulk | Obsolete | Ceramic | 265V | 192 mA | 265 mA | 1.3 A | - | - | - | 20 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.374" Dia x 0.177" T (9.50mm x 4.50mm) | 0.472" (12.00mm) | - | 0.200" (5.08mm) |
|
PTCCL09H271FTEPTC RESET FUSE 145V 270MA RADIAL |
4,933 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 270 mA | 405 mA | 2.2 A | - | - | - | 8 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.197" T (8.50mm x 5.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
RL5506-5-65-50-PTOPTC RESET FUSE 50V RADIAL DISC |
2,631 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 50V | - | - | - | 50 s | - | - | 5 Ohms | - | - | - | - | Through Hole | 0.600" Dia x 0.180" T (15.24mm x 4.57mm) | 0.600" (15.24mm) | - | 0.331" (8.40mm) |
