PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS181216V035PTC RESET FUSE 16V 350MA 1812 |
2,424 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 100 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
.JPG)
|
PRG15BC330MM1RCPTC RESET FUSE 30V 38MA 0402 |
90,806 |
|
Datasheet |
0402 (1005 Metric) | POSISTOR®, PRG | Tape & Reel (TR) | Active | Ceramic | 30V | 38 mA | 73 mA | 1.2 A | - | - | - | 33 Ohms | -20°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.022" (0.55mm) | - |
|
0ZCH0035FF2GPTC RESET FUSE 16V 350MA 1210 |
51,816 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 100 A | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.032" (0.80mm) | - |
|
|
0ZCH0020FF2EPTC RESET FUSE 30V 200MA 1210 |
32,889 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
,-Concave.jpg)
|
0ZCG0035AF2CPTC RESET FUSE 30V 350MA 1812 |
23,693 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 700 mA | 40 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
|
0ZCG0110FF2CPTC RESET FUSE 8V 1.1A 1812 |
15,023 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.022" (0.55mm) | - |
|
|
0ZCH0075FF2GPTC RESET FUSE 8V 750MA 1210 |
8,893 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 8V | 750 mA | 1.5 A | 100 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
.JPG)
|
MF-NSMF035X-2PTC RESET FUSE 16V 350MA 1206 |
8,376 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse® freeXpansionTM, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 750 mA | 20 A | 140 ms | 300 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.033" (0.85mm) | - |
|
MF-MSMF110-2PTC RESET FUSE 6V 1.1A 1812 |
7,205 |
|
Datasheet |
1812 (4532 Metric), Concave | Multifuse®, MF-MSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|
SMD1812B150TF/24PTC RESET FUSE 24V 1.5A 1812 |
5,733 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 1.5 A | 3 A | 20 A | 1.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.083" (2.10mm) | - |
|
|
0ZCG0125AF2BPTC RESET FUSE 16V 1.25A 1812 |
34,516 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCG0150AF2CPTC RESET FUSE 12V 1.5A 1812 |
32,867 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.043" (1.10mm) | - |
|

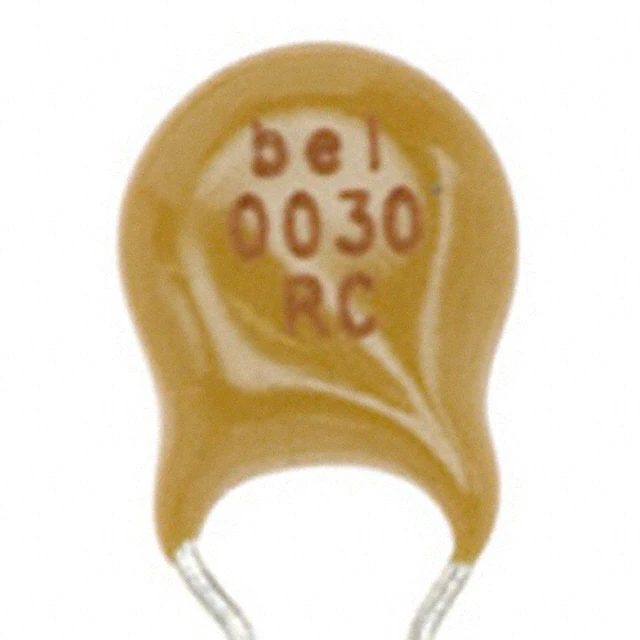

0ZRC0030FF1EPTC RESET FUSE 90V 300MA RADIAL |
17,391 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
PTS12066V075PTC RESET FUSE 6V 750MA 1206 |
7,503 |
|
Datasheet |
1206 (3216 Metric), Concave | PTS1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 100 A | 100 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
SMD1812B260TF/16PTC RESET FUSE 16V 2.6A 1812 |
2,944 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.083" (2.10mm) | - |
|
PTS060315V005PTC RESET FUSE 50MA 15V 0603 |
64,273 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 15V | 50 mA | 150 mA | 1 A | 1 s | 1 Ohms | 40 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.031" W (1.65mm x 0.80mm) | - | 0.031" (0.80mm) | - |
|
|
MF-NSMF110-2PTC RESET FUSE 6V 1.1A 1206 |
61,797 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 100 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.028" (0.70mm) | - |
|
0ZCM0004FF2GPTC RESET FUSE 24V 40MA 0603 |
25,941 |
|
Datasheet |
0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 24V | 40 mA | 120 mA | 40 A | 1 s | 4 Ohms | 40 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.030" (0.75mm) | - |
|
SMD0603B035TFPTC RESET FUSE 6V 350MA 0603 |
23,341 |
|
Datasheet |
0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCM0012FF2GPTC RESET FUSE 9V 120MA 0603 |
22,997 |
|
Datasheet |
0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 9V | 120 mA | 300 mA | 40 A | 100 ms | 1.1 Ohms | 5.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.030" (0.75mm) | - |
