PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR016V0700-TRPTC RESET FUSE 16V 7A RADIAL |
2,885 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 3.5 s | 6 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.122" W (11.20mm x 3.10mm) | 0.776" (19.70mm) | - | 0.197" (5.00mm) |
|
PTGL09AR150M3B51B0PTC RESET FUSE 56V 190MA RADIAL |
9,306 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 190 mA | 340 mA | 1.2 A | - | - | - | 15 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.374" Dia x 0.157" T (9.50mm x 4.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
SMD2920P200TFAPTC RESET FUSE 15V 2A 2920 |
3,875 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 2 A | 4 A | 40 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
SMD2920P185TFAPTC RESET FUSE 33V 1.85A 2920 |
5,455 |
|
- |
2920 (7351 Metric), Concave | POLY-FUSE®, SMD2920 | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 65 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
PTR030V0185-TR1PTC RESET FUSE 30V 1.85A RADIAL |
5,653 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.197" (5.00mm) |
|
|
PTR030V0160-TR1PTC RESET FUSE 30V 1.6A RADIAL |
9,901 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.197" (5.00mm) |
|
PTR060V0135-TR1PTC RESET FUSE 60V 1.35A RADIAL |
6,544 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.571" Dia x 0.118" T (14.50mm x 3.00mm) | 0.772" (19.60mm) | - | 0.197" (5.00mm) |
|
MF-RG500-APPTC RESET FUSE 16V 5A RADIAL |
9,020 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
|
MF-R700-APPTC RESET FUSE 30V 7A RADIAL |
7,465 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.870" L x 0.118" W (22.10mm x 3.00mm) | 1.173" (29.80mm) | - | 0.402" (10.20mm) |
|
MF-RG600-APPTC RESET FUSE 16V 6A RADIAL |
8,269 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.673" (17.10mm) | - | 0.201" (5.10mm) |
|
|
MF-R600-0-14PTC RESETTABLE 6.0A 30V RADIAL L |
8,951 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.760" L x 0.118" W (19.30mm x 3.00mm) | 1.256" (31.90mm) | - | 0.402" (10.20mm) |
|
|
MF-R500-AP-14PTC RESETTABLE 5.0A 30V RADIAL L |
9,948 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Box (TB) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT650-0-14PTC 6.5A 16V RADIAL LEADED HI-TE |
4,887 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.201" (5.10mm) |
|
|
MF-RG300-0-14PTC RESETTABLE 3.0A 16V RADIAL L |
8,591 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Bulk | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
|
MF-R500-2-14PTC RESETTABLE 5.0A 30V RADIAL L |
2,293 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.685" L x 0.118" W (17.40mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
MF-RHT600-0-14PTC 6.0A 16V RADIAL LEADED HI-TE |
7,694 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|

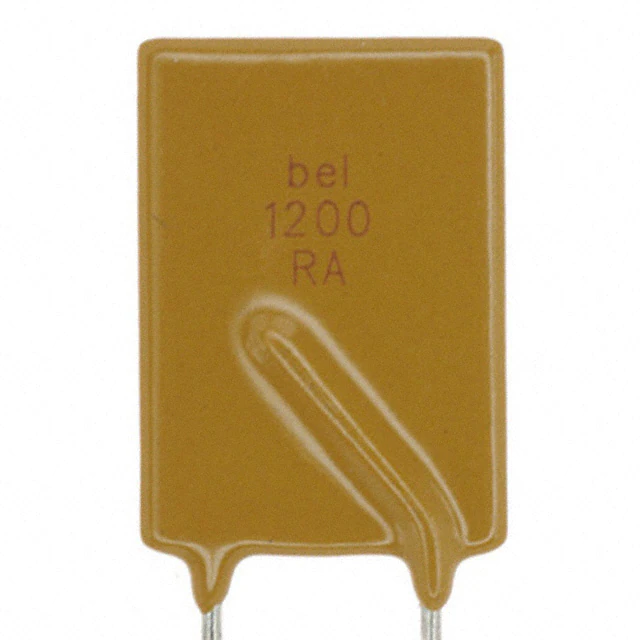

0ZRA1200FF1APTC RESET FUSE 16V 12A RADIAL |
5,590 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 16 s | 2 mOhms | 9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.142" W (17.50mm x 3.60mm) | 1.102" (28.00mm) | - | 0.402" (10.20mm) |
|

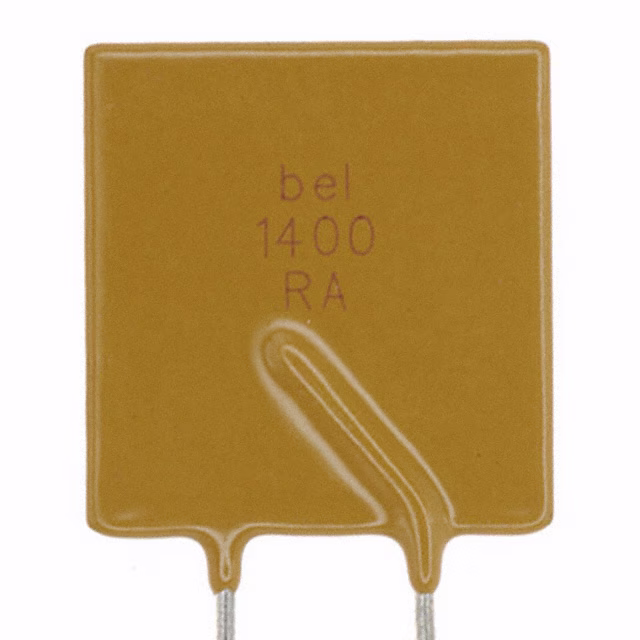

0ZRA1400FF1APTC RESET FUSE 16V 14A RADIAL |
2,871 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 20 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.098" L x 0.142" W (27.90mm x 3.60mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
PTGL7SAS3R3K3B51A0PTC RESET FUSE 51V 389MA RADIAL |
3,583 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 389 mA | 517 mA | 3 A | - | - | - | 3.3 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.287" Dia x 0.138" T (7.30mm x 3.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
|
BK30-800-SZPTC RESET FUSE 30V 8A RAD |
7,304 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 8 A | 16 A | 40 A | 18.8 s | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.122" W (23.50mm x 3.10mm) | 1.220" (31.00mm) | - | 0.413" (10.50mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
