PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZCC0160FF2CPTC RESET FUSE 8V 1.6A 1812 |
2,711 |
|
Datasheet |
1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.6 A | 3.2 A | 100 A | 500 ms | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
LVR005SPTC RESET FUSE 240V 50MA RADIAL |
2,301 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.430" (10.70mm) | - | 0.200" (5.08mm) |
|
|
LVR008SPTC RESET FUSE 240V 80MA RADIAL |
9,371 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.430" (10.70mm) | - | 0.200" (5.08mm) |
|
RTEF190PTC RESET FUSE 33V 1.9A RADIAL |
5,951 |
|
- |
Radial, Disc | PolySwitch® | Bag | Obsolete | Polymeric | 33V | 1.9 A | 3 A | 40 A | 3.5 s | 45 mOhms | 92 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
|
LVR005KPTC RESET FUSE 240V 50MA RADIAL |
7,644 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.200" (5.08mm) |
|
|
LVR008KPTC RESET FUSE 240V 80MA RADIAL |
2,366 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bulk | Obsolete | Polymeric | 240V (265V Int) | 80 mA | 190 mA | 1.2 A | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia x 0.150" T (8.30mm x 3.80mm) | 0.508" (12.90mm) | - | 0.200" (5.08mm) |
|
|
RTEF190SPTC RESET FUSE 33V 1.9A RADIAL |
2,900 |
|
- |
Radial, Disc | PolySwitch® | Bulk | Obsolete | Polymeric | 33V | 1.9 A | 3 A | 40 A | 3.5 s | 45 mOhms | 92 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
RUE250U-2PTC RESET FUSE 30V 2.5A RADIAL |
5,402 |
|
Datasheet |
Radial, Disc | PolySwitch® | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 2.5 A | 5 A | 40 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
PTR016V0155-TR1PTC RESET FUSE 16V 1.55A RADIAL |
8,312 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.55 A | 3.1 A | 40 A | 600 ms | 43 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - |
|
|
BK250-400-SIPTC RESET FUSE 250V 400MA RAD |
7,353 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 400 mA | 800 mA | 10 A | 9 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.441" L x 0.181" W (11.20mm x 4.60mm) | 0.768" (19.50mm) | - | 0.201" (5.10mm) |
|
RUEF160-1PTC RESET FUSE 30V 1.6A RADIAL |
9,831 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bulk | Obsolete | Polymeric | 30V | 1.6 A | 3.2 A | 100 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.199" (5.05mm) |
|
PTR060V0020-TRPTC RESET FUSE 60V 200MA RADIAL |
9,096 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.197" (5.00mm) |
|
RUSBF250-APPTC RESET FUSE 16V 2.5A RADIAL |
5,989 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUSBF | Tape & Box (TB) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.199" (5.05mm) |
|
16R250BPRPTC RESET FUSE 16V 2.5A RADIAL |
8,655 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Tape & Box (TB) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 40 A | 40 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
0ZRC0185FF2BPTC RESET FUSE 90V 1.85A RADIAL |
7,309 |
|
Datasheet |
Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
RHEF070U-2PTC RESET FUSE 30V 700MA RADIAL |
8,582 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.272" L x 0.118" W (6.90mm x 3.00mm) | 0.425" (10.80mm) | - | 0.199" (5.05mm) |
|

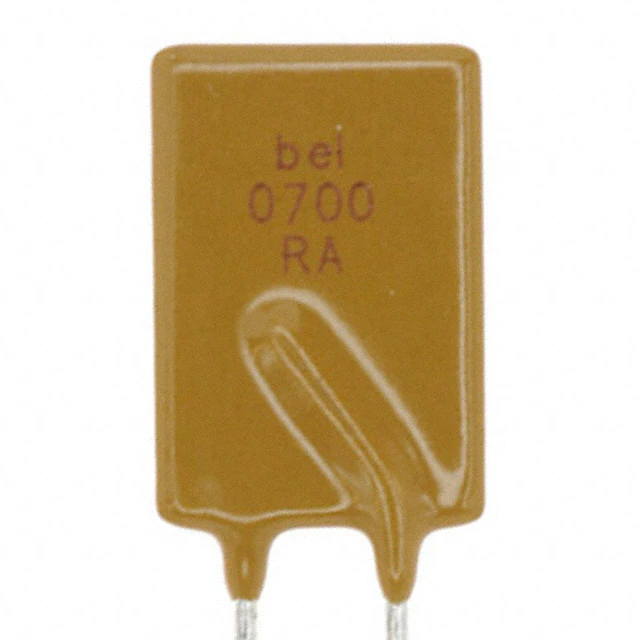

0ZRA0700FF1APTC RESET FUSE 16V 7A RADIAL |
2,984 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 8 s | 6 mOhms | 21 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
|
PTR060V0017-TRPTC RESET FUSE 60V 170MA RADIAL |
3,172 |
|
Datasheet |
Radial, Disc | PTR060V | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.197" (5.00mm) |
|
|
RTEF190-2PTC RESET FUSE 33V 1.9A RADIAL |
4,909 |
|
- |
Radial, Disc | PolySwitch® | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.9 A | 3 A | 40 A | 3.5 s | 45 mOhms | 92 mOhms | - | - | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
|
MF-R017-0-17PTC RESETTABLE 0.17A 60V RADIAL |
5,031 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
