PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXE025-2PTC RESET FUSE 72V 250MA RADIAL |
2,764 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXE | Tape & Reel (TR) | Obsolete | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | - | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|

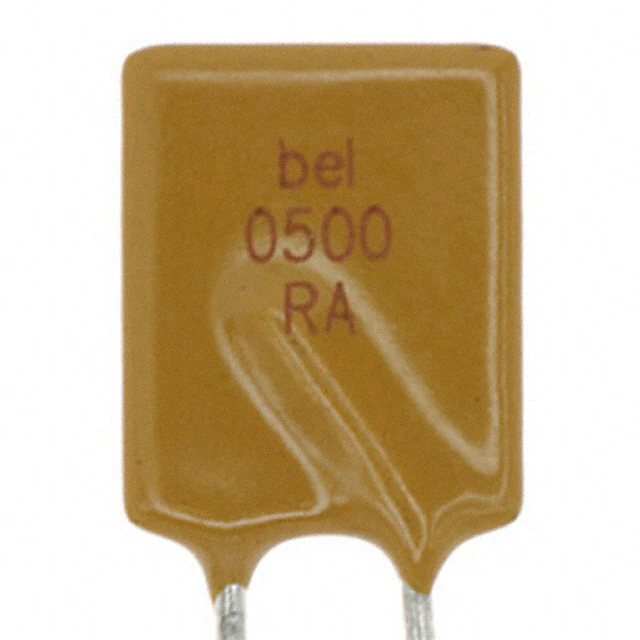

0ZRA0500FF1EPTC RESET FUSE 16V 5A RADIAL |
2,093 |
|
Datasheet |
Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 3.6 s | 14 mOhms | 44 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
1206L160PRPTC RESET FUSE 6V 1.6A 1206 |
8,174 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.6 A | 3.2 A | 100 A | 400 ms | 25 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.063" (1.60mm) | - |
|
RXEF017-1PTC RESET FUSE 60V 170MA RADIAL |
8,591 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bulk | Obsolete | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
RXEF005-1PTC RESET FUSE 60V 50MA RADIAL |
8,434 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bulk | Obsolete | Polymeric | 60V | 50 mA | 100 mA | 40 A | 5 s | 7.3 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.315" Dia x 0.118" T (8.00mm x 3.00mm) | 0.327" (8.30mm) | - | 0.199" (5.05mm) |
|
|
RXEF020-1PTC RESET FUSE 72V 200MA RADIAL |
6,397 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bulk | Obsolete | Polymeric | 72V | 200 mA | 400 mA | 40 A | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.461" (11.70mm) | - | 0.199" (5.05mm) |
|
|
BK130-650-SZPTC RESET FUSE 130V 650MA RAD |
4,682 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 650 mA | 1.3 A | 10 A | 8 s | 500 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.150" W (14.00mm x 3.80mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
BK130-500-SZPTC RESET FUSE 130V 500MA RAD |
2,220 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 500 mA | 1 A | 20 A | 5 s | 800 mOhms | 1.6 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.453" L x 0.150" W (11.50mm x 3.80mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
BK130-750-SZPTC RESET FUSE 130V 750MA RAD |
3,054 |
|
Datasheet |
Radial, Disc | BK130 | Bulk | Active | Polymeric | 130V | 750 mA | 1.5 A | 10 A | 8 s | 400 mOhms | 800 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.150" W (14.00mm x 3.80mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
0ZRG0110FF2EPTC RESET FUSE 30V 1.1A RADIAL |
6,611 |
|
Datasheet |
Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0135FF2EPTC RESET FUSE 30V 1.35A RADIAL |
5,893 |
|
Datasheet |
Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0160FF2EPTC RESET FUSE 30V 1.6A RADIAL |
7,635 |
|
Datasheet |
Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0185FF2EPTC RESET FUSE 30V 1.85A RADIAL |
2,495 |
|
Datasheet |
Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
PTGL05AR1R0M1B51A0PTC RESET FUSE 16V 470MA RADIAL |
3,572 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 470 mA | 880 mA | 2 A | - | - | - | 1 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.236" Dia x 0.138" T (6.00mm x 3.50mm) | 0.374" (9.50mm) | - | 0.197" (5.00mm) |
|
|
RXEF025-1PTC RESET FUSE 72V 250MA RADIAL |
8,375 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bulk | Obsolete | Polymeric | 72V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
.jpg)
|
NANOSMD270LR-2PTC RESET FUSE 6V 2.7A 1206 |
5,158 |
|
Datasheet |
1206 (3216 Metric) | PolySwitch®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.7 A | 6.3 A | 50 A | 5 s | 5 mOhms | - | - | - | - | - | - | Surface Mount | 0.127" L x 0.063" W (3.22mm x 1.61mm) | - | 0.039" (1.00mm) | - |
|
|
PTR016V0155-TRPTC RESET FUSE 16V 1.55A RADIAL |
6,668 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.55 A | 3.1 A | 40 A | 600 ms | 43 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | - | - | - | - |
|

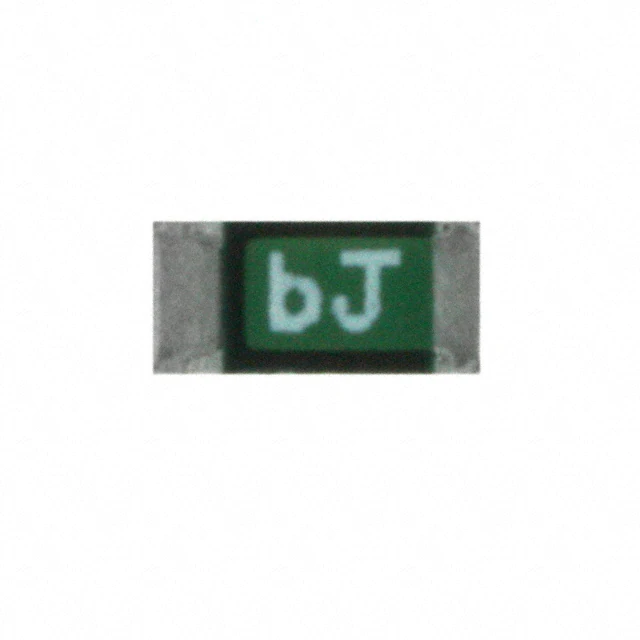

0ZCA0005FF2EPTC RESET FUSE 60V 50MA 1206 |
7,863 |
|
Datasheet |
1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
0ZCA0010FF2EPTC RESET FUSE 60V 100MA 1206 |
9,315 |
|
Datasheet |
1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 100 mA | 250 mA | 10 A | 1 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCA0020FF2EPTC RESET FUSE 30V 200MA 1206 |
4,986 |
|
Datasheet |
1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 10 A | 50 ms | 600 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
