PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFRY.375PTC RESET FUSE 72V 3.75A RADIAL |
5,340 |
|
Datasheet |
Radial, Disc | PFRY | Bulk | Active | Polymeric | 72V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.926" L x 0.118" W (23.51mm x 3.00mm) | 1.165" (29.60mm) | - | 0.402" (10.20mm) |
|
VTP110FPTC RESET FUSE 16V 1.1A STRAP |
5,170 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.1 A | 2.7 A | 100 A | 5 s | 38 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.008" L x 0.114" W (25.60mm x 2.90mm) | - | 0.028" (0.70mm) | - |
|
MF-RX050/72-APPTC RESET FUSE 72V 500MA RADIAL |
7,830 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX/72 | Cut Tape (CT) | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 410 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
RGEF600K-APPTC RESET FUSE 16V 6A RADIAL |
5,644 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Cut Tape (CT) | Active | Polymeric | 16V | 6 A | 10.2 A | 100 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.421" L x 0.098" W (10.70mm x 2.50mm) | 0.709" (18.00mm) | - | 0.199" (5.05mm) |
|
|
MF-RX065/72-2PTC RESET FUSE 72V 650MA RADIAL |
2,727 |
|
Datasheet |
Radial, Disc | MF-RX/72 | Tape & Reel (TR) | Active | - | 72V | 650 mA | 1.3 A | 40 A | 5.3 s | - | - | - | - | - | - | - | Through Hole | 0.382" Dia x 0.122" W (9.70mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
2920L260PRPTC RESET FUSE 6V 2.6A 2920 |
2,706 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5 A | 40 A | 10 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
AHRF1100PTC RESET FUSE 16V 11A RADIAL |
3,348 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 11 A | 21.2 A | 100 A | 11 s | 4.8 mOhms | 13 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.827" L x 0.118" W (21.00mm x 3.00mm) | 1.028" (26.10mm) | - | 0.400" (10.15mm) |
|

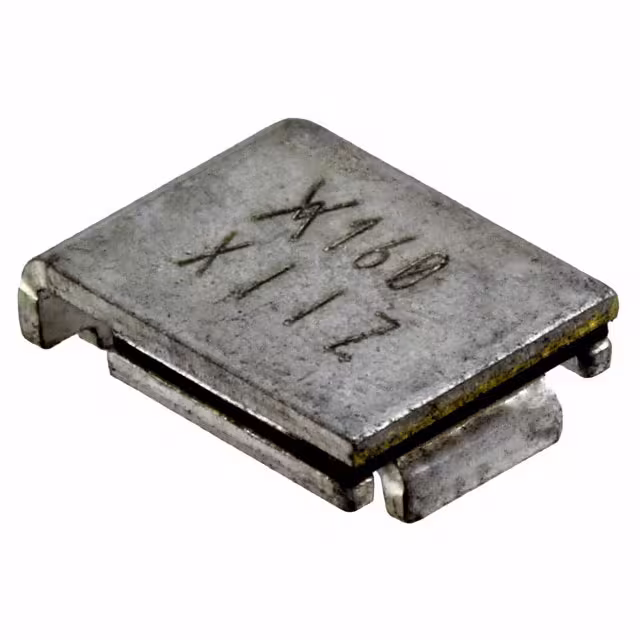

SMDH160-2PTC RESET FUSE 16V 1.6A 2SMD |
25 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 70 A | 15 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
0ZRN0200FF2DPTC RESET FUSE 16V 2A RADIAL |
6,623 |
|
Datasheet |
Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 2 A | 3.8 A | 100 A | 3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.370" Dia x 0.118" T (9.40mm x 3.00mm) | 0.567" (14.40mm) | - | 0.201" (5.10mm) |
|
TRF250-183-2PTC RESET FUSE 100V 183MA RADIAL |
5,073 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.295" Dia x 0.161" T (7.50mm x 4.10mm) | 0.413" (10.50mm) | - | 0.197" (5.00mm) |
|
TRF250-120US-2PTC RESET FUSE 60V 120MA RADIAL |
16 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" L x 0.150" W (6.00mm x 3.80mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
AGRF600-2PTC RESET FUSE 16V 6A RADIAL |
3,498 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.7 A | 100 A | 3.5 s | 9.5 mOhms | 28 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.421" L x 0.118" W (10.70mm x 3.00mm) | 0.724" (18.40mm) | - | 0.199" (5.05mm) |
|
250R120ZRPTC RESET FUSE 60V 120MA RADIAL |
8,268 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 250R | Cut Tape (CT) | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
AHRF450-2PTC RESET FUSE 16V 4.5A RADIAL |
4,847 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 4.5 A | 8.7 A | 100 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.614" (15.60mm) | - | 0.200" (5.08mm) |
|
VLR170FPTC RESET FUSE 12V 1.7A STRAP |
5,431 |
|
Datasheet |
Strap | PolySwitch®, VLR | Bulk | Active | Polymeric | 12V | 1.7 A | 4.1 A | 100 A | 5 s | 18 mOhms | 64 mOhms | - | -40°C ~ 70°C | - | - | - | User Defined | 0.866" L x 0.146" W (22.00mm x 3.70mm) | - | 0.032" (0.80mm) | - |
|
PTSLR12066V500PTC RESET FUSE 6V 5A 1206 |
2,614 |
|
Datasheet |
1206 (3216 Metric), Concave | PTSLR1206 | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 13 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
MF-RHT650-2PTC RESET FUSE 16V 6.5A RADIAL |
6 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.114" (2.90mm) |
|
VTP170XSFPTC RESET FUSE 16V 1.7A STRAP |
2,780 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 1.7 A | 3.4 A | 100 A | 5 s | - | - | - | -40°C ~ 85°C | - | - | - | User Defined | 0.862" L x 0.201" W (21.90mm x 5.10mm) | - | 0.032" (0.80mm) | - |
|
0ZRN0400FF1EPTC RESET FUSE 16V 4A RADIAL |
13 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 4 A | 7 A | 100 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.394" L x 0.118" W (10.00mm x 3.00mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|
|
AGRF900-2PTC RESET FUSE 16V 9A RADIAL |
4,059 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 6 s | 4.1 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.906" (23.00mm) | - | 0.199" (5.05mm) |
