PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FRG400-16FRESETTABLE FUSE - PPTC RADIAL LE |
600 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 4 A | 6.8 A | 100 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
FRU250-30FRESETTABLE FUSE - PPTC RADIAL LE |
300 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 2.5 A | 5 A | 100 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
|
FRU300-30FRESETTABLE FUSE - PPTC RADIAL LE |
340 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 3 A | 6 A | 100 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.449" L x 0.118" W (11.40mm x 3.00mm) | 0.681" (17.30mm) | - | 0.201" (5.10mm) |
|
FRV012-240FRESETTABLE FUSE - PPTC RADIAL LE |
990 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 120 mA | 300 mA | 1.2 A | 15 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.327" Dia (8.30mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
FSMD100-60-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
1,000 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 60V | 1.1 A | 2.2 A | 100 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
|
FSMD330-2920RRESETTABLE FUSE - SMD, 2920 SIZE |
900 |
|
Datasheet |
2920 (7351 Metric), Concave | FSMD2920 | Tape & Reel (TR) | Active | - | 24V | 3.3 A | 5.5 A | 100 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.045" (1.15mm) | - |
|
MF-USML230-2PTC RESET FUSE 6V 2.3A 1210 |
4,074 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.3 A | 4.6 A | 50 A | 3.5 s | 4.5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.60mm) | - |
|
MF-RX110-0-99PTC RESET FUSE 60V 1.1A RADIAL |
6,304 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RX | Bulk | Obsolete | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.427" L x 0.122" W (10.84mm x 3.10mm) | 0.662" (16.84mm) | - | 0.201" (5.10mm) |
|

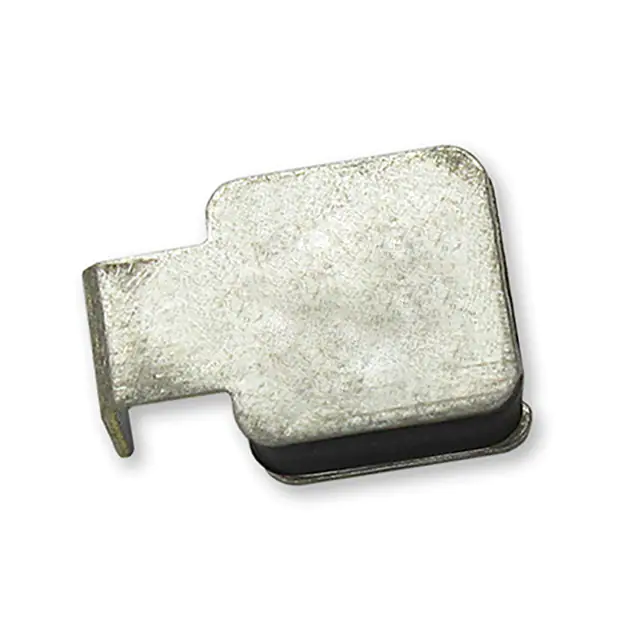

TSL250-080F-B-0.5-2PTC RESET FUSE 80V 80MA 2SMD |
743 |
|
Datasheet |
2-SMD | PolySwitch®, TSL250 | Tape & Reel (TR) | Obsolete | Polymeric | 80V (250V Int) | 80 mA | 240 mA | 3 A | 1.6 s | 5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.287" L x 0.199" W (7.30mm x 5.05mm) | - | 0.146" (3.70mm) | - |
|
|
FRV025-240FRESETTABLE FUSE - PPTC RADIAL LE |
490 |
|
Datasheet |
Radial, Disc | FRV | Bulk | Active | - | 240V (265V Int) | 250 mA | 560 mA | 3.5 A | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.378" L x 0.150" W (9.60mm x 3.80mm) | 0.685" (17.40mm) | - | 0.201" (5.10mm) |
|
|
FRG800-16FRESETTABLE FUSE - PPTC RADIAL LE |
380 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 8 A | 13.6 A | 100 A | 9 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
|
FRX250-90FRESETTABLE FUSE - PPTC RADIAL LE |
290 |
|
Datasheet |
Radial, Disc | FRX90 | Bulk | Active | - | 72V (90V Int) | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.839" Dia (21.30mm) | 1.039" (26.40mm) | - | 0.402" (10.20mm) |
|
|
FRU500-30FRESETTABLE FUSE - PPTC RADIAL LE |
380 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 5 A | 10 A | 100 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
|
FRU600-30FRESETTABLE FUSE - PPTC RADIAL LE |
300 |
|
Datasheet |
Radial, Disc | FRU | Bulk | Active | - | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
RXEF017-APPTC RESET FUSE 60V 170MA RADIAL |
250 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.199" (5.05mm) |
|
16R1100GFPTC RESET FUSE 16V 11A RADIAL |
400 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Obsolete | Polymeric | 16V | 11 A | 18.7 A | 100 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
|
FRG900-16FRESETTABLE FUSE - PPTC RADIAL LE |
400 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 9 A | 15.3 A | 100 A | 12 s | 4 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
FRG1000-16FRESETTABLE FUSE - PPTC RADIAL LE |
280 |
|
Datasheet |
Radial, Disc | FRG | Bulk | Active | - | 16V | 10 A | 17 A | 100 A | 12.5 s | 3 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
RXEF010-APPTC RESET FUSE 60V 100MA RADIAL |
33 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.457" (11.60mm) | - | 0.199" (5.05mm) |
|
PTR016V1200-TRPTC RESET FUSE 16V 12A RADIAL |
9,300 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 12 A | 20.4 A | 100 A | 7.5 s | 3 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.689" L x 0.122" W (17.50mm x 3.10mm) | 1.102" (28.00mm) | - | 0.394" (10.00mm) |
PTC Resettable Fuses Electronic Components
Explore PTC Resettable Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
