| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUEF400-1PTC RESET FUSE 30V 4A RADIAL |
362 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 4 A | 8 A | 100 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.760" (19.30mm) | - | 0.199" (5.05mm) |
,-Concave.jpg)
|
0ZCN0150FF2CPTC RESET FUSE 15V 1.5A 2016 |
600 |
|
Datasheet |
2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 15V | 1.5 A | 3 A | 100 A | 800 ms | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.026" (0.65mm) | - |
|
AHRF070PTC RESET FUSE 30V 700MA RADIAL |
472 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 30V | 700 mA | 1.4 A | 40 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.272" L x 0.130" W (6.90mm x 3.30mm) | 0.425" (10.80mm) | - | 0.199" (5.05mm) |
|
AHRF100PTC RESET FUSE 30V 1A RADIAL |
500 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 30V | 1 A | 1.9 A | 40 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.118" T (9.70mm x 3.00mm) | 0.535" (13.60mm) | - | 0.199" (5.05mm) |
|
MINIASMDC260F/12-2PTC RESET FUSE 12V 2.6A 1812 |
347 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Bulk | Active | Polymeric | 12V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.060" (1.52mm) | - |
|
PICOSMDC075S-2PTC RESET FUSE 6V 750MA 0805 |
73 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 100 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.037" (0.93mm) | - |
|
MF-R090-2-9PTC RESET FUSE 60V 900MA RADIAL |
231 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 7.2 s | 140 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.461" L x 0.122" W (11.70mm x 3.10mm) | 0.657" (16.70mm) | - | 0.201" (5.10mm) |
|

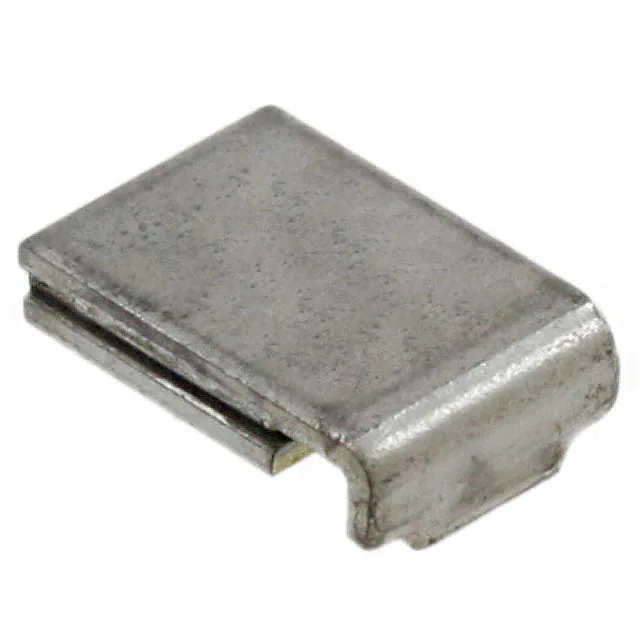

AHS120-2PTC RESET FUSE 16V 1.2A 2SMD |
81 |
|
Datasheet |
2-SMD | PolySwitch®, AHS | Tape & Reel (TR) | Active | Polymeric | 16V | 1.2 A | 2.3 A | 50 A | 2 s | 150 mOhms | 340 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
AGRF1400PTC RESET FUSE 16V 14A RADIAL |
250 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 14 A | 27.3 A | 100 A | 9 s | 2.2 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
|
PICOASMDC050S-2PPTC-MINI-PSW |
990 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch® picoASMDC | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 800 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.037" (0.93mm) | - |
|
|
PICOASMDC020S-2PPTC-MINI-PSW |
873 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch® picoASMDC | Tape & Reel (TR) | Active | Polymeric | 9V | 200 mA | 470 mA | 100 A | 100 ms | 750 mOhms | 3.2 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|

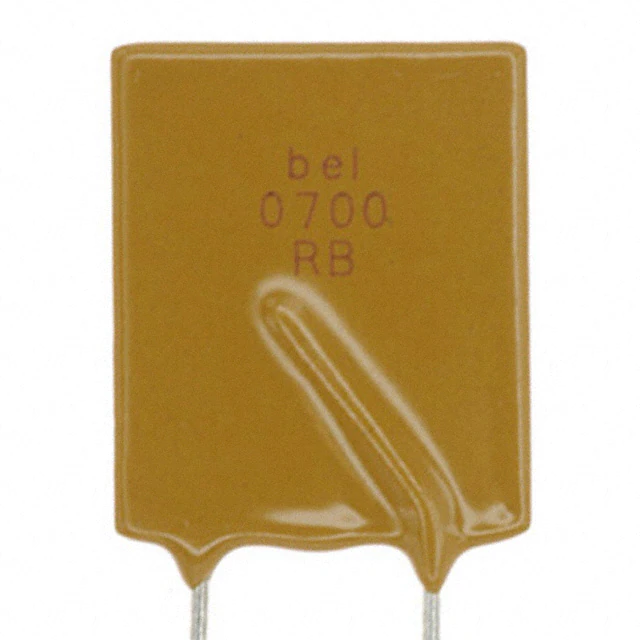

0ZRB0700FF1APTC RESET FUSE 30V 7A RADIAL |
563 |
|
Datasheet |
Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|
TRF250-120TPTC RESET FUSE 60V 120MA RADIAL |
499 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1.2 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
MF-LS100PTC RESET FUSE 24V 1A STRAP |
560 |
|
Datasheet |
Strap | Multifuse®, MF-LS | Bulk | Active | Polymeric | 24V | 1 A | 2.5 A | 100 A | 7 s | 70 mOhms | 260 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.199" W (22.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
|
LVR016S-1PTC RESET FUSE 240V 160MA RADIAL |
490 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 160 mA | 370 mA | 2 A | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.390" Dia x 0.150" T (9.90mm x 3.80mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
TRF250-183UPTC RESET FUSE 100V 183MA RADIAL |
375 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 100V (250V Int) | 183 mA | 685 mA | 10 A | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" Dia x 0.118" T (6.50mm x 3.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
MF-RHT050-0PTC RESET FUSE 30V 500MA RADIAL |
49 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 30V | 500 mA | 920 mA | 40 A | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.118" T (7.40mm x 3.00mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
16R300GPRPTC RESET FUSE 16V 3A RADIAL |
46 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Cut Tape (CT) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
AHS160-2PTC RESET FUSE 16V 1.6A 2SMD |
807 |
|
Datasheet |
2-SMD | PolySwitch®, AHS | Tape & Reel (TR) | Active | Polymeric | 16V | 1.6 A | 3.2 A | 70 A | 15 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
TRF250-110UPTC RESET FUSE 60V 110MA RADIAL |
500 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 110 mA | 220 mA | 3 A | 1.2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.209" Dia x 0.150" T (5.30mm x 3.80mm) | 0.370" (9.40mm) | - | 0.197" (5.00mm) |
