PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMD075F/60-2PTC RESET FUSE 60V 750MA 2SMD |
19,460 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 10 A | 300 ms | 350 mOhms | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.125" (3.18mm) | - |
|
MINISMDC075F/24-2PTC RESET FUSE 24V 750MA 1812 |
12,257 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 40 A | 300 ms | 90 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.057" (1.46mm) | - |
,-Concave.jpg)
|
0ZCN0055FF2APTC RESET FUSE 60V 550MA 2016 |
43,309 |
|
Datasheet |
2016 (5041 Metric), Concave | 0ZCN | Tape & Reel (TR) | Active | Polymeric | 60V | 550 mA | 1.1 A | 100 A | 5 s | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.067" (1.70mm) | - |
|
LVR005NS-2PTC RESET FUSE 240V 50MA RADIAL |
15,706 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Tape & Reel (TR) | Active | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.181" T (6.90mm x 4.60mm) | 0.390" (9.90mm) | - | 0.200" (5.08mm) |
|

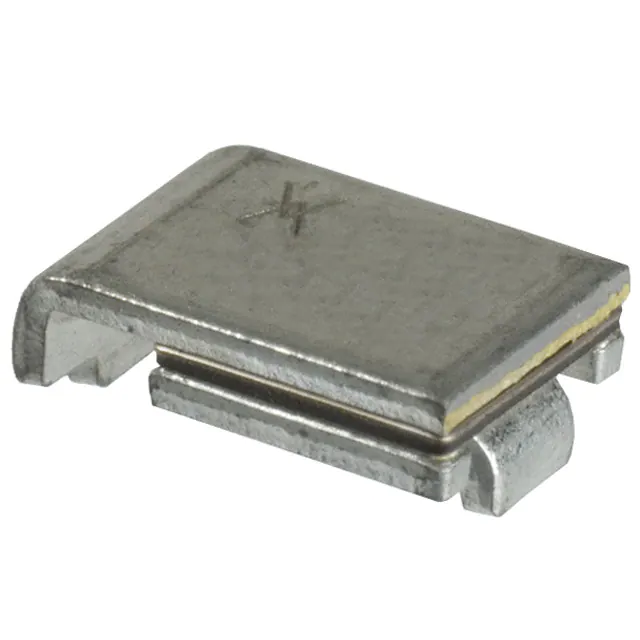

SMD250F-2PTC RESET FUSE 15V 2.5A 2SMD |
8,196 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 15V | 2.5 A | 5 A | 40 A | 25 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
SMD100F/33-2PTC RESET FUSE 33V 1.1A 2SMD |
4,688 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
MF-S200PTC RESET FUSE 30V 2A STRAP |
12,653 |
|
Datasheet |
Strap | Multifuse®, MF-S | Bulk | Active | Polymeric | 30V | 2 A | 4.4 A | 100 A | 4 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
|
SMD300F-2PTC RESET FUSE 6V 3A 2SMD |
8,541 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 40 A | 35 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.118" (3.00mm) | - |
|
|
SMD185F-2PTC RESET FUSE 33V 1.85A 2SMD |
19,843 |
|
Datasheet |
2-SMD | PolySwitch®, SMD | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.6 A | 40 A | 5 s | 65 mOhms | 165 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
2016L050MRPTC RESET FUSE 60V 550MA 2016 |
15,717 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 60V | 550 mA | 1.1 A | 20 A | 5 s | 200 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.079" (2.00mm) | - |
|

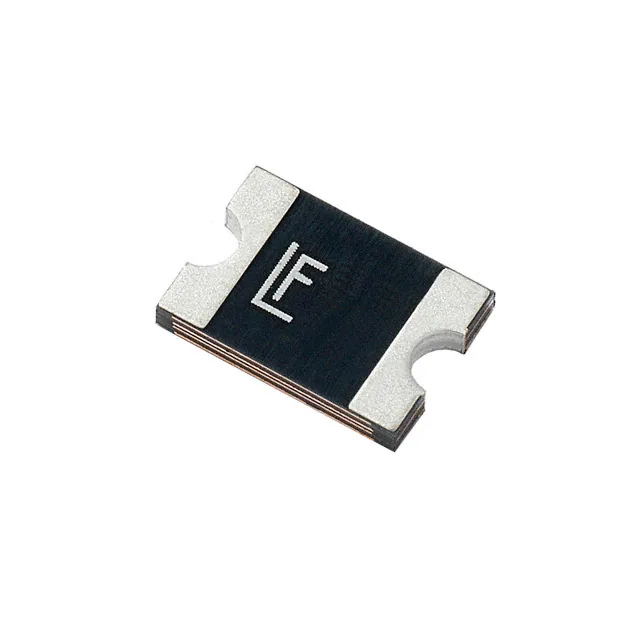

2920L150DRPTC RESET FUSE 33V 1.5A 2920 |
12,750 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 33V | 1.5 A | 3 A | 40 A | 2 s | 80 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
|
2920L030DRPTC RESET FUSE 60V 300MA 2920 |
7,002 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 1.2 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
|
2920L100PRPTC RESET FUSE 33V 1.1A 2920 |
1,769 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
|
LVR005NSPTC RESET FUSE 240V 50MA RADIAL |
10,767 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 50 mA | 120 mA | 1 A | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.272" Dia x 0.181" T (6.90mm x 4.60mm) | 0.390" (9.90mm) | - | 0.200" (5.08mm) |
|
|
2016L260/24MRPTC RESET FUSE 24V 2.6A 2016 |
7,589 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 24V | 2.6 A | 5 A | 40 A | 5 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.063" (1.60mm) | - |
|
|
2016L150/33DRPTC RESET FUSE 33V 1.5A 2016 |
7,541 |
|
Datasheet |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 33V | 1.5 A | 3 A | 40 A | 1 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.063" (1.60mm) | - |
|
1210L035/30WRPTC RESET FUSE 30V 350MA 1210 |
5,053 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 30V | 350 mA | 700 mA | 40 A | 200 ms | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|

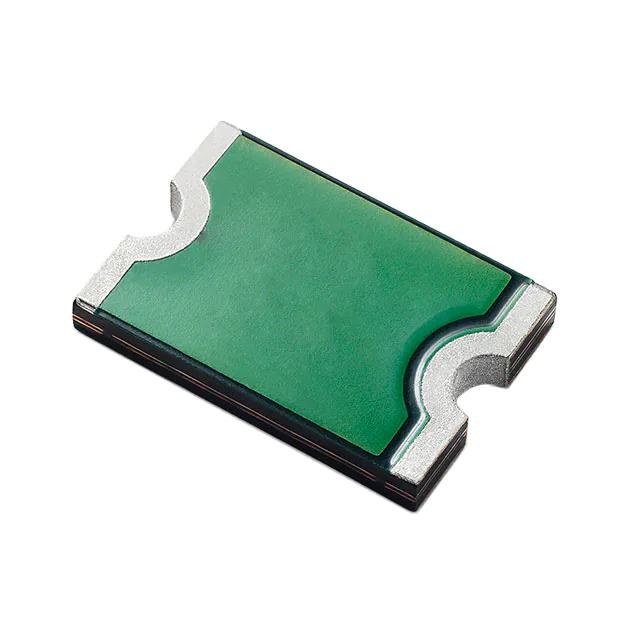

ASMDC125F/33-2PTC RESET FUSE 33V 1.25A 2SMD |
8,077 |
|
Datasheet |
2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 33V | 1.25 A | 2.5 A | 40 A | 2 s | 40 mOhms | 250 mOhms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.028" (0.71mm) | - |
|
PICOSMDC035S-2PTC RESET FUSE 6V 350MA 0805 |
25,536 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch®, picoSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 750 mA | 100 A | 200 ms | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.055" W (2.10mm x 1.40mm) | - | 0.027" (0.68mm) | - |
|

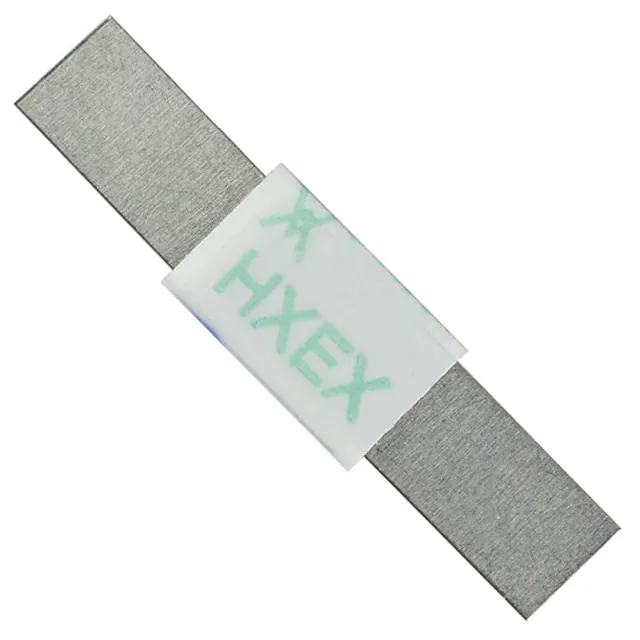

SRP120FPTC RESET FUSE 15V 1.2A STRAP |
12,795 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 15V | 1.2 A | 2.7 A | 100 A | 5 s | 85 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.827" L x 0.199" W (21.00mm x 5.05mm) | - | 0.039" (1.00mm) | - |
