Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLX90825GXP-DAD-302-SPRELATIVE PRESSURE SENSOR WITH SE |
10 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | 7.25PSI (50kPa) | SENT | 12 b | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
MLX90825GXP-DAD-300-SPRELATIVE PRESSURE SENSOR WITH SE |
10 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | 2.9PSI ~ 11.6PSI (20kPa ~ 80kPa) | SENT | 12 b | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
MLX90823GXP-BAD-306-SPRELATIVE PRESSURE SENSOR WITH AN |
9 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | -14.5PSI ~ 0PSI (-100kPa ~ 0kPa) | Analog Voltage | 0.5 V ~ 5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
MLX90823GXP-BAD-301-SPRELATIVE PRESSURE SENSOR WITH AN |
7 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | -2.9PSI ~ 7.25PSI (-20kPa ~ 50kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
MLX90823GXP-BAF-305-SPRELATIVE PRESSURE SENSOR WITH AN |
7 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | -0.25PSI ~ 5PSI (-1.7kPa ~ 34.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
MLX90825GXP-DAD-500-SPRELATIVE PRESSURE SENSOR WITH SE |
10 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | 2.9PSI ~ 11.6PSI (20kPa ~ 80kPa) | SENT | 12 b | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
MLX90825GXP-DAD-400-SPRELATIVE PRESSURE SENSOR WITH SE |
10 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | 2.9PSI ~ 11.6PSI (20kPa ~ 80kPa) | SENT | 12 b | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
MLX90823GXP-BAD-308-SPRELATIVE PRESSURE SENSOR WITH AN |
7 |
|
Datasheet |
- | 4-SIP Module | Bag | Active | Board Mount | Differential | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | - | 72.52PSI (500kPa) | -40°C ~ 160°C | - | - | Through Hole | SMP-4 |
|
|
ABPLNNV100PG2T3SENSOR 100PSIG 12BIT |
100 |
|
Datasheet |
ABP | - | Bulk | Active | Medical Ventilation | Gauge | 100PSI (689.48kPa) | I2C | 12 b | ±0.25% | 3V ~ 4.75V | - | - | Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | - | - |
|
|
EPS01-BR-G1/8-N-10-NC-AGPRESSURE SWITCH |
6 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ABPDANN030PG0D3BASIC PRESSURE SENSOR |
100 |
|
Datasheet |
ABP | 6-DIP (0.453", 11.50mm), Top Port | Tray | Active | Medical Ventilation | Gauge | 30PSI (206.84kPa) | I2C | 12b | ±0.25% | 3V ~ 3.6V | Male - 0.108" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pins | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
P-2000-702G-15-BNSENSOR 99.5PSIG 0.13" .09V 6DIP |
18 |
|
Datasheet |
P-2000 | 6-DIP (0.472", 12.00mm), Top Port | Bulk | Active | Board Mount | Gauge | 99.5PSI (686kPa) | Analog Voltage | 0 mV ~ 90 mV | ±0.15% | - | Male - 0.13" (3.2mm) Tube | Barbless | Temperature Compensated | PC Pin | 199.14PSI (1373kPa) | -20°C ~ 80°C | - | - | Through Hole | 6-DIP |
|
|
ABPDJJT001PDSA3BASIC PRESSURE SENSOR |
99 |
|
Datasheet |
ABP | 6-DIP (0.453", 11.50mm), Dual Ports, Same Side | Tray | Active | Medical Ventilation | Differential | ±1PSI (±6.89kPa) | SPI | 12b | ±0.25% | 3V ~ 3.6V | Male - 0.07" (1.78mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pins | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
ABPDRRN400MGAA5BASIC PRESSURE SENSOR |
100 |
|
Datasheet |
ABP | 6-DIP (0.453", 11.50mm), Dual Ports, Same Side | Tray | Active | Medical Ventilation | Gauge | 5.8PSI (40kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.059" (1.5mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pins | 145.04PSI (1000kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
20021491-00LMIS250UB3S; PRES;0...250PA;I2C; |
0 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VN150AABS PRESSURE 80 TO 150 PSI |
58 |
|
Datasheet |
VN | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 80PSI ~ 150PSI (551.58kPa ~ 1034.21kPa) | I2C, SPI | 24 b | ±0.05% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
VN150DABS PRESSURE +/-80 TO 150 PSI |
26 |
|
Datasheet |
VN | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | ±80PSI ~ ±150PSI (±551.58kPa ~ ±1034.21kPa) | I2C, SPI | 24 b | ±0.05% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
SM5391-BCE-S-001.00-1311 PSI DIFFERENTIAL SENSOR |
27 |
|
- |
SM5391 | 16-SOIC (0.295", 7.50mm Width), Dual Top Ports | Tube | Active | Board Mount | Differential | 2.5PSI (17.24kPa) | I2C | 16 b | ±1.5% | 3.3V ~ 5V | Male - 0.12" (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 12PSI (82.74kPa) | -40°C ~ 105°C | - | - | Surface Mount | 16-SOIC |
|
|
SM6291-BCE-S-030.00-23130MBAR GAUGE SENSOR |
38 |
|
- |
SM6291 | 16-SOIC (0.295", 7.50mm Width), Dual Top Ports | Bulk | Active | Medical Ventilation | Gauge | 1.99PSI (13.73kPa) | I2C | 16 b | ±1% | 4.75V ~ 5.25V | Male - 1/2" (12.7mm) G | Barbless | Temperature Compensated | Gull Wing | 12.09PSI (83.36kPa) | -40°C ~ 105°C | - | - | Surface Mount | 16-SOIC |
|

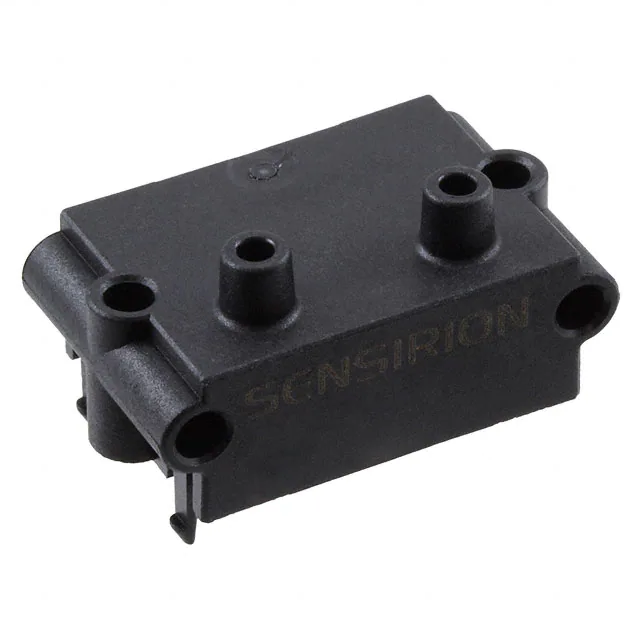

SDP806-500PASENSOR 0.07PSID 0.2" 4.5V |
35 |
|
Datasheet |
SDP800 | Module | Tray | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 3V ~ 5.5V | Male - 0.2" (5.2mm) Tube, Dual | Barbless | Temperature Compensated | - | 14.5PSI (100kPa) | -20°C ~ 85°C | - | - | - | - |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
