Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20 INCH-D1-P4V-MINISENSOR 0.72PSID 0.08" 4.25V |
5 |
|
Datasheet |
MAMP | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±0.72PSI (±4.96kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
DLLR-L30D-E1BD-C-NAV7SENSOR 1.08PSID 0.09" 17BIT 8DIP |
8 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±1.08PSI (±7.47kPa) | I2C, SPI | 17b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLLR-L30G-E1BD-C-NAV6SENSOR 1.08PSID 0.09" 16BIT 8DIP |
7 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 16b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

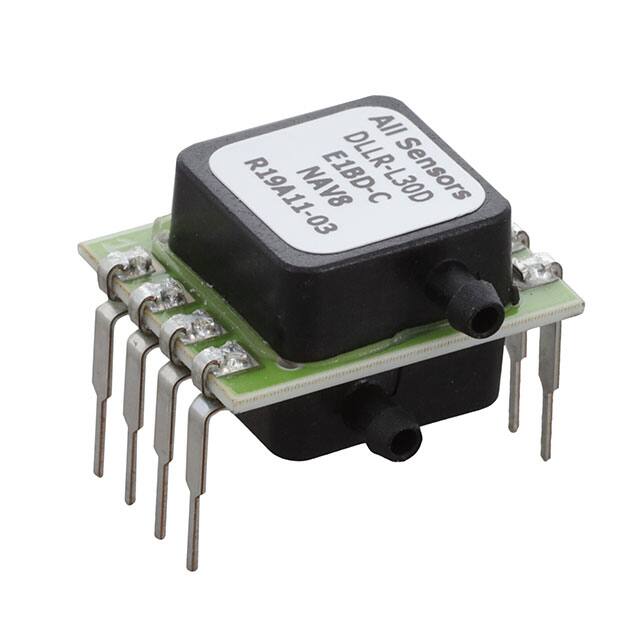

DLLR-L30G-E1BD-C-NAV8SENSOR 1.08PSID 0.09" 18BIT 8DIP |
4 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 18b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

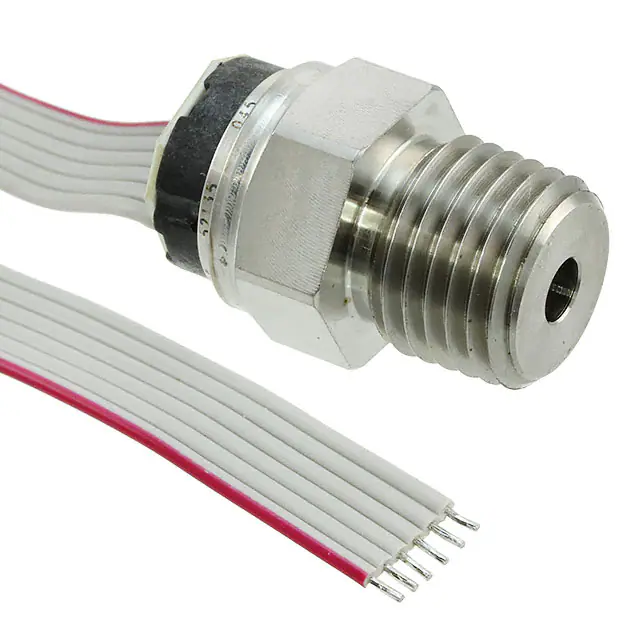

85-030G-4RSENSOR 30PSIG 0.1V |
8 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
DLHR-L10G-E1BD-C-NAV8SENSOR 0.36PSID 0.09" 18BIT 8DIP |
10 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | ±0.36PSI (±2.5kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLHR-L60G-E1BD-C-NAV8SENSOR 2.17PSID 0.09" 18BIT 8DIP |
8 |
|
Datasheet |
DLHR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential/Vented Gauge | 2.17PSI (15kPa) | I2C, SPI | 18b | ±0.25% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
85-030G-5RSENSOR 30PSIG 0.1V |
1 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
154BC-S-028BA-CSENSOR 406.11PSIA 0.1V |
10 |
|
Datasheet |
- | Module | Tube | Active | Board Mount | Absolute | 406.11PSI (2800kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 812.21PSI (5600kPa) | -40°C ~ 125°C | - | - | - | - |
|
4515DO-DS3BK004DPSENSOR 0.15PSID 0.14" 14BIT |
9 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Differential | 0.15PSI (1kPa) | I2C | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|

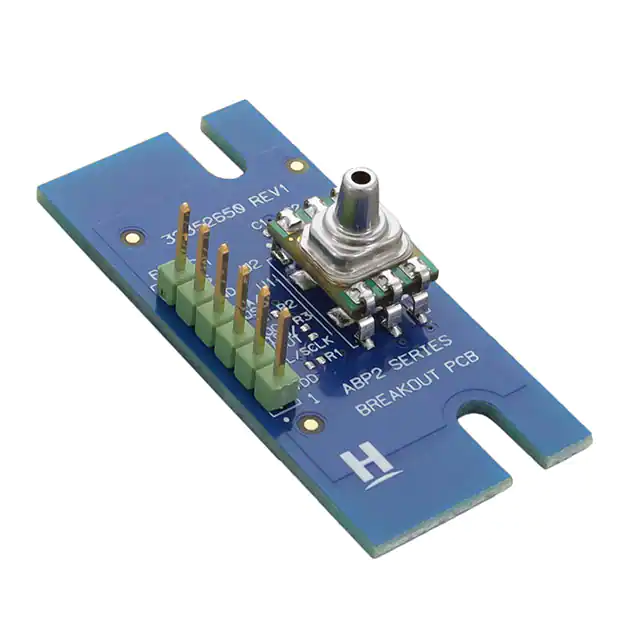

ABP2MVNT400MG2A3BBSENSOR 5.8PSIG 0.106" 14BIT 6SMD |
2 |
|
- |
ABP2 | 6-SMD, J-Lead, Top Port | Box | Active | Medical Ventilation | Gauge | 5.8PSI (40kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.106" (2.69mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 29.01PSI (200kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
FMA-500-T1-40W-GVSENSOR 1.45PSI 1/8"NPT 4.5V |
12 |
|
Datasheet |
FMA | Module | Bulk | Active | Board Mount | Vacuum | 1.45PSI (10kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±2.5% | 4.75V ~ 5.25V | Female - 1/8" (3.18mm) NPT | Barbless | Amplified Output, Temperature Compensated | Connector | 2.89PSI (20kPa) | -40°C ~ 125°C | - | - | - | - |
|

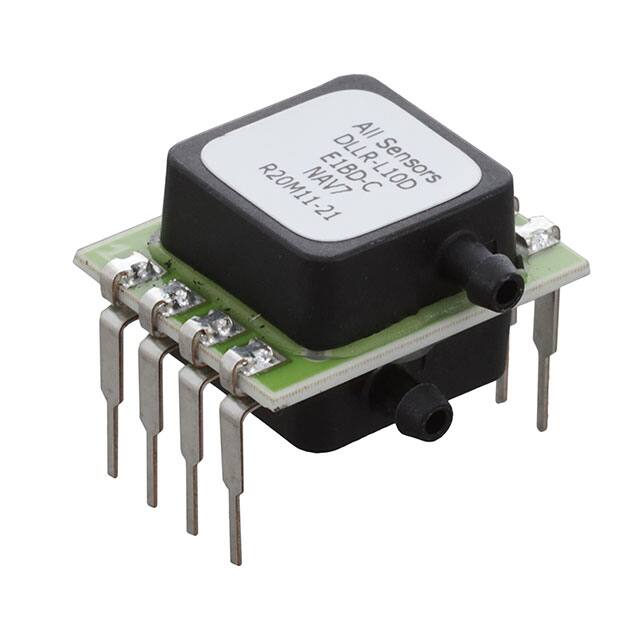

DLLR-L10D-E1BD-C-NAV7SENSOR 0.36PSID 0.09" 17BIT 8DIP |
6 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±0.36PSI (±2.49kPa) | I2C, SPI | 17b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
DLLR-L30G-E1BD-C-NAV7SENSOR 1.08PSID 0.09" 17BIT 8DIP |
2 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential/Vented Gauge | 1.08PSI (7.48kPa) | I2C, SPI | 17b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
PS02-G250KP-4WSENSOR 36.26PSIG |
17 |
|
Datasheet |
PS02 | Module | Box | Active | - | Gauge | 36.26PSI (250kPa) | I2C | - | ±0.5% | 3.1V ~ 3.6V | - | No Port | Temperature Compensated | Wire Leads | 72.52PSI (500kPa) | -40°C ~ 105°C | - | - | - | - |
|
PS01-S160MP-3WSENSOR 232.06PSIS 4.5V |
11 |
|
Datasheet |
PS01 | Module | Box | Active | - | Sealed Gauge | 232.06PSI (1600kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 464.12PSI (3200kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-G250MP-3WSENSOR 362.59PSIG 4.5V |
10 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 362.59PSI (2500kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 725.19PSI (5000kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-G250KP-3WSENSOR 36.26PSIG 4.5V |
10 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 72.52PSI (500kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-S250MP-3WSENSOR 362.59PSIS 4.5V |
10 |
|
Datasheet |
PS01 | Module | Box | Active | - | Sealed Gauge | 362.59PSI (2500kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 725.19PSI (5000kPa) | -40°C ~ 105°C | - | - | - | - |
|
|
PS01-G160MP-3WSENSOR 232.06PSIG 4.5V |
9 |
|
Datasheet |
PS01 | Module | Box | Active | - | Gauge | 232.06PSI (1600kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 4.5V ~ 5.5V | - | No Port | Temperature Compensated | Wire Leads | 464.12PSI (3200kPa) | -40°C ~ 105°C | - | - | - | - |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
