Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS08-G250KP-6PSENSOR 36.26PSIG .15V |
10 |
|
Datasheet |
PS08 | Module | Box | Active | - | Gauge | 36.26PSI (250kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 72.52PSI (500kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS08-G100KP-6PSENSOR 14.5PSIG .15V |
9 |
|
Datasheet |
PS08 | Module | Box | Active | - | Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | - | - |
|
NPI-19A-021GH (1.5 MA)SENSOR 2.5PSIG .125V |
36 |
|
Datasheet |
NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 2.5PSI (17.24kPa) | Wheatstone Bridge | 0 mV ~ 125 mV | ±0.5% | - | - | No Port | Temperature Compensated | Flex Cable | 7.5PSI (51.71kPa) | -10°C ~ 80°C | - | - | - | - |
|
ABP2LANT001PG2A3BBSENSOR 1PSIG 0.07" 14BIT 6SMT |
15 |
|
- |
ABP2 | 6-SMD, No Lead, Top Port | Box | Active | Medical Ventilation | Gauge | 1PSI (6.89kPa) | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.07" (1.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 33.33PSI (229.83kPa) | -40°C ~ 110°C | - | - | Surface Mount | 6-SMT |
|
86-015G-RTSENSOR 15PSIG 0.1V |
2 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
DLLR-L10D-E1BD-C-NAV6SENSOR 0.36PSID 0.09" 16BIT 8DIP |
72 |
|
Datasheet |
DLLR | 8-DIP (0.620", 15.75mm), Dual Ports, Same Side | Bulk | Active | - | Differential | ±0.36PSI (±2.49kPa) | I2C, SPI | 16b | ±0.1% | 1.68V ~ 3.6V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3.63PSI (25kPa) | -25°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
4515DO-DS3BK005GPSENSOR 0.18PSIG 0.14" 14BIT |
20 |
|
Datasheet |
- | 8-DIP Module | Tray | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | I2C | 14 b | ±0.25% | 3.3V | Male - 0.14" (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C | - | - | Through Hole | - |
|
|
4515-DS3A030DP30IN DP PRESSURE SENSOR 10% TO 9 |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SSCMRRN100MDSA3SENSOR 1.45PSID 0.08" 12BIT 8SMT |
84 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1.45PSI (±10kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±20.31PSI (±140kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
BPS130-HA100P-1MGSENSOR 100PSIA 4.95V |
50 |
|
Datasheet |
BPS130 | - | Tape & Reel (TR) | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | - | No Port | - | Solder Pad | 200PSI (1378.95kPa) | -40°C ~ 150°C | - | - | - | - |
|
|
BPS130-HG100P-3SSENSOR 100PSIG 0.122" 4.95V |
12 |
|
Datasheet |
BPS130 | 3-SIP Module | Tray | Active | Board Mount | Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | PC Pin | 200PSI (1378.95kPa) | -40°C ~ 150°C | - | - | Through Hole | - |
|
M323M-00000P-017BGSENSOR 246.56PSIG 7/16" 4.5V |
37 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 246.56PSI (1700kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 493PSI (3400kPa) | -40°C ~ 125°C | - | - | - | - |
|

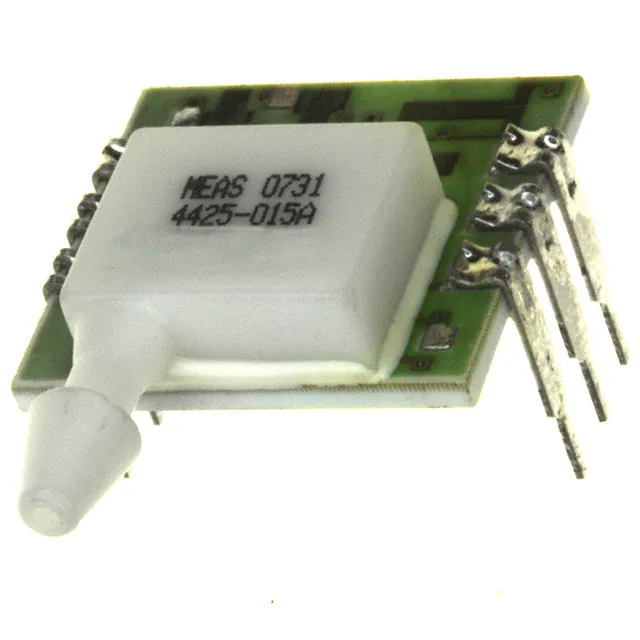

4425-015ASENSOR 15PSIA 0.13" .09V |
98 |
|
Datasheet |
4425 | 6-DIP Module | Tray | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.15% | 12V ~ 20V | Male - 0.13" (3.4mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
LER00600TBMNUBAA01SENSOR 60PSIG SPST-NC 1/8"NPT |
55 |
|
Datasheet |
LE | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 60PSI (413.69kPa) | SPST-NC | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 120°C | - | - | - | - |
|
MIPAF1XX667PSAAXSENSOR 667PSIS 7/16" 4.5V |
63 |
|
Datasheet |
MIP | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 667PSI (4598.8kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.15% | 4.75V ~ 5.25V | Female - 7/16" (11.11mm) UNF Schrader | Threaded | Temperature Compensated | Connector | 1740.45PSI (12000kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS05-A10MP-5WSENSOR 145.04PSIA .15V |
20 |
|
Datasheet |
PS05 | Module | Box | Active | - | Absolute | 145.04PSI (1000kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | Wire Leads | 290.08PSI (2000kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS04-G100KP-V4WSENSOR 14.5PSIG .12V |
15 |
|
Datasheet |
PS04 | Module | Box | Active | - | Gauge | 14.5PSI (100kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS08-G20KP-6PSENSOR 2.9PSIG .15V |
15 |
|
Datasheet |
PS08 | Module | Box | Active | - | Gauge | 2.9PSI (20kPa) | Wheatstone Bridge | 40 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | - | - |
|
PS03-S1000MP-V4WSENSOR 14503.77PSIS .12V |
15 |
|
Datasheet |
PS03 | Module | Box | Active | - | Sealed Gauge | 14503.77PSI (100000kPa) | Wheatstone Bridge | 80 mV ~ 120 mV | - | 10V ~ 15V | - | No Port | Temperature Compensated | Wire Leads | 21756PSI (150000kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PS04-G10KP-A4WSENSOR 1.45PSIG .15V |
13 |
|
Datasheet |
PS04 | Module | Box | Active | - | Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 60 mV ~ 150 mV | - | - | - | No Port | Temperature Compensated | Wire Leads | 2.89PSI (20kPa) | -40°C ~ 125°C | - | - | - | - |
