Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

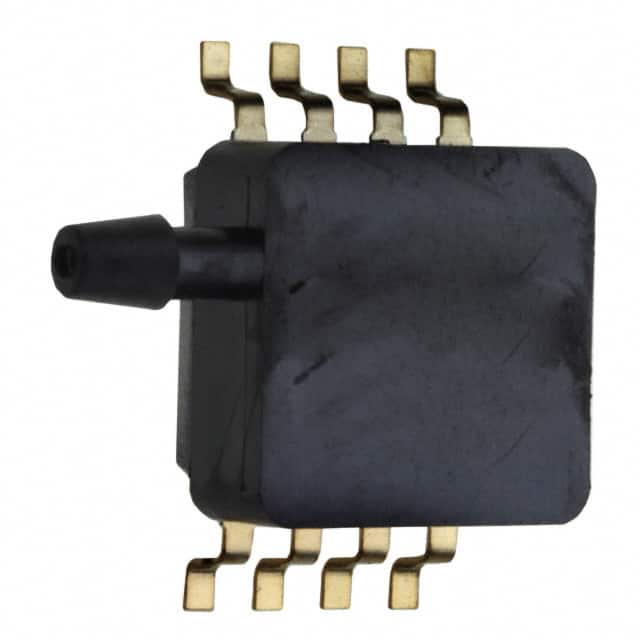

MPXAZ6115APSENSOR 16.68PSIA 0.13" 4.7V 8SOP |
326 |
|
Datasheet |
MPXAZ6115A | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|
MPXAZ6115AC6T1SENSOR 16.68PSIA 0.13" 4.7V |
1,333 |
|
Datasheet |
MPXAZ6115A | 8-SMD, Gull Wing, Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXV7002GPSENSOR 0.29PSIC 0.13" 4.5V 8SOP |
1,293 |
|
Datasheet |
MPXV7002 | 8-SMD, Gull Wing, Side Port | Tray | Active | Board Mount | Compound | ±0.29PSI (±2kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbed | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | 10°C ~ 60°C | - | - | Surface Mount | 8-SOP |
|
|
MPXV7002GC6USENSOR 0.29PSIC 0.13" 4.5V |
1,060 |
|
Datasheet |
MPXV7002 | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Compound | ±0.29PSI (±2kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | 10°C ~ 60°C | - | - | Surface Mount | - |
|
MPXV4006DPSENSOR 0.87PSID 0.13" 4.7V 8SOP |
2,017 |
|
Datasheet |
MPXV4006G | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Active | Board Mount | Differential | 0.87PSI (6kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 3.48PSI (24kPa) | -10°C ~ 60°C | - | - | Surface Mount | 8-SOP |
|
MPX5100DPSENSOR 14.5PSID 0.19" 4.7V |
1,800 |
|
Datasheet |
MPX5100 | 6-SIP Module | Tray | Active | Board Mount | Differential | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX5010GPSENSOR 1.45PSIG 0.19" 4.7V |
1,589 |
|
Datasheet |
MPX5010 | 6-SIP Module | Tray | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPX5100GPSENSOR 14.5PSIG 0.19" 4.7V |
1,069 |
|
Datasheet |
MPX5100 | 6-SIP Module | Tray | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPX5700APSENSOR 101.53PSIA 0.19" 4.7V |
866 |
|
Datasheet |
MPX5700 | 6-SIP Module | Tray | Active | Board Mount | Absolute | 2.18PSI ~ 101.53PSI (15kPa ~ 700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX5700DSENSOR 101.53PSID 4.7V |
117 |
|
Datasheet |
MPX5700 | 6-SIP Module | Tray | Active | Board Mount | Differential | 101.53PSI (700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
MPX5050DPSENSOR 7.25PSID 0.19" 4.7V |
2,071 |
|
Datasheet |
MPX5050 | 6-SIP Module | Tray | Active | Board Mount | Differential | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPXA4115A6USENSOR 16.68PSIA 4.8V |
1,808 |
|
Datasheet |
MPXA4115A | 8-SMD Module | Tube | Not For New Designs | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXV7007GC6USENSOR 1.02PSIC 0.13" 4.5V |
14,109 |
|
- |
MPXV7007 | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Compound | ±1.02PSI (±7kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXV7025GC6USENSOR 3.63PSIC 0.13" 4.7V |
3,604 |
|
Datasheet |
MPXV7025 | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Compound | ±3.63PSI (±25kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±29.01PSI (±200kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
ABP2DANT150PGSA3XXSENSOR 150PSIG 0.108" 14BIT 6DIP |
433 |
|
- |
ABP2 | 6-DIP (0.453", 11.50mm), Top Port | Box | Active | - | Gauge | 150PSI (1034.21kPa) | SPI | 14 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.108" (2.74mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 240PSI (1654.74kPa) | -40°C ~ 110°C | - | - | Through Hole | 6-DIP |
|
ABP2MRRT060MD2A3XXSENSOR 14BIT 6SMD |
346 |
|
- |
ABP2 | 6-SMD, J-Lead, Dual Ports, Same Side | Tube | Active | - | Vented Gauge | - | I2C | 14 b | ±0.25% | 1.8V ~ 3.6V | - | - | Amplified Output, Temperature Compensated | J Lead | - | -40°C ~ 110°C | - | - | Surface Mount | 6-SMD |
|
|
MPX5700GPSENSOR 101.53PSIG 0.19" 4.7V |
3,060 |
|
Datasheet |
MPX5700 | 6-SIP Module | Tray | Active | Board Mount | Vented Gauge | 101.53PSI (700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
ABPLLNT010BGAA5SENSOR 145.04PSIG 0.11" 4.5V SMD |
499 |
|
Datasheet |
ABP | 6-SMD Module, No Lead | Tube | Active | Medical Ventilation | Vented Gauge | 145.04PSI (1000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.11" (2.67mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Surface Mount | 6-SMD |
|
|
MPXV4115VC6USENSOR 16.68PSI 0.13" 4.6V |
1,405 |
|
Datasheet |
MPXV4115V | 8-SMD, Gull Wing, Top Port | Tube | Not For New Designs | Board Mount | Vacuum | -16.68PSI (-115kPa) | Analog Voltage | 0.2 V ~ 4.6 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | -58.02PSI (-400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MPXA6115AC6USENSOR 16.68PSIA 0.13" 4.7V |
447 |
|
Datasheet |
MPXA6115A | 8-SMD, Gull Wing, Top Port | Tube | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
