Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19C100PG5KSENSOR 100PSIG 1/4"NPT 0.1V |
0 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Obsolete | - | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|

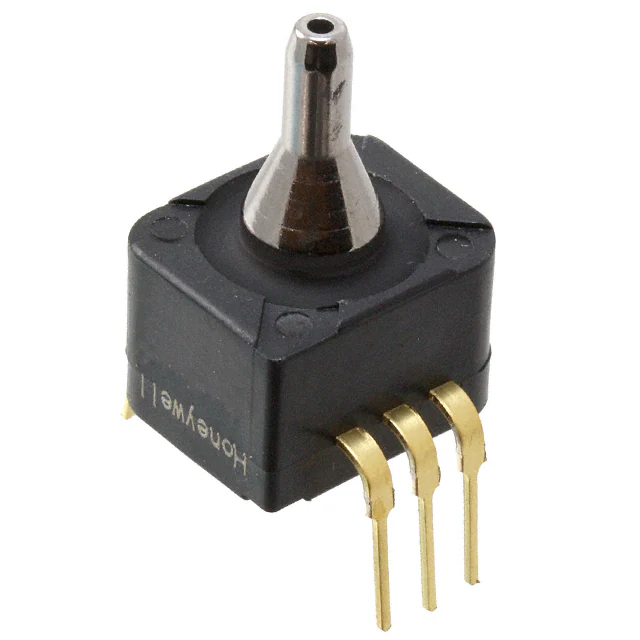

40PC250G2ASENSOR 250PSIG 0.18" 4.5V |
0 |
|
Datasheet |
40PC | 6-DIP Module | Bulk | Active | Board Mount | Vented Gauge | 250PSI (1723.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 500PSI (3447.38kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|
|
19C030PA1LSENSOR 30PSIA 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PA1KSENSOR 100PSIA 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
1230-L1222-W100GPRESSURE SENSOR |
42 |
|
- |
1230 | - | Bulk | Obsolete | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
19C100PV1KSENSOR 100PSI 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Vacuum | -100PSI (-689.48kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | -300PSI (-2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C030PA6LSENSOR 30PSIA 7/16" 0.1V |
0 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 7/16" (11.11mm) UNF | Threaded | Temperature Compensated | Flex Cable | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C005PG4KSENSOR 5PSIG 1/8"NPT .05V |
0 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0 mV ~ 50 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C005PG1KSENSOR 5PSIG 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PA5LSENSOR 100PSIA 1/4"NPT 0.1V |
0 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C100PA1LSENSOR 100PSIA 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Absolute | 100PSI (689.48kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | Cell w/Body O-Ring | No Port | Temperature Compensated | Flex Cable | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PA2LSENSOR 200PSIA 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Absolute | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C200PG5KSENSOR 200PSIG 1/4"NPT 0.1V |
0 |
|
- |
19 mm | Cylinder, Threaded | Bulk | Active | - | Vented Gauge | 200PSI (1378.95kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Flex Cable | 600PSI (4136.85kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
13C2000PA1KSENSOR 2000PSIA .102V |
0 |
|
- |
13 mm | Cylinder, Threaded | Bulk | Active | - | Absolute | 2000PSI (13789.51kPa) | Wheatstone Bridge | 98 mV ~ 102 mV | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 6000PSI (41368.54kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
19C050PA2LSENSOR 50PSIA 0.1V |
0 |
|
- |
19 mm | Cylinder | Bulk | Active | - | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|

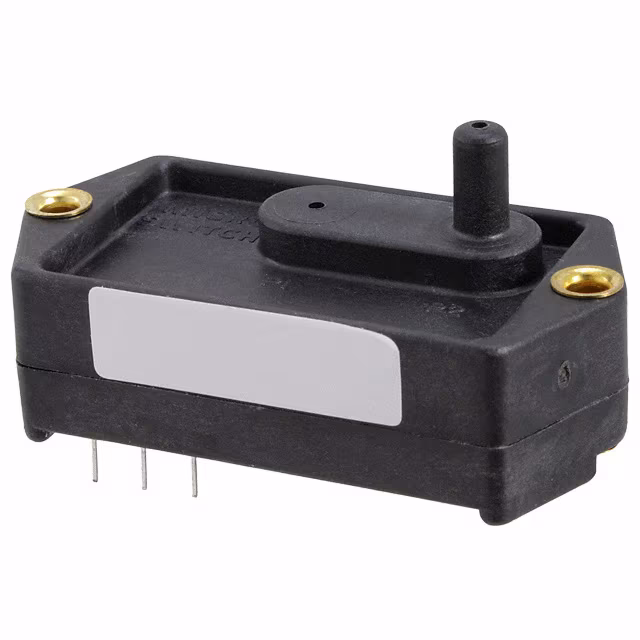

141PC15GSENSOR 15PSI 0.2" 6V |
0 |
|
Datasheet |
140PC | 3-SIP Module | Bulk | Active | Board Mount | Vacuum | -15PSI (-103.42kPa) | Analog Voltage | 1 V ~ 6 V | ±0.4% | 7V ~ 16V | Male - 0.2" (5mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | -45PSI (-310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
13C5000PS1KSENSOR 5000PSIS .152V |
0 |
|
- |
13 mm | Cylinder, Threaded | Bulk | Active | - | Sealed Gauge | 5000PSI (34473.79kPa) | Wheatstone Bridge | 148 mV ~ 152 mV | ±0.25% | 15V | - | No Port | Temperature Compensated | Flex Cable | 10000PSI (68947.57kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
PT40-5000PSIG-1-1-2-25High Accuracy Fixed Range Pressu |
35 |
|
Datasheet |
PT40 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 5000PSI (34473.79kPa) | Analog Current | 4 ~ 20 mA | ±0.25% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 10000PSI (68947.57kPa) | -20°C ~ 80°C | - | - | - | - |
|
SCX15DNSENSOR 15PSID 0.19" .09V |
0 |
|
Datasheet |
SCX | 6-SIP Module | Bulk | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 20V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
SCX01DNSENSOR 1PSID 0.19" .018V |
0 |
|
Datasheet |
SCX | 6-SIP Module | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±1% | 20V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
