Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPXAZ4115AC6USENSOR 16.68PSIA 0.13" 4.8V |
0 |
|
Datasheet |
MPXAZ4115A | 8-SMD, Gull Wing, Top Port | Tube | Obsolete | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.85V ~ 5.35V | Male - 0.13" (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
SX150DNSENSOR 100PSID 0.19" .11V |
0 |
|
Datasheet |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | - | - | 200PSI (1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
MPX4100APSENSOR 15.23PSIA 0.19" 4.9V |
0 |
|
Datasheet |
MPX4100A | 6-SIP Module | Tray | Obsolete | Board Mount | Absolute | 2.9PSI ~ 15.23PSI (20kPa ~ 105kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.8% | 4.85V ~ 5.35V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPX5050DSENSOR 7.25PSID 4.7V |
0 |
|
Datasheet |
MPX5050 | 6-SIP Module | Tray | Obsolete | Board Mount | Differential | 7.25PSI (50kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
D8M-R1SENSOR 0.03PSIG 0.16" |
0 |
|
Datasheet |
- | Module | Bulk | Obsolete | Board Mount | Vented Gauge | 0.03PSI (0.2kPa) | Frequency | - | ±2% | 4.2V ~ 5.5V | Male - 0.16" (4.06mm) Tube | Barbless | - | Cable | 0.44PSI (3kPa) | -20°C ~ 70°C | - | - | - | - |
|
|
1230-100G-3LSENS PRESS 100 PSI 8 PIN DIPAWG |
0 |
|
Datasheet |
1230 | 8-DIP Module | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | PCB | - | - | - | - | Through Hole | - |
|
MPX2202APSENSOR 29.01PSIA 0.19" .04V |
0 |
|
Datasheet |
MPX2202 | 4-SIP Module | Tray | Obsolete | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
SCC100DSENSOR 100PSID .225V BUTTON |
0 |
|
- |
SCC | 5-DIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 85 mV ~ 225 mV | ±0.5% | - | - | No Port | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | Button |
|
SCC100DNSENSOR 100PSID 0.19" .225V |
0 |
|
- |
SCC | 5-DIP Module | Bulk | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 85 mV ~ 225 mV | ±0.5% | - | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SX100GSMTSENSOR 100PSIG .15V |
0 |
|
- |
SX SMT | 8-SMD Module | Tube | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.5% | 12V | - | No Port | - | SMD (SMT) Tab | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
SX30ANSENSOR 30PSIA 0.19" .11V |
0 |
|
Datasheet |
- | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 110 mV (5V) | ±0.5% | 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | - | - | 90PSI (620.53kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
ADP1101SENSOR 0.71PSIG 0.12" .04V |
0 |
|
Datasheet |
PF | 6-DIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 0.71PSI (4.9kPa) | Wheatstone Bridge | 0 mV ~ 40 mV | ±0.7% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 1.42PSI (9.8kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ADP1221SENSOR 4.97PSIG 0.12" 0.1V |
0 |
|
Datasheet |
PF | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 4.97PSI (34.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | 5V | Male - 0.12" (3mm) Tube | Barbless | Temperature Compensated | PC Pin | 9.95PSI (68.6kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
ADP41210SENSOR 4.97PSIG 0.1" 0.1V |
0 |
|
Datasheet |
PS | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 4.97PSI (34.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 9.95PSI (68.6kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42210SENSOR 4.97PSIG 0.1" 0.1V |
0 |
|
Datasheet |
PS | 6-DIP Module | Box | Obsolete | Board Mount | Vented Gauge | 4.97PSI (34.3kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 9.95PSI (68.6kPa) | -20°C ~ 100°C | - | - | Through Hole | - |
|
|
ADP42A23SENSOR 5.8PSIG 0.1" 0.1V |
0 |
|
Datasheet |
PS | 6-DIP Module | Tube | Obsolete | Board Mount | Vented Gauge | 5.8PSI (40kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | Male - 0.1" (2.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 11.6PSI (80kPa) | -5°C ~ 50°C | - | - | Through Hole | - |
|
1240-030A-1NSENSOR 30PSIA .05V |
0 |
|
Datasheet |
1240 | 8-DIP Module | Bulk | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±0.1% | 1.235V | - | No Port | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
DUXL30DSENSOR 1.08PSID 0.08" .03V |
0 |
|
- |
DUXL | 4-SIP Module | Tube | Obsolete | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 30 mV (4.5V) | ±0.5% | 3V ~ 8V | Male - 0.08" (2.03mm) Tube, Dual | Barbed | - | PC Pin | 10.84PSI (74.75kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
SX15ASMTSENSOR 15PSIA 0.08" .1125V |
0 |
|
- |
SX SMT | 8-SMD Module | - | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 112.5 mV (5V) | ±0.05% | 12V | Male - 0.08" (2.05mm) Tube | Barbless | - | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|

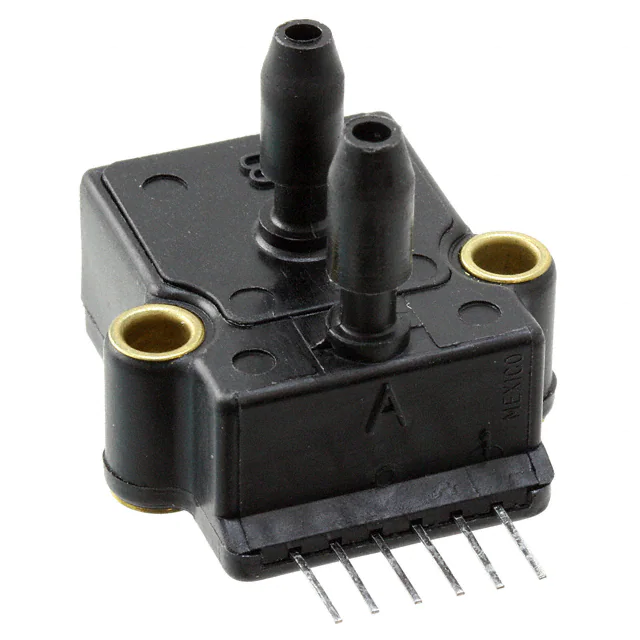

SCX05DNCSENSOR 5PSID 0.19" .06V |
0 |
|
Datasheet |
SCX | 6-SIP Module | Bulk | Active | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.05% | 20V | Male - 0.19" (4.8mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
