Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
85-030A-0RSENSOR 30PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-005A-CSENSOR 5PSIA 0.1V |
0 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Absolute | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|
86-005G-RSENSOR 5PSIG 0.1V |
0 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|
50087923-04PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

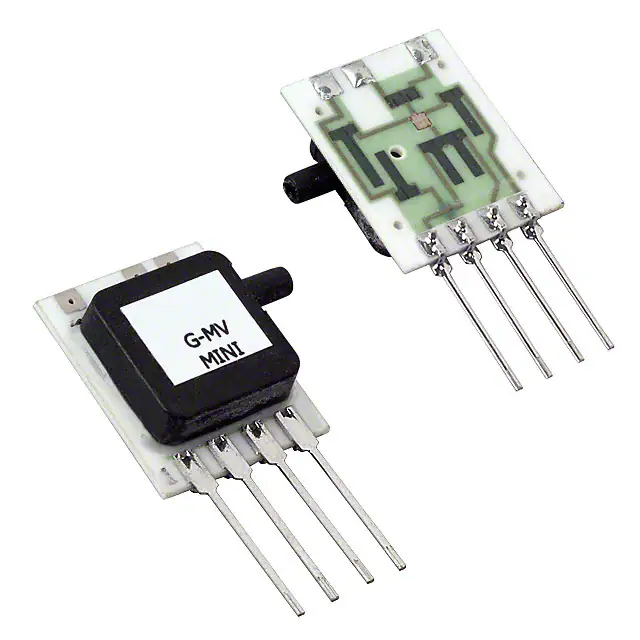

5 INCH-G-MV-MINISENSOR 0.18PSIG 0.08" .02V |
0 |
|
Datasheet |
MDCX | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
2 INCH-G-MV-MINISENSOR 0.07PSIG 0.08" .01V |
0 |
|
Datasheet |
MDCX | 4-SIP Module | Bulk | Active | Board Mount | Vented Gauge | 0.07PSI (0.5kPa) | Wheatstone Bridge | 0 mV ~ 10 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
24PCAFB6GH02SENSOR 1PSIG 0.13" .045V |
0 |
|
- |
24PC | 4-SIP Module | Bulk | Active | - | Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 2.5V ~ 12V | Male - 0.13" (3.3mm) Tube | Barbed | - | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|

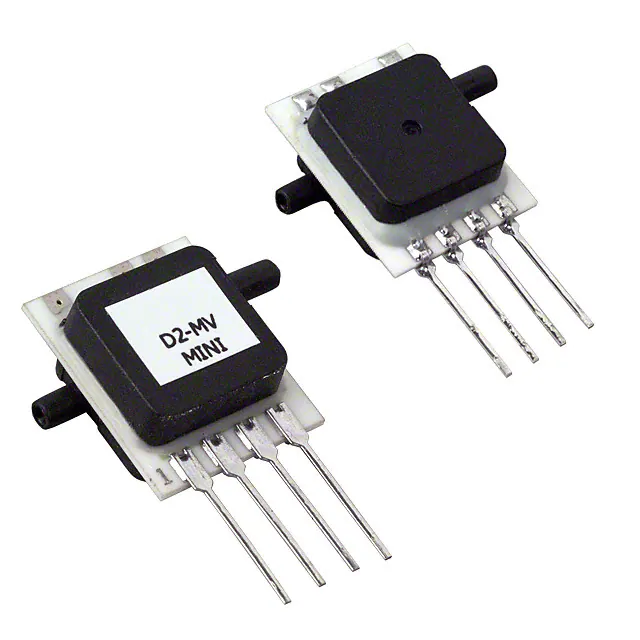

5 INCH-D2-MV-MINISENSOR 0.18PSID 0.08" .02V |
0 |
|
Datasheet |
MDCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
10 INCH-D2-MV-MINISENSOR 0.36PSID 0.08" .02V |
0 |
|
Datasheet |
MDCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
30 INCH-D2-MV-MINISENSOR 1.08PSID 0.08" .02V |
0 |
|
Datasheet |
MDCX | 4-SIP Module | Tube | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCDRRN005ND3A5SENSOR 0.18PSID 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.18PSI (±1.25kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN005NG7A5SENSOR 0.18PSIG 0.08" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 0.18PSI (1.25kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.76PSI (67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
26PC15SMTSENSOR 15PSIC 0.07" 0.1V |
0 |
|
Datasheet |
26PC SMT | 4-SMD Module | Tube | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±1% | 2.5V ~ 16V | Male - 0.07" (1.88mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
78312-B00000040-14PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
79296-B00000400-21PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
79310-B00000017-14PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
78310-B00000030-05PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
78629-B00000010-01PRESSURE SWITCHES-TRANS PRESSURE |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
76059-B00000600-01SWITCH 90PSI SPST-NO 1/8"NPT |
0 |
|
- |
5000 | Cylinder, Threaded | Bulk | Active | - | Switch | 51PSI ~ 90PSI (351.63kPa ~ 620.53kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
|
76056-B00000016-05SWITCH 3PSI SPST-NO 1/8"NPT |
0 |
|
- |
5000 | Cylinder, Threaded | Bulk | Active | - | Switch | 1.1PSI ~ 3PSI (7.58kPa ~ 20.68kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
