Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100 PSI-D-CGRADE-MVSENSOR 100PSID 0.19" 0.1V |
0 |
|
Datasheet |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±1% | 16V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
15 PSI-A-CGRADE-MVSENSOR 15PSIA 0.19" .09V |
0 |
|
Datasheet |
AXCX | 6-SIP Module | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±1% | 16V | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
ND110-SM02-RSENSOR 0.36PSID 0.08" 16BIT |
0 |
|
Datasheet |
ND | 11-SMD, No Lead, Top Port | Tape & Reel (TR) | Active | - | Differential | 0.02PSI ~ 0.36PSI (0.13kPa ~ 2.5kPa) | I2C, SPI | 16 b | ±0.15% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | 1.45PSI (9.96kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
24PCDFM1GSENSOR 30PSIC 1/4" .33V |
0 |
|
Datasheet |
24PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 330 mV (10V) | ±1% | 10V ~ 12V | Male - 1/4" (6.35mm) UNF | Threaded | - | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
BARO-A-4V-MINISENSOR 15.95PSIA 0.08" 4.25V |
0 |
|
Datasheet |
- | 4-SIP Module | Tube | Active | Board Mount | Absolute | 8.7PSI ~ 15.95PSI (60kPa ~ 110kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±2% | 4.5V ~ 5.5V | Male - 0.08" (2.03mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | - | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
TSCSGNN030PGUCVSENSOR 30PSIG 0.19" .02625V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | Temperature Compensated | PC Pin | 115PSI (792.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHHN001PDUCVSENSOR 1PSID 0.16" .015V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHHN060PDUCVSENSOR 60PSID 0.16" .06V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±60PSI (±413.69kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±145PSI (±999.74kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSHNN015PGUCVSENSOR 15PSIG 0.19" .02625V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.78mm) Tube | Barbed | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCDRRD001NDAA5SENSOR 0.04PSID 0.08" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|

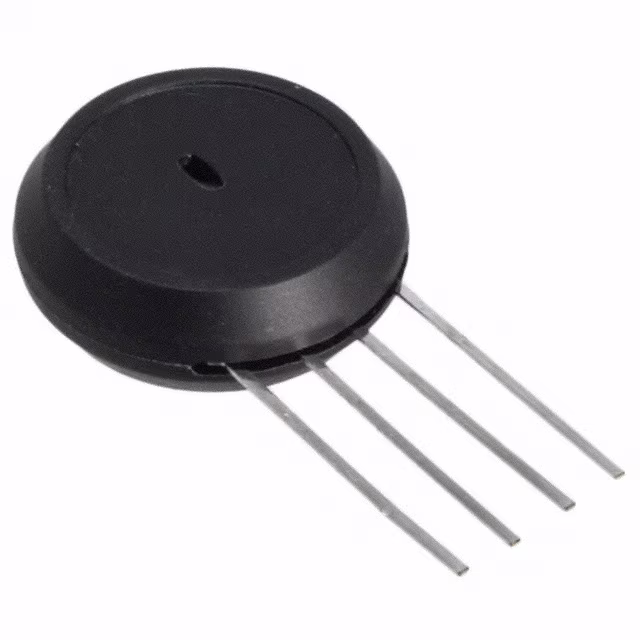

HSCSMND060PDAA5SENSOR 60PSID 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Differential | ±60PSI (±413.69kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | ±250PSI (±1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSSND150PG2A3SENSOR 150PSIG 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSAAD010ND2A3SENSOR 0.36PSID 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.65PSI (±87.21kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSAAN010NDAA3SENSOR 0.36PSID 0.19" 2.97V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.84PSI (±74.75kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSAAN005NG2A3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCSAAN001ND2A3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCDJJN001NDAA5TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCSAAN002NG5A3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCDJJN005NDAA5TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HSCDJJN0.5NDSA3TRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.02PSI (±0.1kPa) | SPI | - | ±0.25% | 3.27V ~ 3.33V | Male - 0.09" (2.29mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pins | - | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
