Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCMAND100MDAB5SENSOR 1.45PSID 0.19" 4.75V 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Differential | 1.45PSI (10kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 20.31PSI (140kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMRND100MDAB5SENSOR 1.45PSID 0.08" 4.75V 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
HSCMLND001PGSA3SENSOR 1PSIG 0.1" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | SPI | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | 10PSI (68.95kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMLND030PD2A3SENSOR 30PSID 0.1" 12BIT 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Differential | ±30PSI (±206.84kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | J Lead | ±120PSI (±827.37kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HSCMRND001PDAA5SENSOR 1PSID 0.08" 4.5V 8SMD |
0 |
|
Datasheet |
TruStability® HSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
ELVH-L05D-HRRJ-I-NAA5SENSOR 0.17PSID 0.06" |
0 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.15PSI ~ 0.17PSI (-1kPa ~ 1.2kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 10.88PSI (75kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
ELVH-L10D-HRRJ-I-NAA4SENSOR 0.36PSID 0.06" |
0 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.62PSI (87kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
|
ELVH-L10D-HRRJ-I-NAA5SENSOR 0.36PSID 0.06" |
0 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Dual Ports, Same Side | Tray | Active | - | Differential | -0.29PSI ~ 0.36PSI (-2kPa ~ 2.5kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | 12.62PSI (87kPa) | -20°C ~ 85°C | - | - | Surface Mount | - |
|
ELVH-005D-HRRD-I-NAA5SENSOR 4.93PSID 0.06" 8DIP |
0 |
|
Datasheet |
ELV | 8-DIP (0.504", 12.80mm), Dual Ports, Same Side | Tray | Active | - | Differential | -0.44PSI ~ 4.93PSI (-3kPa ~ 34kPa) | Analog Voltage | - | ±0.25% | 2.7V ~ 5.5V | Male - 0.06" (1.6mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 14.94PSI (103kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSNBD001PDAA5SENSOR 1PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±10PSI (±68.95kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSSND060PA2A3SENSOR 60PSIA 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSSND060PG2A3SENSOR 60PSIG 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCSSND150PA2A3SENSOR 150PSIA 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Absolute | 150PSI (1034.21kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSNBD005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCSHHN100PDUNVSENSOR 100PSID 0.16" .1725V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 172.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.16" (3.94mm) Tube, Dual | Barbed | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NSCSHHN030NDUNVTRUSTABLITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TSCSSNN030PGUCVTRUSTABILITY PRESSURE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

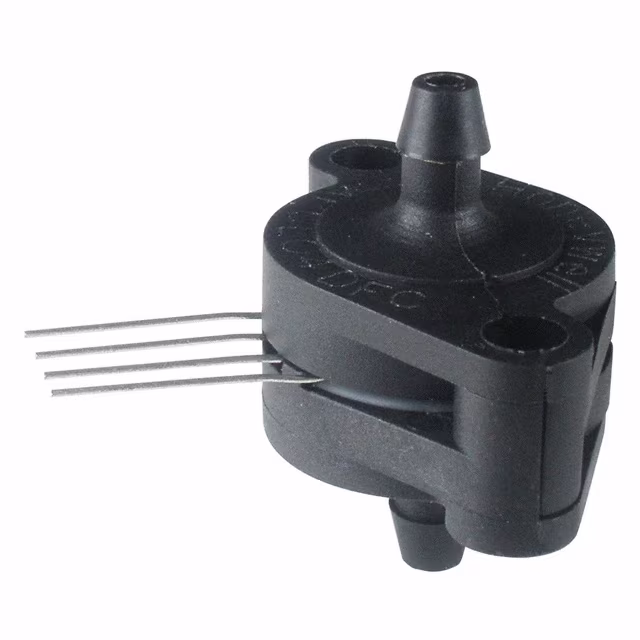

HSCSFFT005PDAA5SENSOR 5PSID 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSHNT2.5BAAA5SENSOR 36.26PSIA 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Absolute | 36.26PSI (250kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.78mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 87.02PSI (600kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
HSCSANN100PGAA5SENSOR 100PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Side Port | Bulk | Discontinued at Digi-Key | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 250PSI (1723.69kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
