Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPC-410-100G-3-LSENSOR 100PSIG 0.13" .125V 8DIP |
0 |
|
Datasheet |
NPC-410 | 8-DIP Module | Tray | Active | Board Mount | Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 125 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
|
NPC-410-100G-3-NSENSOR 100PSIG 0.13" .125V 8DIP |
0 |
|
Datasheet |
NPC-410 | 8-DIP Module | Tray | Active | Board Mount | Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 125 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|
|
NPC-410-100G-3-SSENSOR 100PSIG 0.13" .125V 8DIP |
0 |
|
Datasheet |
NPC-410 | 8-DIP Module | Tray | Active | Board Mount | Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 125 mV | ±0.1% | - | Male - 0.13" (3.23mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -40°C ~ 125°C | - | - | Through Hole | 8-DIP |
|

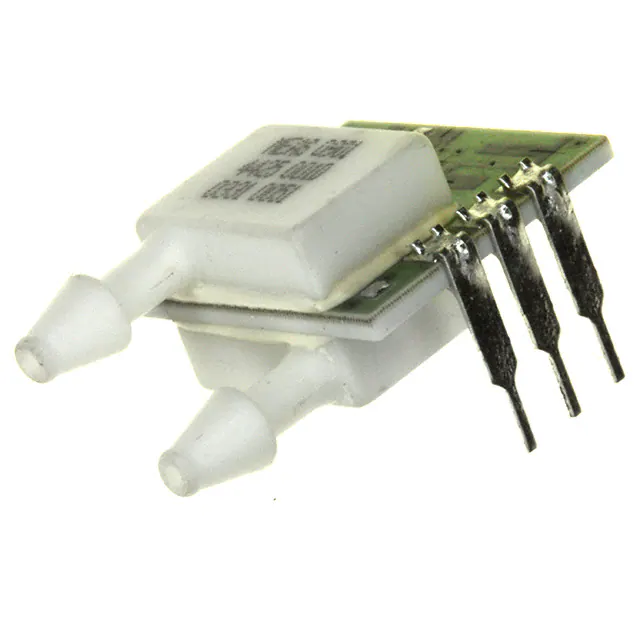

4425-001DSENSOR 1PSID 0.13" .018V |
0 |
|
Datasheet |
4425 | 6-DIP Module | Tray | Obsolete | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±0.25% | 12V ~ 20V | Male - 0.13" (3.4mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 3PSI (20.68kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
4425-100DSENSOR 100PSID 0.13" 0.1V |
0 |
|
Datasheet |
4425 | 6-DIP Module | Tray | Obsolete | Board Mount | Differential | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (12V) | ±0.25% | 12V ~ 20V | Male - 0.13" (3.4mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
NSCSNBN005PDUNVSENSOR 5PSID 0.19" .15V 4SIP |
0 |
|
Datasheet |
TruStability® NSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
ELVH-M500G-HANJ-C-N2A4SENSOR 7.25PSIG 0.19" 14BIT |
0 |
|
Datasheet |
ELV | 8-SMD, J-Lead, Top Port | Tray | Active | - | Gauge | 7.25PSI (50kPa) | I2C | 14 b | ±0.25% | 2.7V ~ 5.5V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | J Lead | 14.94PSI (103kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
HSCSNBD160MD2A3SENSOR 2.32PSID 0.19" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±2.32PSI (±16kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±20.31PSI (±140kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSANN001PGAA5SENSOR 1PSIG 0.19" 4.5V 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Side Port | Bulk | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCDANN015PG2A3SENSOR 15PSIG 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDANN060PG3A5SENSOR 60PSIG 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 60PSI (413.69kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 120PSI (827.37kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCDRRN005PDAA3SENSOR 5PSID 0.08" 2.97V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
SSCDRRN100MGAA5SENSOR 1.45PSIG 0.08" 4.5V 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
SSCMANN006BGAA3SENSOR 87.02PSIG 0.19" 2.97V SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Active | Board Mount | Vented Gauge | 87.02PSI (600kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 246.56PSI (1700kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMNNN015PA2A3SENSOR 15PSIA 12BIT 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMRNN030PAAA5SENSOR 30PSIA 0.08" 4.5V 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Side Port | Bulk | Active | Board Mount | Absolute | 30PSI (206.84kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
SSCMRNN100MG2A5SENSOR 1.45PSIG 0.08" 12BIT 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Side Port | Bulk | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08" (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCMRRN001PDAA3SENSOR 1PSID 0.08" 2.97V 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | ±10PSI (±68.95kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
SSCSRRN100MG2A3SENSOR 1.45PSIG 0.08" 12BIT 4SIP |
0 |
|
Datasheet |
TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08" (1.92mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
SSCDANN005PG3A5SENSOR 5PSIG 0.19" 12BIT 8DIP |
0 |
|
Datasheet |
TruStability® SSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I2C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
