Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSCSJJN010KDUCVSENSOR 1.45PSID 0.09" .022V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±1.45PSI (±10kPa) | Wheatstone Bridge | 0 mV ~ 22 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.09" (2.34mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±12.62PSI (±87kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
TSCSNNN150PGUCVSENSOR 150PSIG .04575V 4SIP |
0 |
|
Datasheet |
TruStability® TSC | 4-SIP Module | Bulk | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | - | No Port | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
MPX5700GP1SENSOR 101.53PSIG 0.19" 4.7V |
0 |
|
Datasheet |
MPX5700 | 6-SIP Module | Tray | Active | Board Mount | Vented Gauge | 101.53PSI (700kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
TSCDANN150PGUCVSENSOR 150PSIG 0.19" .04575V DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Tray | Obsolete | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
TSCDRRN001PGUCVSENSOR 1PSIG 0.08" .0075V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Tray | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 12.7PSI (87.56kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
TSCDANN100PGUCVSENSOR 100PSIG 0.19" .0305V 8DIP |
0 |
|
Datasheet |
TruStability® TSC | 8-DIP (0.524", 13.30mm), Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 30.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
MPX4250APSENSOR 36.26PSIA 0.19" 4.9V |
0 |
|
Datasheet |
MPX4250A | 6-SIP Module | Tray | Obsolete | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.5% | 4.85V ~ 5.35V | Male - 0.19" (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
HV160-SM02-MSENSOR 2.17PSID 0.08" 16BIT |
0 |
|
Datasheet |
HV | 11-SMD, No Lead, Top Port | Tray | Active | Board Mount | Differential | ±0.09PSI ~ ±2.17PSI (±0.62kPa ~ ±15kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±14.5PSI (±100kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
SSCMLND160MG7A3TSENSOR 2.32PSIG 0.1" 12BIT 8SMT |
0 |
|
Datasheet |
TruStability® SSC | 8-SMD, J-Lead, Top Port | Bulk | Obsolete | Board Mount | Vented Gauge | 2.32PSI (16kPa) | I2C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 12.33PSI (85kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
2000522SENSOR 250PSIG 1/4"NPT .02A |
0 |
|
Datasheet |
MSP400 | IoT Finished Device | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.5% | 10V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 85°C | - | - | - | - |
|

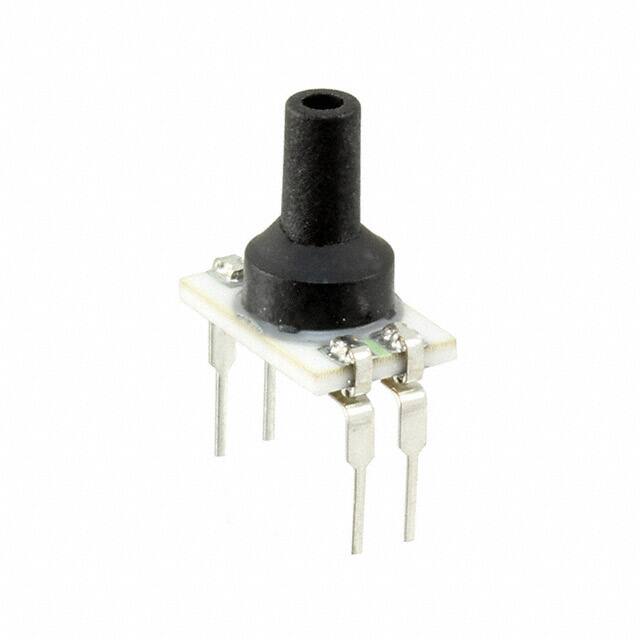

TBPDLNN015PGUCVSENSOR 15PSIG 0.13" .0275V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Tray | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13" (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
MPVZ4006G6T1SENSOR 0.87PSIG 4.6V |
0 |
|
Datasheet |
MPVZ4006G | 8-SMD Module | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 0.87PSI (6kPa) | Analog Voltage | 0.3 V ~ 4.6 V | - | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 10.88PSI (75kPa) | 10°C ~ 60°C | - | - | Surface Mount | - |
|
|
TSCMRNN001PDUCVSENSOR 1PSID 0.08" .015V 8SMT |
0 |
|
Datasheet |
TruStability® TSC | 8-SMD, J-Lead, Side Port | Bulk | Obsolete | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 15 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.08" (1.93mm) Tube | Barbed | Temperature Compensated | J Lead | ±12.5PSI (±86.18kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMT |
|
|
MS580301BA01-50SENSOR 14.5PSIA 24BIT 8SMD |
0 |
|
- |
MS5803 | 8-SMD Module | Box | Active | Board Mount | Absolute | 14.5PSI (100kPa) | I2C, SPI | 24 b | ±0.03PSI (±0.2kPa) | 1.8V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 145.04PSI (1000kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|
|
HV120-SM02-MSENSOR 0.72PSID 0.08" 16BIT |
0 |
|
Datasheet |
HV | 11-SMD, No Lead, Top Port | Tray | Active | Board Mount | Differential | ±0.09PSI ~ ±0.72PSI (±0.62kPa ~ ±5kPa) | I2C, SPI | 16 b | ±0.1% | 2.8V ~ 3.5V | Male - 0.08" (2.13mm) Tube, Dual | Barbless | Temperature Compensated | SMD (SMT) Tab | ±1.45PSI (±9.97kPa) | 0°C ~ 50°C | - | - | Surface Mount | - |
|
TBPDANS001PGUCVSENSOR 1PSIG 0.11" .0075V 4DIP |
0 |
|
Datasheet |
TBP | 4-DIP (0.453", 11.50mm), Top Port | Tray | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.11" (2.74mm) Tube | Barbed | Temperature Compensated | PC Pin | 12.7PSI (87.56kPa) | -40°C ~ 125°C | - | - | Through Hole | 4-DIP |
|
NPA-100B-030GSENSOR 30PSIG 0.12" .166V |
0 |
|
Datasheet |
NPA-100 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Analog Voltage | 100 mV ~ 166 mV | ±1.5% | - | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
NPA-100B-030DSENSOR 30PSID 0.12" .166V |
0 |
|
Datasheet |
NPA-100 | 14-SOIC Module, Top Port | Tape & Reel (TR) | Active | Board Mount | Differential | 30PSI (206.84kPa) | Analog Voltage | 100 mV ~ 166 mV | ±1.5% | - | Male - 0.12" (3mm) Tube, Dual | Barbed | - | Gull Wing | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
|
|
MS580314BA01-50SENSOR 203PSIA 24BIT 8SMD |
0 |
|
- |
MS5803 | 8-SMD Module | Box | Active | Board Mount | Absolute | 203PSI (1400kPa) | I2C, SPI | 24 b | ±0.580PSI (±4kPa) | 1.8V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 85°C | - | - | Surface Mount | 8-SMD |
|

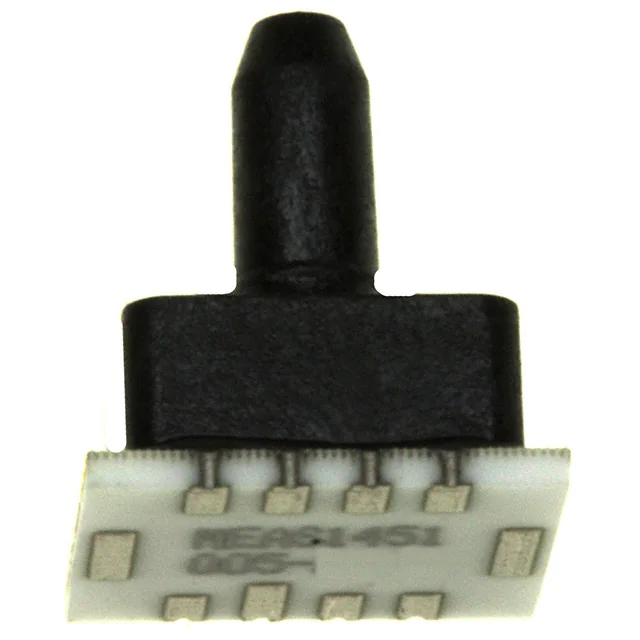

1451-005G-TSENSOR 5PSIG 0.09" .06V |
0 |
|
Datasheet |
- | 10-SMD Module | Bulk | Obsolete | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | Male - 0.09" (2.29mm) Tube | Barbless | - | SMD (SMT) Tab | 15PSI (103.42kPa) | -40°C ~ 125°C | - | - | Surface Mount | - |
