Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP3V5010DPSENSOR 1.45PSID 0.13" 3.1V 8SOP NXP USA Inc. |
2,065 |
|
Datasheet |
MP3V5010 | 8-BSOP (0.475", 12.06mm Width) Dual Ports, Same Side | Tray | Active | Board Mount | Differential | 1.45PSI (10kPa) | Analog Voltage | 0.1 V ~ 3.1 V | ±5% | 2.7V ~ 3.3V | Male - 0.13" (3.3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SOP |
|

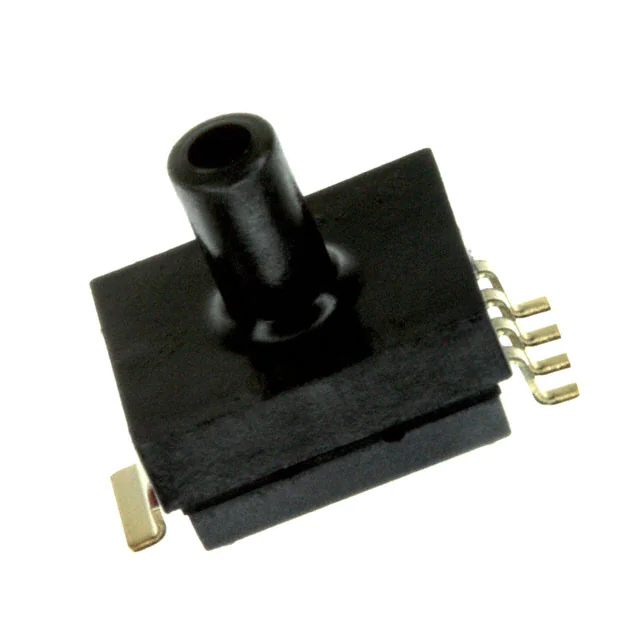

MPXM2010GSSENSOR 1.45PSIG 0.12" .025V MPAK NXP USA Inc. |
4,398 |
|
Datasheet |
MPX2010 | 5-SMD Module, Top Port | Tube | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.12" (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C | - | - | Surface Mount | 5-MPAK |
|
MPXH6115A6T1SENSOR 16.68PSIA 4.7V 8SSOP NXP USA Inc. |
847 |
|
Datasheet |
MPXH6115A | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXH6115A6USENSOR 16.68PSIA 4.7V 8SSOP NXP USA Inc. |
938 |
|
Datasheet |
MPXH6115A | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
MPX5500DPSENSOR 72.52PSID 0.19" 4.7V NXP USA Inc. |
4,347 |
|
Datasheet |
MPX5500 | 6-SIP Module | Tray | Active | Board Mount | Differential | 72.52PSI (500kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 406.11PSI (2800kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
MPXHZ6250AC6T1SENSOR 36.26PSIA 0.13" 4.9V SSOP NXP USA Inc. |
974 |
|
Datasheet |
MPXHZ6250A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXHZ6400AC6T1SENSOR 58.02PSIA 0.13" 4.8V SSOP NXP USA Inc. |
839 |
|
Datasheet |
MPXHZ6400A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.64V ~ 5.36V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 232.06PSI (1600kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXH6400AC6T1SENSOR 58.02PSIA 0.13" 4.8V SSOP NXP USA Inc. |
1,317 |
|
Datasheet |
MPXH6400A | 8-SOIC (0.335", 8.50mm Width), Top Port | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.9PSI ~ 58.02PSI (20kPa ~ 400kPa) | Analog Voltage | 0.2 V ~ 4.8 V | ±1.5% | 4.64V ~ 5.36V | Male - 0.13" (3.3mm) Tube | Barbless | Temperature Compensated | Gull Wing | 232.06PSI (1600kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXHZ6250A6USENSOR 36.26PSIA 4.9V 8SSOP NXP USA Inc. |
1,409 |
|
Datasheet |
MPXHZ6250A | 8-SOIC (0.295", 7.50mm Width) | Tube | Active | Board Mount | Absolute | 2.9PSI ~ 36.26PSI (20kPa ~ 250kPa) | Analog Voltage | 0.3 V ~ 4.9 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 145.04PSI (1000kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
|
|
MPXHZ6115A6T1SENSOR 16.68PSIA 4.7V 8SSOP NXP USA Inc. |
1,925 |
|
Datasheet |
MPXHZ6115A | 8-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | Surface Mount | 8-SSOP |
