Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT30-10000PSIG-1-5-2-3High Performance Fixed Range Pre |
4 |
|
Datasheet |
PT30 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 10000PSI (68947.57kPa) | Analog Voltage | 0 V ~ 10 V | ±0.25% | 12V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 20000PSI (137895.15kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
PT30-1000PSIG-1-5-2-3High Performance Fixed Range Pre |
3 |
|
Datasheet |
PT30 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0 V ~ 10 V | ±0.25% | 12V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 3000PSI (20684.27kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
PT30-500PSIG-1-5-2-3High Performance Fixed Range Pre |
2 |
|
Datasheet |
PT30 | Cylinder, Threaded | Bulk | Active | Industrial Automation | Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0 V ~ 10 V | ±0.25% | 12V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 1500PSI (10342.14kPa) | -20°C ~ 85°C | - | - | - | - |
|
TPS20-G2AF8-00SENSOR 1422.33PSIG G3/8" .02A |
7 |
|
Datasheet |
TPS20 | Cylinder, Threaded | Box | Active | Industrial Automation | Gauge | 1422.33PSI (9806.65kPa) | Analog Current | 4 ~ 20 mA | ±0.3% | 15V ~ 35V | Male - G3/8" (9.525mm) PF | Threaded | - | DIN | 4267PSI (29419.95kPa) | -10°C ~ 70°C | - | - | - | - |
|

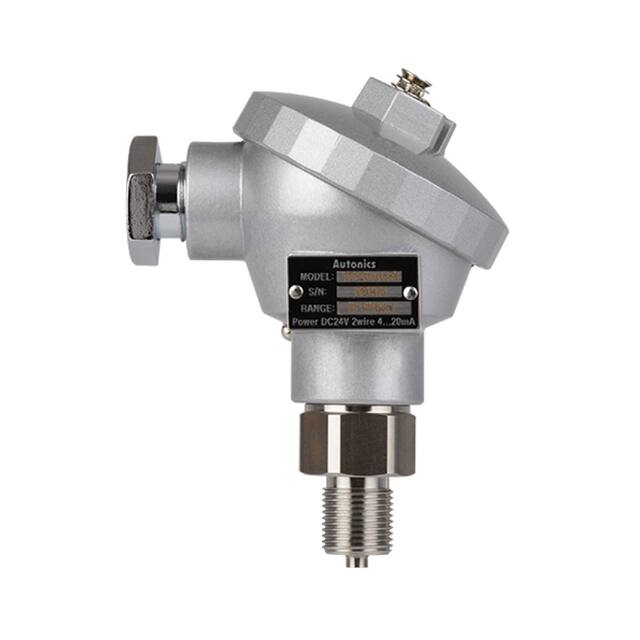

TPS20-G1AF8-00SENSOR 1422.33PSIG G3/8" .02A |
5 |
|
Datasheet |
TPS20 | Cylinder, Threaded | Box | Active | Industrial Automation | Gauge | 1422.33PSI (9806.65kPa) | Analog Current | 4 ~ 20 mA | ±0.3% | 15V ~ 35V | Male - G3/8" (9.525mm) PF | Threaded | - | Connector | 4267PSI (29419.95kPa) | -10°C ~ 70°C | - | - | - | - |
|

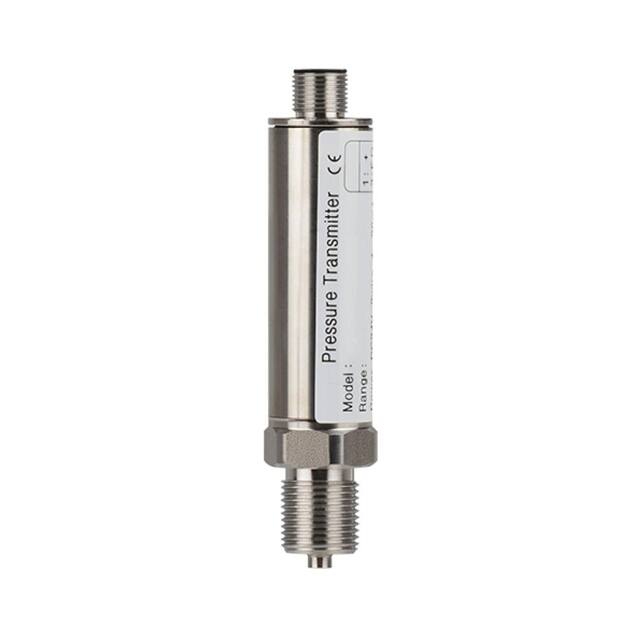

TPS20-G3AF8-00SENSOR 1422.33PSIG G3/8" .02A |
5 |
|
Datasheet |
TPS20 | Cylinder, Threaded | Box | Active | Industrial Automation | Gauge | 1422.33PSI (9806.65kPa) | Analog Current | 4 ~ 20 mA | ±0.3% | 15V ~ 35V | Male - G3/8" (9.525mm) PF | Threaded | - | M12 | 4267PSI (29419.95kPa) | -10°C ~ 70°C | - | - | - | - |
|
PSAN-L01CV-R1/8SENSOR 14.5PSI 1/8" 5V |
5 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 14.5PSI (100kPa) | Analog Voltage, NPN - Open Collector | 1 V ~ 5 V | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.01PSI (200kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-L01CPV-R1/8SENSOR 14.5PSI 1/8" 5V |
5 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 14.5PSI (100kPa) | Analog Voltage, PNP - Open Collector | 1 V ~ 5 V | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.01PSI (200kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-LV01CA-R1/8SENSOR 14.69PSI 1/8" .02A |
4 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 14.7PSI (101.33kPa) | Analog Current, NPN - Open Collector | 4 ~ 20 mA | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.38PSI (202.6kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-LV01CV-R1/8SENSOR 14.69PSI 1/8" 5V |
4 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 14.7PSI (101.33kPa) | Analog Voltage, NPN - Open Collector | 1 V ~ 5 V | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.38PSI (202.6kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-L01CH-R1/8SENSOR 14.5PSI 1/8" |
4 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 14.5PSI (100kPa) | NPN - Open Collector | - | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.01PSI (200kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-L1CH-R1/8SENSOR 145.04PSI 1/8" |
3 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 145.04PSI (1000kPa) | NPN - Open Collector | - | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 217.56PSI (1500kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-L1CA-R1/8SENSOR 145.04PSI 1/8" .02A |
2 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 145.04PSI (1000kPa) | Analog Current, NPN - Open Collector | 4 ~ 20 mA | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 217.56PSI (1500kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-LV01CPV-R1/8SENSOR 14.69PSI 1/8" 5V |
2 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 14.7PSI (101.33kPa) | Analog Voltage, PNP - Open Collector | 1 V ~ 5 V | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.38PSI (202.6kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-L01CPH-R1/8SENSOR 14.5PSI 1/8" |
2 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | - | 14.5PSI (100kPa) | PNP - Open Collector | - | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.01PSI (200kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
|
PSAN-LC01CPV-R1/8SENSOR 14.5PSIC 1/8" 5V |
2 |
|
Datasheet |
PSAN | Module Box with Display | Box | Active | - | Compound | -14.69PSI ~ 14.5PSI (-101.3kPa ~ 100kPa) | Analog Voltage, PNP - Open Collector | 1 V ~ 5 V | ±1% | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Connector | 29.01PSI (200kPa) | -10°C ~ 50°C (TA) | - | - | - | - |
|
8381.G6.2530.35.PA.P1.44.ZS.Z1.Z2SENSOR 50PSIG 1/4"NPT 10V |
25 |
|
Datasheet |
DPS 8381 | Cylinder, Metal | Box | Active | - | Gauge | 50PSI (344.74kPa) | Analog Current/Voltage, PNP - Open Collector | 4mA ~ 20mA, 0V ~ 10V | ±0.5% | 15V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | - | M12x1, 5 Pin | 150PSI (1034.21kPa) | -25°C ~ 85°C | - | - | - | - |
|
8380.G3.5730.35.PA.P1.61.44.ZS.Z1.Z2SENSOR 20PSIG 1/4"NPT 10V |
22 |
|
Datasheet |
DPC 8380 | Cylinder, Metal | Box | Active | - | Gauge | 20PSI (137.90kPa) | Analog Current/Voltage, PNP - Open Collector | 4mA ~ 20mA, 0V ~ 10V | ±0.5% | 15V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | - | M12x1, 5 Pin | 45PSI (310.26kPa) | -25°C ~ 85°C | - | - | - | - |
|
|
8380.F8.5730.35.PA.P1.61.44.ZS.Z1.Z2SENSOR 2.5PSIG 1/4"NPT 10V |
21 |
|
Datasheet |
DPC 8380 | Cylinder, Metal | Box | Active | - | Gauge | 2.5PSI (17.24kPa) | Analog Current/Voltage, PNP - Open Collector | 4mA ~ 20mA, 0V ~ 10V | ±0.5% | 15V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | - | M12x1, 5 Pin | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | - | - |
|
|
8380.F9.5730.35.PA.P1.61.44.ZS.Z1.Z2SENSOR 5PSIG 1/4"NPT 10V |
20 |
|
Datasheet |
DPC 8380 | Cylinder, Metal | Box | Active | - | Gauge | 5PSI (34.47kPa) | Analog Current/Voltage, PNP - Open Collector | 4mA ~ 20mA, 0V ~ 10V | ±0.5% | 15V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | - | M12x1, 5 Pin | 15PSI (103.42kPa) | -25°C ~ 85°C | - | - | - | - |
Pressure Sensors, Transducers Electronic Components
Explore Pressure Sensors, Transducers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
