Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NPI-15A-353SHSENSOR 5076.32PSIS .2V |
45 |
|
Datasheet |
NPI-15 | Cylinder | Bulk | Active | Board Mount | Sealed Gauge | 5076.32PSI (35000kPa) | Wheatstone Bridge | 0 mV ~ 200 mV | ±0.25% | - | - | No Port | Temperature Compensated | Flex Cable | 10152.64PSI (70000kPa) | -40°C ~ 125°C | - | - | - | - |
|
86-005G-CSENSOR 5PSIG 0.1V |
67 |
|
Datasheet |
- | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C | - | - | - | - |
|

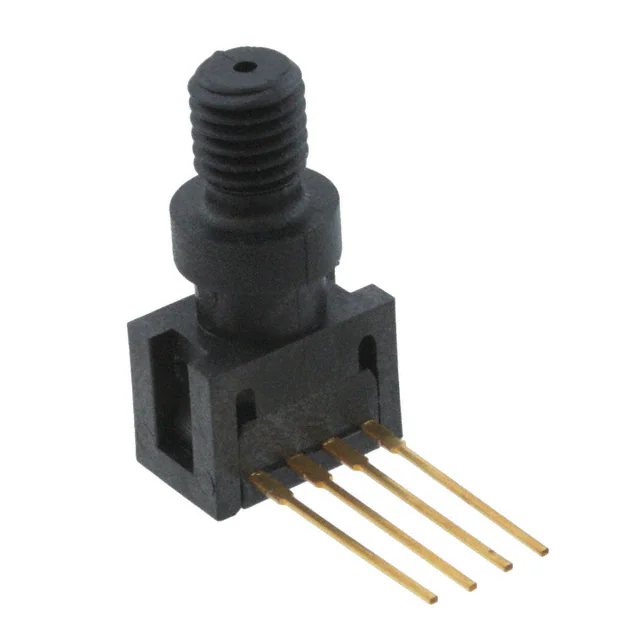

26PCFFM6GSENSOR 100PSIC 1/4" 0.1V |
342 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 1/4" (6.35mm) UNF | Threaded | Temperature Compensated | PC Pin | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
RSCDRRM020NDSE3SENSOR 0.72PSID 0.08" 24BIT 8DIP |
230 |
|
Datasheet |
TruStability® RSC | 8-DIP (0.510", 12.95mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | ±0.72PSI (±4.96kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±6.32PSI (±43.6kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
M325M-000005-100PGSENSOR 100PSIG 1/4"NPT .02A |
104 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
M325M-000005-250PGSENSOR 250PSIG 1/4"NPT .02A |
30 |
|
Datasheet |
M3200 | Cylinder, Threaded | Box | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4" (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
5 PSI-D-4V-ASCXSENSOR 5PSID 0.19" 4.75V 4SIP |
870 |
|
Datasheet |
ASCX | 4-SIP | Bulk | Active | Board Mount | Differential | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±15PSI (±103.42kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
1 PSI-D-4V-ASCXSENSOR 1PSID 0.19" 4.75V 4SIP |
64 |
|
Datasheet |
ASCX | 4-SIP | Bulk | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±5PSI (±34.47kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
30 PSI-D-4V-ASCXSENSOR 30PSID 0.19" 4.75V 4SIP |
61 |
|
Datasheet |
ASCX | 4-SIP | Bulk | Active | Board Mount | Differential | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±100PSI (±689.48kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
15 PSI-A-4V-ASCXSENSOR 15PSIA 0.19" 4.75V 4SIP |
26 |
|
Datasheet |
ASCX | 4-SIP | Bulk | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0.25 V ~ 4.75 V | ±0.5% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 105°C | - | - | Through Hole | 4-SIP |
|
10 INCH-D-4VSENSOR 0.36PSID 0.19" 4.25V |
27 |
|
Datasheet |
ADCA | 4-SIP Module | Tube | Active | Board Mount | Differential | ±0.36PSI (±2.49kPa) | Analog Voltage | 0.25 V ~ 4.25 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±7.23PSI (±49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
NPH-8-007GHSENSOR 1.02PSIG 0.19" .075V TO8 |
45 |
|
Datasheet |
NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Vented Gauge | 1.02PSI (7kPa) | Wheatstone Bridge | 0 mV ~ 75 mV | ±1.5% | - | Male - 0.19" (4.83mm) Tube | Barbless | Temperature Compensated | PC Pin | 5.08PSI (35kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
|
RSCDRRI002NDSE3SENSOR 0.07PSID 0.08" 24BIT 8DIP |
55 |
|
Datasheet |
TruStability® RSC | 8-DIP (0.510", 12.95mm), Dual Ports, Same Side | Bulk | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±4.86PSI (±33.5kPa) | -40°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
M3431-000006-01KPGSENSOR 1000PSIG 1/8"NPT 4.5V |
52 |
|
Datasheet |
MSP340 | Cylinder | Bulk | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/8" (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 2' | 2000PSI (13789.51kPa) | -20°C ~ 85°C | - | - | - | - |
|

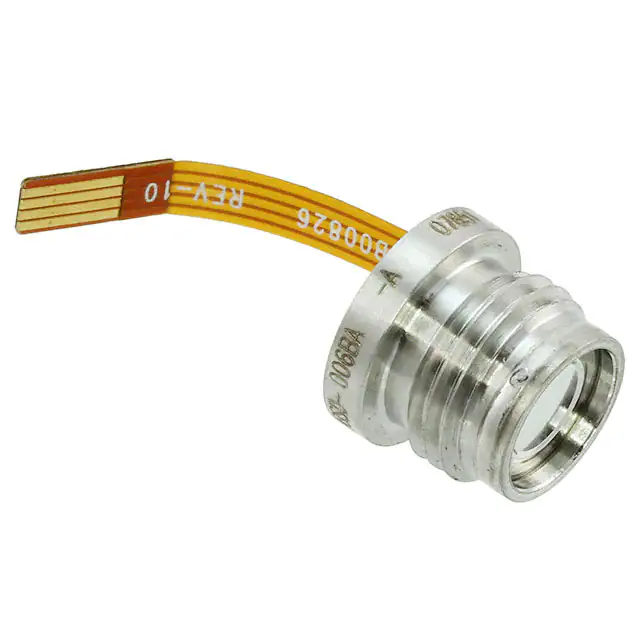

89BSD-006BA-ASENSOR 87.02PSIA 5/16" 24BIT |
120 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 87.02PSI (600kPa) | I2C | 24 b | ±0.3% | 1.8V ~ 3.6V | Male - 5/16" (7.94mm) UNEF | Threaded | - | Cable with Connector | 174.05PSI (1200kPa) | -40°C ~ 85°C | - | - | - | - |
|
89-03KA-0USENSOR 3000PSIA .208V |
281 |
|
Datasheet |
- | Cylinder | Tube | Active | Board Mount | Absolute | 3000PSI (20684.27kPa) | Wheatstone Bridge | 0 mV ~ 208 mV | ±0.25% | 9.5V | - | No Port | - | PC Pin | 9000PSI (62052.82kPa) | -40°C ~ 125°C | - | - | - | - |
|
19C050PA4KSENSOR 50PSIA 1/8"NPT 0.1V |
45 |
|
Datasheet |
19 mm | Cylinder, Threaded | Bulk | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0 mV ~ 100 mV (10V) | ±0.25% | 15V | Male - 1/8" (3.18mm) NPT | Threaded | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | - | - |
|
40PC100G2ASENSOR 100PSIG 0.18" 4.5V |
246 |
|
Datasheet |
40PC | 6-DIP Module | Tray | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±3% | 4.75V ~ 5.25V | Male - 0.18" (4.57mm) Tube | Barbless | Amplified Output | PC Pin | 200PSI (1378.95kPa) | -45°C ~ 125°C | - | - | Through Hole | - |
|

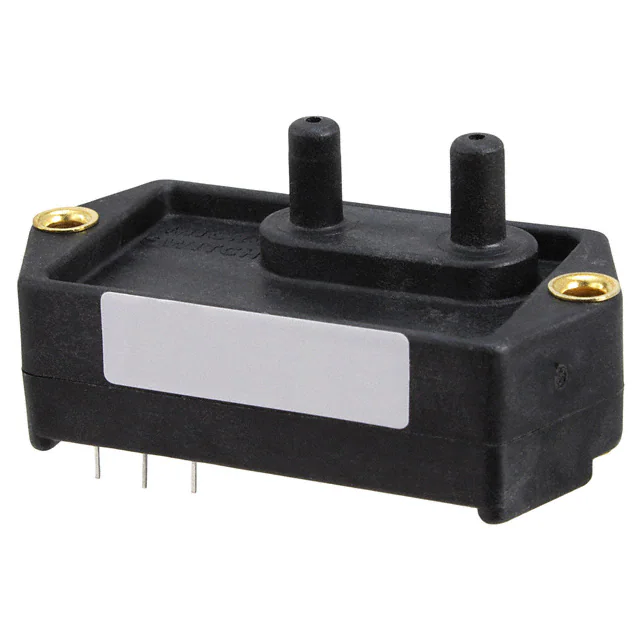

142PC01DSENSOR 1PSID 0.2" 6V |
46 |
|
Datasheet |
140PC | 3-SIP Module | Bulk | Active | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 1 V ~ 6 V | ±0.75% | 7V ~ 16V | Male - 0.2" (5mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
SPL07-003SENSOR 15.95PSI 10LGA |
16,356 |
|
Datasheet |
- | 10-WFLGA Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 4.35PSI ~ 15.95PSI (30kPa ~ 110kPa) | I2C, SPI | - | ±0.03KPa | 1.7V ~ 3.6V | - | No Port | - | - | - | -40°C ~ 85°C | - | - | - | 10-LGA (2x2) |
