Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

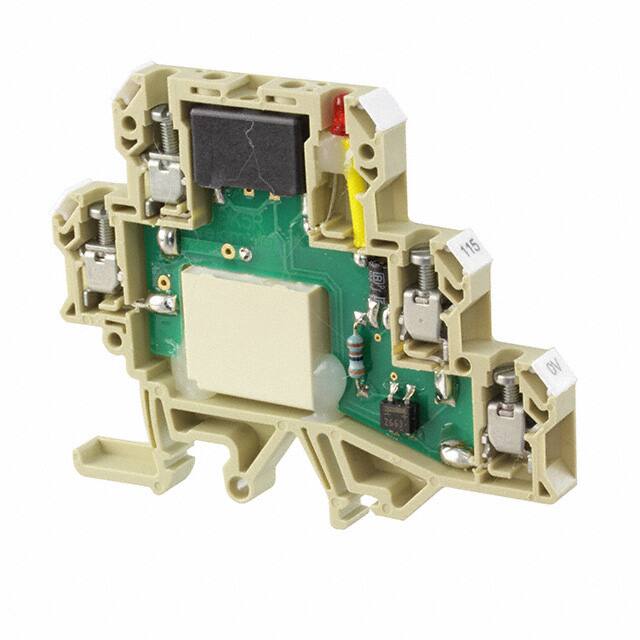

7940102019RELAY GEN PURPOSE SPST 4A 115V |
0 |
|
- |
MC5R | Bulk | Obsolete | DIN Rail | 115VAC | SPST-NO (1 Form A) | 4 A | 250VAC, 30VDC - Max | 1000VA, 120W | - | Non Latching | Socket Included | Screw Terminal | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
389FXBXC1240APWR RELAY, DPDT, 25A, 240VAC, FL |
0 |
|
Datasheet |
SE | Box | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 25 A | 600VAC - Max | 15000VA | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 204 VAC | 24 VAC | - | - | -30°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
R10L-E1Y2-V700RELAY DRY CIR |
0 |
|
- |
R10L | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 120VAC, 30VDC - Max | 360VA, 90W | 34.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G7J-3A1B-P AC100/120RELAY GEN PURPOSE 4PST 25A 120V |
0 |
|
Datasheet |
G7J | Bulk | Active | Through Hole | 120VAC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 21.6 mA | Non Latching | Test Button | PC Pin | - | - | 75 VAC | 18 VAC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
|
2900328RELAY GEN PURPOSE SPST 6A 24V |
0 |
|
Datasheet |
PLC-RPT | Bulk | Active | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 11 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 6 ms | 15 ms | -20°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
1133620000RELAY GEN PURPOSE 4PDT 10A 12V |
0 |
|
- |
DRL | Bulk | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 10 A | 250VAC - Max | 2500VA | 125 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | 1.2 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1133630000RELAY GEN PURPOSE 4PDT 10A 24V |
0 |
|
- |
DRL | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC - Max | 2500VA | 66.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 18 VDC | 2.4 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1219410000RELAY GEN PURPOSE 3PDT 16A 24V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 101.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219420000RELAY GEN PURPOSE 3PDT 16A 48V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 48VAC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 50.5 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VAC | 14.4 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219430000RELAY GEN PURPOSE 3PDT 16A 115V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 21 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 92 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219440000RELAY GEN PURPOSE 3PDT 16A 230V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 230VAC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 10.6 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219820000RELAY GEN PURPOSE 3PDT 16A 110V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 110VDC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 13 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219830000RELAY GEN PURPOSE 3PDT 16A 220V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 220VDC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 165 VDC | 22 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUP-11A15-12RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Datasheet |
KUP | Bulk | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 168 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 10.2 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
859-360RELAY GEN PURPOSE SPDT 5A 115V |
0 |
|
Datasheet |
859 | Box | Active | DIN Rail | 115VAC/DC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 3.5 mA | Non Latching | Lighted Indicator | Spring Terminal | - | - | - | - | 15 ms | 30 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
859-359RELAY GEN PURPOSE SPDT 5A 230V |
0 |
|
Datasheet |
859 | Box | Active | DIN Rail | 230VAC | SPDT (1 Form C) | 5 A | 250VAC - Max | 1250VA | 3.5 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | - | - | 15 ms | 30 ms | -40°C ~ 50°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
KRP-11AG-240RELAY GEN PURPOSE DPDT 10A 240V |
0 |
|
Datasheet |
KRP | Bulk | Obsolete | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 8.8 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 204 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
199DX3OPEN PWR RY, SPST-NO-DM, 40A, 24 |
0 |
|
Datasheet |
SE | Box | Obsolete | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 40 A | 600VDC - Max | 24000W | 82.8 mA | Non Latching | - | Screw Terminal | - | - | 20.4 VDC | 2.4 VDC | - | - | -55°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
PRD-60955POWER RELAY ASSEMBLY |
0 |
|
- |
PRD | Bulk | Obsolete | Chassis Mount | - | - | 50 A | 600VAC, 125VDC - Nom | - | - | Non Latching | - | - | - | Class B | - | - | 40 ms | 20 ms | - | - | General Purpose | - | - |
|
1102111001RELAY GEN PURPOSE SPST 5A 115V |
0 |
|
Datasheet |
RS | Bulk | Obsolete | DIN Rail | 115VAC | SPST-NO (1 Form A) | 5 A | 250VAC - Max | 1250VA | - | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 9 ms | 8 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
