Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
24420RELAY GEN PURPOSE SPST 35A 12V |
0 |
|
Datasheet |
- | Bulk | Obsolete | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 35 A | - | - | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Copper | General Purpose | - | - |
|
CIMRE2SS4/24/OMRELAY MODULE, DIN RAIL MOUNT WIT |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KUP-11A15-208RELAY GEN PURPOSE DPDT 10A 208V |
0 |
|
Datasheet |
KUP | Bulk | Obsolete | Socketable | 208VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 9.6 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 176.8 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

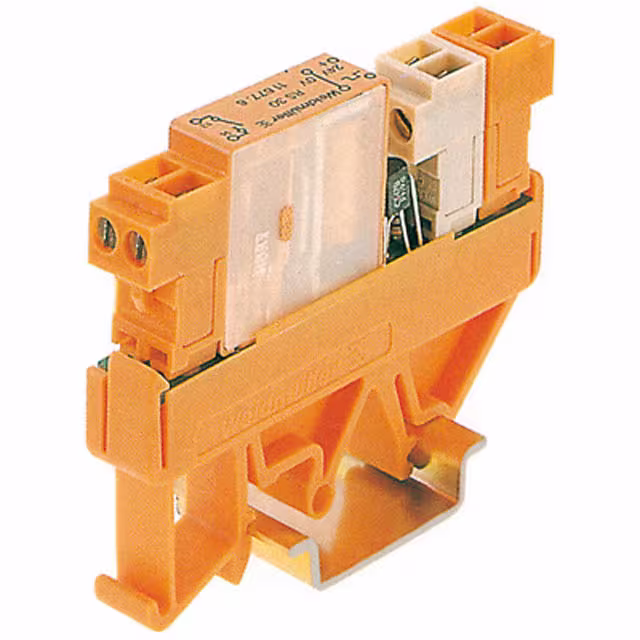

1167660000RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Datasheet |
RS | Bulk | Obsolete | DIN Rail | 5VDC | SPST-NC (1 Form B) | 5 A | 250VAC - Max | 1250VA | - | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 8 ms | 7 ms | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|

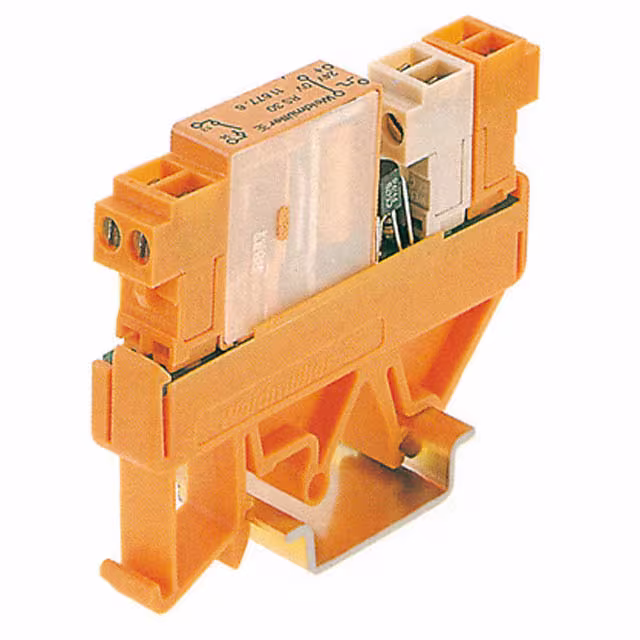

1167760000RELAY GEN PURPOSE SPST 5A 5V |
0 |
|
Datasheet |
RS | Bulk | Obsolete | DIN Rail | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC - Max | 1250VA | - | Non Latching | Socket Included | Screw Terminal | - | - | - | - | 8 ms | 7 ms | -25°C ~ 40°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
CIMRE1SS8/24/OM/WRRELAY MODULE, DIN RAIL SOCKET WI |
0 |
|
- |
CIMRE | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 12 A | 250VAC, 30VDC - Max | - | 16.7 mA | Non Latching | Diode, Lighted Indicator | Screw Terminal | - | - | 16.8 VDC | 2.4 VDC | 15 ms | - | -20°C ~ 50°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
KUP-14D45-24RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Datasheet |
KUP | Bulk | Active | Socketable | 24VDC | 3PDT (3 Form C) | 10 A | 240VAC - Max | 2400VA | 51 mA | Non Latching | Lighted Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class B | 18 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
8501KFR13V14PLUG IN RELAY, TYPE KF, FLANGE M |
0 |
|
Datasheet |
Square D 8501K | Box | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 300VAC, 30VDC - Max | 3000VA, 300W | - | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1133600000RELAY GEN PURPOSE 3PDT 10A 110V |
0 |
|
- |
DRL | Bulk | Obsolete | Socketable | 110VDC | 3PDT (3 Form C) | 10 A | 250VAC - Max | 2500VA | 13.1 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | 11 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1133610000RELAY GEN PURPOSE 3PDT 10A 220V |
0 |
|
- |
DRL | Bulk | Obsolete | Socketable | 220VDC | 3PDT (3 Form C) | 10 A | 250VAC - Max | 2500VA | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 154 VDC | 22 VDC | 20 ms | 20 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1133920000RELAY GEN PURPOSE 3PDT 10A 115V |
0 |
|
- |
DRL | Bulk | Obsolete | Socketable | 115VAC | 3PDT (3 Form C) | 10 A | 250VAC - Max | 2500VA | 50 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1219350000RELAY GEN PURPOSE DPDT 16A 24V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 24VAC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 101.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219360000RELAY GEN PURPOSE DPDT 16A 48V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 48VAC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 50.5 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VAC | 14.4 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219380000RELAY GEN PURPOSE DPDT 16A 230V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 230VAC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 10.6 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 184 VAC | 69 VAC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219760000RELAY GEN PURPOSE DPDT 16A 110V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 13 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 82.5 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219770000RELAY GEN PURPOSE DPDT 16A 220V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 220VDC | DPDT (2 Form C) | 16 A | 400VAC - Max | 6400VA | 6.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 165 VDC | 22 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1219810000RELAY GEN PURPOSE 3PDT 16A 48V |
0 |
|
- |
DRW | Bulk | Obsolete | Socketable | 48VDC | 3PDT (3 Form C) | 16 A | 400VAC - Max | 6400VA | 30 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 36 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
725BXXSC3ML240APWRRY,DPSTNO,25A,240VAC,DIN/PANE |
0 |
|
Datasheet |
Harmony | Box | Obsolete | Chassis Mount | 240VAC | DPST-NO (2 Form A) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 11.4 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | - | 204 VAC | - | 30 ms | - | -20°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
0536260000RELAY GEN PURPOSE SPST 3A 24V |
0 |
|
Datasheet |
EG2R | Bulk | Obsolete | DIN Rail | 24VAC/DC | SPST-NO (1 Form A) | 3 A | 240VAC - Max | 1200VA | - | Non Latching | - | Screw Terminal | - | - | - | - | 8 ms | 22 ms | -25°C ~ 40°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
PRD-11AH0-208RELAY GEN PURPOSE DPDT 20A 208V |
0 |
|
Datasheet |
PRD | Bulk | Obsolete | Chassis Mount | 208VAC | DPDT (2 Form C) | 20 A | 600VAC, 125VDC - Nom | - | 41.7 mA | Non Latching | - | Screw Terminal | - | Class B | 176.8 VAC | 20.8 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | General Purpose | - | - |
