Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

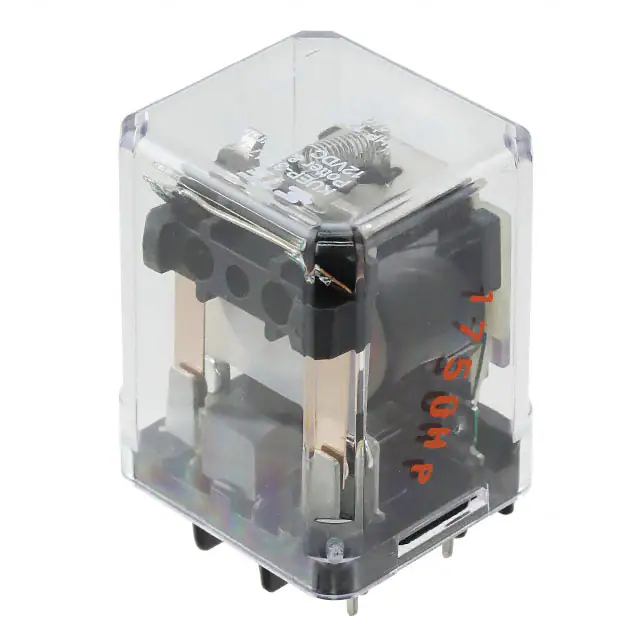

KUEP-3D17-12RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Datasheet |
KUEP | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (DM) (1 Form X) | 10 A | 150VDC - Max | 1500VA | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | - | 15 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
HE1AN-S-AC24VRELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Datasheet |
HE | Bulk | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 74 mA | Non Latching | - | Screw Terminal | - | - | 16.8 VAC | 3.6 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
HE1AN-S-AC48VRELAY GEN PURPOSE SPST 30A 48V |
0 |
|
Datasheet |
HE | Bulk | Active | Chassis Mount | 48VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 8310VA, 900W | 39 mA | Non Latching | - | Screw Terminal | - | - | 33.6 VAC | 7.2 VAC | 30 ms | 30 ms | -50°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
MK2P-I-DC12RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Datasheet |
MK | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 280W | 126 mA | Non Latching | Mechanical Indicator | Plug In, 8 Pin (Octal) | - | - | 9.6 VDC | 1.8 VDC | 30 ms | 20 ms | -10°C ~ 40°C | Silver (Ag) | General Purpose | - | - |
|
|
2765290000DRL573110L |
0 |
|
Datasheet |
DRL | Box | Active | Socketable | 110VDC | 4PDT (4 Form C) | 10 A | 250VAC, 24VDC - Max | 2500VA, 300W | 16.2 mA | Non Latching | Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | - | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
15925.2RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
Datasheet |
PRCU | Box | Active | DIN Rail | 24VAC/DC | DPDT (2 Form C) | 8 A | 400VAC - Max | 2400VA | 16.7 mA | Non Latching | - | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 7 ms | 2 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RH4B-UD-DC48VRELAY PLUG-IN 4PDT 10A 48VDC |
0 |
|
Datasheet |
RH | Bulk | Active | Socketable | 48VDC | 4PDT (4 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 31 mA | Non Latching | Diode | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RH4V2-UD-DC24VRELAY PCB 4PDT 10A 24VDC |
0 |
|
Datasheet |
RH | Bulk | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 62 mA | Non Latching | Diode | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RH4V2-UD-DC12VRELAY PCB 4PDT 10A 12VDC |
0 |
|
Datasheet |
RH | Bulk | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 125 mA | Non Latching | Diode | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RUC-2012-26-1110-LRELAY GEN PURPOSE DPDT 16A 110V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 110VDC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 12 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin | - | - | 88 VDC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2012-26-5120-LRELAY GEN PURPOSE DPDT 16A 120V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 62.8 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin | - | - | 96 VAC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2012-26-5230-LRELAY GEN PURPOSE DPDT 16A 230V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 32.5 mA | Non Latching | Lighted Indicator | Plug In, 8 Pin | - | - | 184 VAC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2022-26-1110-LRELAY GEN PURPOSE DPST 16A 110V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 110VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 12 mA | Non Latching | Lighted Indicator | Plug In, 6 Pin | - | - | 88 VDC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2022-26-5120-LRELAY GEN PURPOSE DPST 16A 120V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 120VAC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 62.8 mA | Non Latching | Lighted Indicator | Plug In, 6 Pin | - | - | 96 VAC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2022-26-5230-LRELAY GEN PURPOSE DPST 16A 230V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 230VAC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 32.5 mA | Non Latching | Lighted Indicator | Plug In, 6 Pin | - | - | 184 VAC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2052-26-1110-LRELAY GEN PURPOSE DPST 16A 110V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 110VDC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 12 mA | Non Latching | Lighted Indicator | Plug In, 6 Pin | - | - | 88 VDC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2052-26-5120-LRELAY GEN PURPOSE DPST 16A 120V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 120VAC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 62.8 mA | Non Latching | Lighted Indicator | Plug In, 6 Pin | - | - | 96 VAC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RUC-2052-26-5230-LRELAY GEN PURPOSE DPST 16A 230V |
0 |
|
- |
RUC | Bulk | Active | Socketable | 230VAC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 32.5 mA | Non Latching | Lighted Indicator | Plug In, 6 Pin | - | - | 184 VAC | - | 20 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RL2N-T-D242-POLE SCREW TERM FLNG 24VDC |
0 |
|
- |
RL | Bulk | Active | Chassis Mount | 24VDC | DPST-NO (DM) (2 Form X) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 79 mA | Non Latching | - | Screw Terminal | - | - | 19.2 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
RL2N-T-A242-POLE SCREW TERM FLNG 24VAC |
0 |
|
- |
RL | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (DM) (2 Form X) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 69.5 mA | Non Latching | - | Screw Terminal | - | - | 19.2 VAC | 2.4 VAC | 30 ms | 30 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
