Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6RL-1 DC24RELAY GEN PURPOSE SPDT 8A 24V |
4,908 |
|
Datasheet |
G6RL | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 2000VA | 9.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RT314018RELAY GEN PURPOSE SPDT 16A 18V |
2,120 |
|
Datasheet |
RT1, SCHRACK | Tube | Active | Through Hole | 18VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 12.6 VDC | 1.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G6B-1114P-1-US DC9RELAY GEN PURPOSE SPST 5A 9V |
985 |
|
Datasheet |
G6B | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.9 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
8869920000RELAY GEN PURPOSE DPDT 8A 24V |
6 |
|
Datasheet |
RCI | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 31.6 mA | Non Latching | - | PC Pin | - | - | 18 VAC | 3.6 VAC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RTE44012RELAY GEN PURPOSE DPST 8A 12V |
3,418 |
|
Datasheet |
RT2, SCHRACK | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 3200VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G2RL-1A-E-HA DC5RELAY GEN PURPOSE SPST 16A 5V |
1,018 |
|
Datasheet |
G2RL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
RY531005RELAY GEN PURPOSE SPST 8A 5V |
509 |
|
Datasheet |
RY, SCHRACK | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2-1393219-2RELAY GEN PURPOSE SPDT 5A 24V |
1,418 |
|
Datasheet |
PE, SCHRACK | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 8.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G5PZ-1A-E DC24RELAY GEN PURPOSE SPST 20A 24V |
3,967 |
|
Datasheet |
G5PZ | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 5000VA | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
ALZ51B48RELAY GEN PURPOSE SPST 16A 48V |
979 |
|
Datasheet |
ALZ | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J116F11AW12VDCS1.5RELAY GEN PURPOSE SPST 50A 12V |
385 |
|
Datasheet |
J116F1 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 50 A | 277VAC - Max | 13850VA | 125 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RTB14024RELAY GEN PURPOSE SPDT 12A 24V |
2,315 |
|
Datasheet |
RT1, SCHRACK | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
T9GS5L14-22RELAY GEN PURPOSE SPDT 20A 22V |
1,306 |
|
Datasheet |
T9G | Bulk | Active | Through Hole | 22VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 9600VA | 41 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
L114FL1CS5VDC.40RELAY GEN PURPOSE SPDT 20A 5V |
861 |
|
Datasheet |
L114FL | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 80 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
L114FL1CS12VDC.40RELAY GEN PURPOSE SPDT 20A 12V |
772 |
|
Datasheet |
L114FL | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 300VAC - Max | 6000VA | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
L114FL1AS5VDC.60DRELAY GEN PURPOSE SPST 20A 5V |
737 |
|
Datasheet |
L114FL | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 6000VA | 119 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G5RL-1A-E-TV8 DC24RELAY GEN PURPOSE SPST 16A 24V |
137 |
|
Datasheet |
G5RL | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
|
G5RL-1A-E-TV8 DC48RELAY GEN PURPOSE SPST 16A 48V |
185 |
|
Datasheet |
G5RL | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 9 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
G6RN-1-AP4 DC24RELAY GEN PURPOSE SPDT 8A 24V |
1,091 |
|
Datasheet |
G6RN | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC, 30VDC - Max | 2000VA, 240W | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|

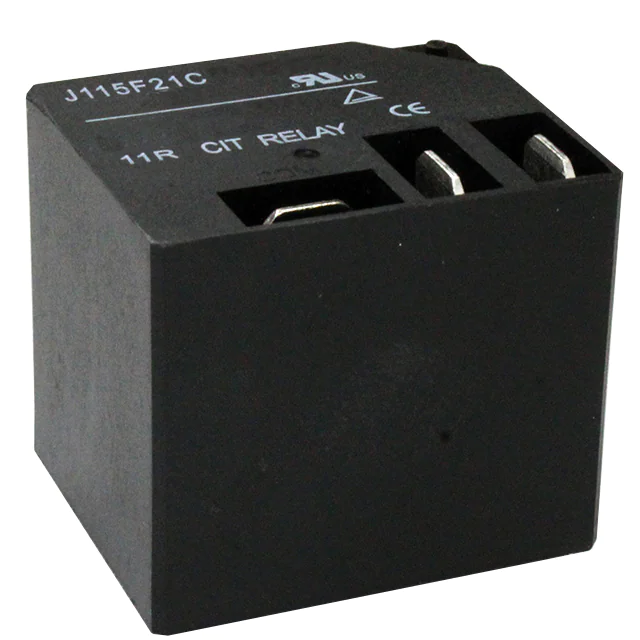

J115F21CH12VDCS61.5RELAY GEN PURPOSE SPDT 50A 12V |
384 |
|
Datasheet |
J115F | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC, 110VDC - Max | 13850VA, 5500W | 125 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
