Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

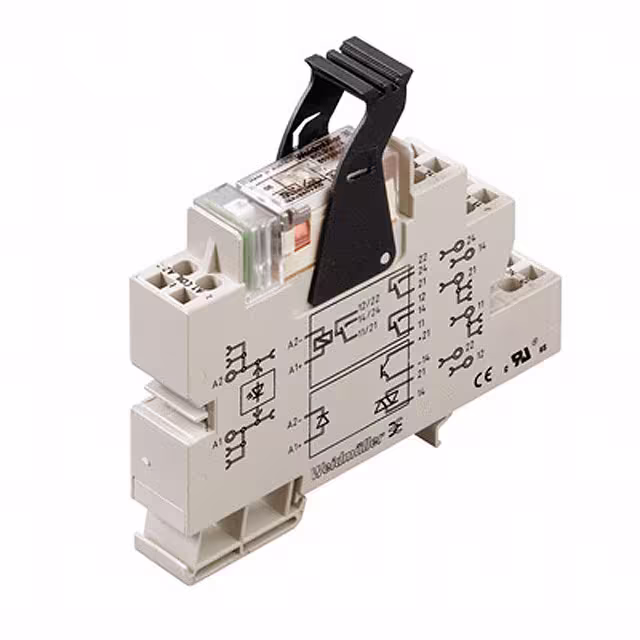

8536591001RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Datasheet |
PRZ | Bulk | Obsolete | DIN Rail | 12VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 33.3 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 8.4 VDC | 1.2 VDC | - | - | -40°C ~ 50°C | - | General Purpose | - | - |
|
15786.2RELAY GEN PURPOSE SPDT 12A 115V |
0 |
|
Datasheet |
PRSU | Box | Active | DIN Rail | 115VAC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 6.5 mA | Non Latching | - | Spring Terminal | - | - | 86.3 VAC | 17.3 VAC | 7 ms | 3 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
MKS2P1DDC12RELAY GEN PURPOSE DPDT 10A |
0 |
|
- |
MK-S | Bulk | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 112 mA | Non Latching | Diode, Mechanical Indicator | Plug In, 8 Pin (Octal) | - | - | 9.6 VDC | 1.8 VDC | 30 ms | 20 ms | -40°C ~ 60°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
1078801PLC-BPT- 12DC/ 1IC/ACT |
0 |
|
Datasheet |
PLC-BPT | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Spring Terminal | - | - | 10.32 VDC | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
1078800PLC-BSC- 12DC/ 1IC/ACT |
0 |
|
Datasheet |
PLC-BSC | Bulk | Active | DIN Rail | 12VDC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | Diode, Lighted Indicator, Socket Included | Screw Terminal | - | - | - | - | 8 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
66.82.8.120.0303C1D2 / ATEX POWER RELAY, DPST-NO |
0 |
|
Datasheet |
66 | Bulk | Obsolete | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 440VAC - Max | 13200VA | 30 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 96 VAC | 24 VAC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
66.82.8.230.0303C1D2 / ATEX POWER RELAY, DPST-NO |
0 |
|
Datasheet |
66 | Bulk | Obsolete | Chassis Mount | 230VAC | DPST-NO (2 Form A) | 30 A | 440VAC - Max | 13200VA | 15.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 184 VAC | 46 VAC | 8 ms | 10 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RL2B-T-A100-CMCARL2B W TERMINAL LABEL CHAMPION |
0 |
|
- |
RL | Bulk | Active | Chassis Mount | 100 ~ 120VAC | DPST-NO (DM) (2 Form X) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 16.6 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | 30 ms | 30 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
RL2B-T-A1002-POLE TAB TERM FLANGE 100VAC |
0 |
|
- |
RL | Bulk | Active | Chassis Mount | 100VAC | DPST-NO (DM) (2 Form X) | 25 A | 277VAC, 30VDC - Max | 6925VA, 750W | 16.6 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 80 VAC | 10 VAC | 30 ms | 30 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|
|
RSB1A120BDPVHARMONY, INTERFACE PLUG-IN RELAY |
0 |
|
Datasheet |
Harmony | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 12 A | 250VAC, 28VDC - Max | 3000VA, 336W | 16.7 mA | Non Latching | Lighted Indicator | Screw Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RH3B-UCAC120VRELAY PLUG-IN 3PDT 10A 120VAC |
0 |
|
Datasheet |
RH | Bulk | Active | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 14.2 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RH3B-UCAC24VRELAY PLUG-IN 3PDT 10A 24VAC |
0 |
|
Datasheet |
RH | Bulk | Active | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 240VAC, 30VDC - Max | 2400VA, 300W | 70 mA | Non Latching | Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -25°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
46.52.9.024.5000TRELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
Datasheet |
46 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 440VAC - Max | 3520VA | 20 mA | Non Latching | - | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 17.5 VDC | 4.8 VDC | 10 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
MT323220RELAY GEN PURPOSE 3PDT 10A 220V |
0 |
|
Datasheet |
MT, SCHRACK | Bulk | Obsolete | Socketable | 220VDC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 2500VA | 5.7 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 11 Pin (Octal) | - | Class B | 165 VDC | 22 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
15732U300RELAY GEN PURP |
0 |
|
- |
157, CII | Bulk | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 15 A | 277VAC, 28 VDC - Nom | 2.7VA | 26.4 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 204 VAC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
5-1393765-2RELAY GEN PURPOSE 4PDT 7.5A 24V |
0 |
|
Datasheet |
R10 | Bulk | Obsolete | Socketable | 24VDC | 4PDT (4 Form C) | 7.5 A | 120VAC - Nom | - | 13.3 mA | Non Latching | - | Plug In | - | - | 18 VDC | - | - | - | -55°C ~ 75°C | Gold Platinum Silver (AuPtAg) | General Purpose | - | - |
|
|
58.33.8.024.0060SPAINTERFACE MODULE, 3PDT 10A, 24V |
0 |
|
Datasheet |
58 | Bulk | Active | DIN Rail | 24VAC | 3PDT (3 Form C) | 10 A | 400VAC - Max | 4000VA | 53 mA | Non Latching | Lighted Indicator, Varistor | Screw Terminal | - | - | 19.2 VAC | 4.8 VAC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RU42S-M-A100RELAY 4PDT BIF 100-110VAC |
0 |
|
- |
RU | Bulk | Active | Socketable | 100 ~ 110VAC | 4PDT (4 Form C) | 3 A | 250VAC, 30VDC - Max | 2500VA, 300W | 7.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 14 Pin | - | - | - | - | 20 ms | 20 ms | -55°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RU42S-A100RELAY 4PDT BIF 100-110VAC |
0 |
|
- |
RU | Bulk | Active | Socketable | 100 ~ 110VAC | 4PDT (4 Form C) | 3 A | 250VAC, 30VDC - Max | 2500VA, 300W | 7.8 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 14 Pin | - | - | - | - | 20 ms | 20 ms | -55°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RU42S-A220RELAY PLUG-IN 4PDT 3A 240VAC |
0 |
|
- |
RU | Bulk | Active | Socketable | 220VAC | 4PDT (4 Form C) | 3 A | 250VAC, 30VDC - Max | 2500VA, 300W | 3.6 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 14 Pin | - | - | 176 VAC | 66 VAC | 20 ms | 20 ms | -55°C ~ 60°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
