Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T92S11D12-110-01RELAY GEN PURP PCB |
0 |
|
- |
T92 | Bulk | Active | Through Hole | 110VDC | DPDT (2 Form C) | 40 A | 600VAC - Max | 24000VA | 138.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 88 VDC | 11 VDC | 25 ms | 25 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
NC4EBD-DC5VRELAY GEN PURPOSE 4PDT 5A 5V |
0 |
|
Datasheet |
NC | Tube | Active | Socketable | 5VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 144 mA | Non Latching | - | Plug In | Sealed - Fully | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
NC4EBD-DC6VRELAY GEN PURPOSE 4PDT 5A 6V |
0 |
|
Datasheet |
NC | Tube | Active | Socketable | 6VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 120 mA | Non Latching | - | Plug In | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
NC4EBD-JP-DC5VRELAY GEN PURPOSE 4PDT 5A 5V |
0 |
|
Datasheet |
NC | Tray | Obsolete | Through Hole | 5VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 144 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
NC4EBD-JP-DC6VRELAY GEN PURPOSE 4PDT 5A 6V |
0 |
|
Datasheet |
NC | Box | Active | Through Hole | 6VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
NC4EBD-P-DC6VRELAY GEN PURPOSE 4PDT 5A 6V |
0 |
|
Datasheet |
NC | Box | Active | Through Hole | 6VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 120 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.8 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
RJ2S-CLD1-D24DPDT RELAY 8A 24VDC W/DIODE |
0 |
|
- |
RJ | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 8 A | 250VAC, 30VDC - Nom | - | 25.7 mA | Non Latching | Diode, Lighted Indicator, Reverse Coil Polarity | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RQ1V-CM-A230RELAY PCB SPDT 12A 240VAC |
0 |
|
- |
RQ | Bulk | Active | Through Hole | 230VAC | SPDT (1 Form C) | 12 A | - | - | 2.7 mA | Non Latching | - | PC Pin | - | - | 184 VAC | 69 VAC | 12 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RJ2S-CLD-D5GP RELAY DPDT 5VDC LED & DIODE |
0 |
|
- |
RJ | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 8 A | 250VAC, 30VDC - Nom | - | 106 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RJ2S-CLD1-D5GP RELAY DPDT 5VDC LED & DIODE |
0 |
|
- |
RJ | Bulk | Active | Socketable | 5VDC | DPDT (2 Form C) | 8 A | 250VAC, 30VDC - Nom | - | 106 mA | Non Latching | Diode, Lighted Indicator, Reverse Coil Polarity | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
66.82.8.024.0000RELAY GEN PURPOSE DPDT 30A 24V |
0 |
|
- |
66 | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 440VAC - Max | 13200VA | 150 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 4.8 VAC | 8 ms | 15 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
66.82.8.120.0000RELAY GEN PURPOSE DPDT 30A 120V |
0 |
|
- |
66 | Bulk | Obsolete | Chassis Mount | 120VAC | DPDT (2 Form C) | 30 A | 440VAC - Max | 13200VA | 30 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 96 VAC | 24 VAC | 8 ms | 15 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
66.82.9.012.0000RELAY GEN PURPOSE DPDT 30A 12V |
0 |
|
- |
66 | Bulk | Obsolete | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 440VAC - Max | 13200VA | 141 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | 9.6 VDC | 2.4 VDC | 8 ms | 15 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KUMP-11A5G-240RELAY GEN PURPOSE DPDT 15A 240V |
0 |
|
Datasheet |
KUMP | Bulk | Obsolete | Chassis Mount | 240VAC | DPDT (2 Form C) | 15 A | 277VAC - Max | 4155VA | 12 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 204 VAC | - | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RSLM100060RELAY GEN PURPOSE SPST 6A 60V |
0 |
|
- |
RSLM | Box | Not For New Designs | Through Hole | 60VDC | SPST-NO (1 Form A) | 6 A | 400VAC, 125VDC - Max | 2400VA, 750W | 3.6 mA | Non Latching | - | PC Pin | - | - | 45 VDC | 3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

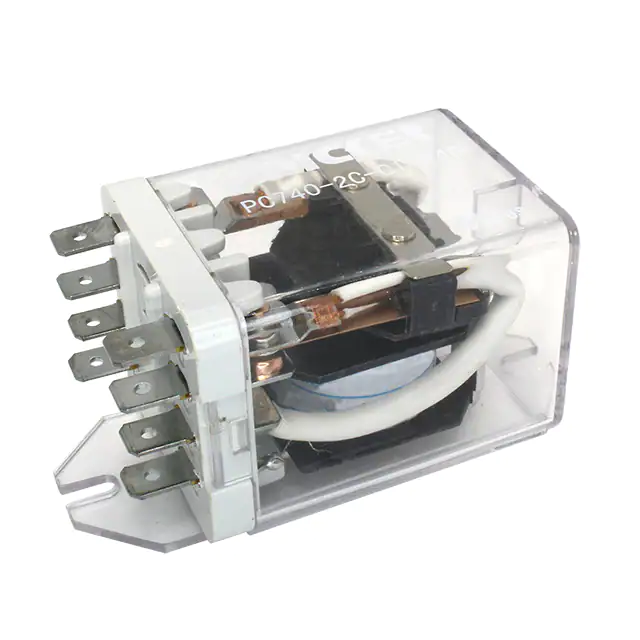

PC740-3C-C1-220ARELAY GEN PURPOSE 3PDT 40A 220V |
0 |
|
Datasheet |
PC740 | Bag | Active | Chassis Mount | 220VAC | 3PDT (3 Form C) | 40 A | 250VAC, 28VDC - Max | 10000VA, 1120W | 78 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 192 VAC | 66 VAC | 25 ms | 15 ms | -55°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
38.61.0.012.0060RELAY GEN PURPOSE SPDT 6A 12V |
0 |
|
Datasheet |
38 | Bulk | Active | DIN Rail | 12VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 16 mA | Non Latching | Socket Included | Spring Terminal | - | - | 9.6 VAC/DC | 1.2 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
SZRLY41PAC110120VRELAY GEN PURPOSE 4PDT 10A 120V |
0 |
|
- |
SZR-LY | Bulk | Obsolete | Through Hole | 120VAC | 4PDT (4 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 55 mA | Non Latching | - | PC Pin | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
3-1415546-6RELAY GEN PURPOSE 3PDT 16A 230V |
0 |
|
Datasheet |
RM, SCHRACK | Tray | Obsolete | Chassis Mount | 230VAC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 30.7 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 184 VAC | 69 VAC | 15 ms | 10 ms | -45°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
T92P7A24-120RELAY GEN PURPOSE DPST 30A 120V |
0 |
|
Datasheet |
T92 | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 600VAC - Max | 18000VA | 126.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 96 VAC | 12 VAC | 25 ms | 25 ms | -55°C ~ 65°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
