Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G5Q-1A-EL2-HA DC12RELAY GEN PURPOSE SPST 10A 12V |
518 |
|
Datasheet |
G5Q-EL2 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
OJE-SH-112DM,000RELAY GEN PURPOSE SPST 5A 12V |
1,829 |
|
Datasheet |
OJE, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
J104A2C48VDC.40SRELAY GEN PURPOSE DPDT 3A 48V |
499 |
|
Datasheet |
J104 | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 3 A | 250VAC, 220VDC - Max | 750VA, 660W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 4.8 VDC | 4.5 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
G5LE-1 DC3RELAY GEN PURPOSE SPDT 10A 3V |
157 |
|
Datasheet |
G5LE | Tray | Active | Through Hole | 3VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 133 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 2.25 VDC | 0.3 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ7555-1A-24DSKERELAY GEN PURPOSE SPST 20A 24V |
1,851 |
|
Datasheet |
AZ7555 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 277VAC, 30VDC - Max | 5000VA, 480W | 21.8 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 20 ms | 8 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

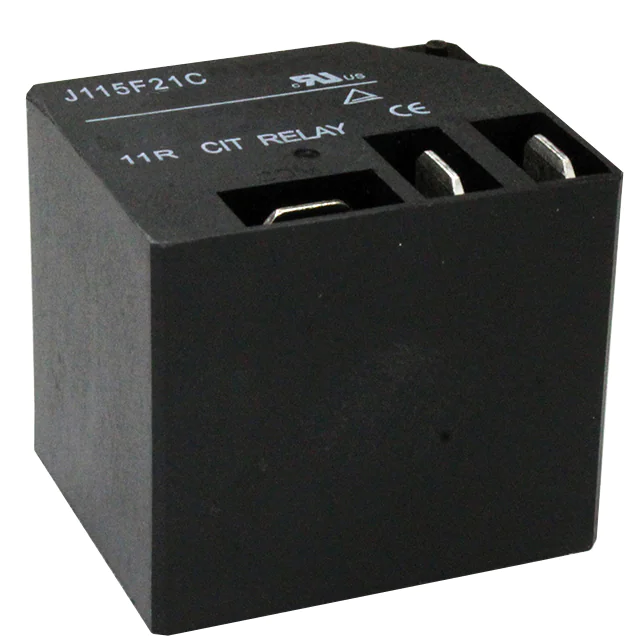

J115F21C24VDCS.9RELAY GEN PURPOSE SPDT 40A 24V |
816 |
|
Datasheet |
J115F2 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 11080VA, 4400W | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
OJS-SS-112HEF, 00000RELAY GEN PURPOSE SPST 16A 12V |
981 |
|
Datasheet |
OJS, OEG | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 250VAC - Max | 4000VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
PR10-24V-450-1CRELAY GEN PURPOSE SPDT 10A 24V |
864 |
|
Datasheet |
PR10 | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 28VDC - Max | 2500VA, 280W | 18.8 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | General Purpose | - | - |
|
G5NB-1A4-EL-HA DC24RELAY GEN PURPOSE SPST 7A 24V |
4,461 |
|
Datasheet |
G5NB-EL | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
OJE-SS-105LMH,000RELAY GEN PURPOSE SPST 8A 5V |
435 |
|
Datasheet |
OJE, OEG | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 40 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.25 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OJS-SH-105HMF, 00000RELAY GEN PURPOSE SPST 10A 5V |
171 |
|
Datasheet |
OJS, OEG | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Max | 2500VA | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.25 VDC | 15 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
G5LE-1 DC48RELAY GEN PURPOSE SPDT 10A 48V |
467 |
|
Datasheet |
G5LE | Tray | Active | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 36 VDC | 4.8 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALDP1F05WRELAY GEN PURPOSE SPST 5A 5V |
270 |
|
Datasheet |
ALDP | Box | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 1385VA | 40 mA | Non Latching | - | PC Pin | - | Class F | 3.75 VDC | 0.25 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AHQSH112DM2F00GRELAY GEN PURPOSE SPST 16A 12V |
1,604 |
|
Datasheet |
AHQ | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 24VDC - Max | 4432VA, 384W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9.6 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 105°C | Silver Alloy | General Purpose | - | - |
|
J117F1CS5VDCRELAY GEN PURPOSE SPDT 10A 5V |
913 |
|
Datasheet |
J117F | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 400VAC, 150VDC - Max | 4000VA, 1500W | 43.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RZ01-1A4-D005RELAY GEN PURPOSE SPST 12A 5V |
8,004 |
|
Datasheet |
RZ, SCHRACK | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 4800VA | 83.3 mA | Non Latching | - | PC Pin | - | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G5LE-14 DC36RELAY GEN PURPOSE SPDT 10A 36V |
567 |
|
Datasheet |
G5LE | Bulk | Active | Through Hole | 36VDC | SPDT (1 Form C) | 10 A | 250VAC, 125VDC - Max | - | 11.1 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 27 VDC | 3.6 VDC | 10 ms | 5 ms | -25°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2100-1CE-5DEFRELAY GEN PURPOSE SPDT 40A 5V |
3,346 |
|
Datasheet |
AZ2100 | Tray | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 185.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
OJE-SS-105DM,000RELAY GEN PURPOSE SPST 5A 5V |
1,233 |
|
Datasheet |
OJE, OEG | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 91 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
OJT-SS-112LM,000RELAY GEN PURPOSE SPST 5A 12V |
438 |
|
Datasheet |
OJT, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC - Max | 1250VA | 27.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
