Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2800-2CE-240A6ERELAY GEN PURPOSE DPDT 40A 240V |
0 |
|
Datasheet |
AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RXM3AB2F7HARMONY, MINIATURE PLUG-IN RELAY |
0 |
|
Datasheet |
Harmony | Box | Active | Socketable | 120VAC | 3PDT (3 Form C) | 6.7 A | 250VAC, 28VDC - Max | 1675VA, 187.6W | 27.1 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 96 VAC | 18 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RM203615RELAY GEN PURPOSE DPDT 16A 115V |
0 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 115VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 57.5 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187" (4.7mm) | - | - | 92 VAC | 34.5 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RM205524RELAY GEN PURPOSE DPDT 16A 24V |
0 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 24VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | 300 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.250" (6.3mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
2908897REL-OR3/LDP-48DC/3X21 |
0 |
|
Datasheet |
REL-OR | Bulk | Active | Socketable | 48VDC | 3PDT (3 Form C) | 10 A | 250VAC, 250VDC - Max | - | - | Non Latching | Diode | Plug In, 11 Pin (Octal) | - | - | - | - | 18 ms | 20 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2701-2A-220ARELAY GEN PURPOSE DPST 30A 220V |
0 |
|
Datasheet |
AZ2701 | Box | Active | Chassis Mount | 220VAC | DPST-NO (2 Form A) | 30 A | 400VAC, 150VDC - Max | 8310VA, 840W | 10 mA | Non Latching | - | Plug In, Quick Connect - 0.250" (6.3mm) | - | Class B | 176 VAC | 33 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
55.32.8.230.0000RELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
Datasheet |
55 | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 6 mA | Non Latching | - | Plug In | - | - | 184 VAC | 46 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
55.32.8.240.0040RELAY GEN PURPOSE DPDT 10A 240V |
0 |
|
Datasheet |
55 | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 5.3 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 192 VAC | 48 VAC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
40.52.8.240.0001RELAY GEN PURPOSE DPDT 8A 240V |
0 |
|
Datasheet |
40 | Bulk | Active | Socketable | 240VAC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 4.1 mA | Non Latching | - | Plug In | - | - | 192 VAC | 48 VAC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
55.32.9.012.0094RELAY GEN PURPOSE DPDT 10A 12V |
0 |
|
Datasheet |
55 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 400VAC - Max | 4000VA | 86 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | 9.6 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
LY1F-AC12RELAY GEN PURPOSE SPDT 15A 12V |
4 |
|
Datasheet |
LY | Bulk | Obsolete | Chassis Mount | 12VAC | SPDT (1 Form C) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 91 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Alloy | General Purpose | - | - |
|

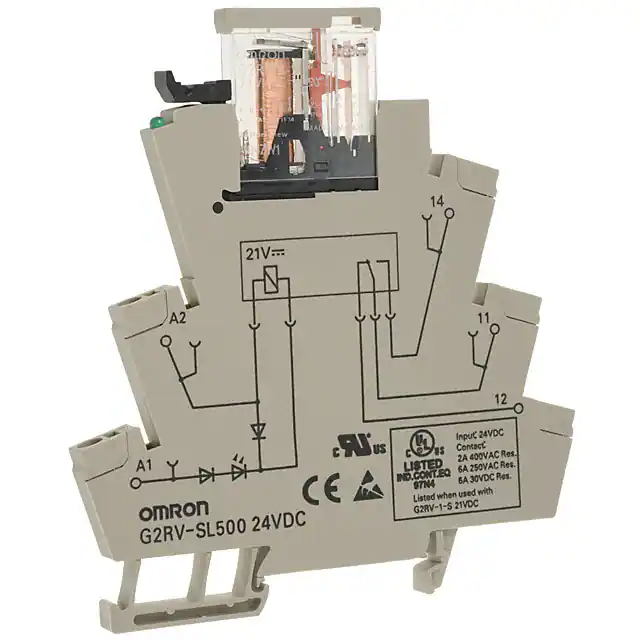

G2RV-SL500 DC24 (DC21)RELAY GEN PURPOSE SPDT 6A 24V |
0 |
|
Datasheet |
G2RV | Bulk | Obsolete | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 440VAC, 125VDC - Max | 2640VA, 750W | 13.3 mA | Non Latching | Socket Included | Spring Terminal | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 40 ms | -40°C ~ 55°C | Silver Tin Indium (AgSnIn) | General Purpose | - | - |
|
|
56.32.9.012.0000RELAY GEN PURPOSE DPDT 12A 12V |
0 |
|
Datasheet |
56 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 86 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
56.32.9.012.0040RELAY GEN PURPOSE DPDT 12A 12V |
0 |
|
Datasheet |
56 | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 86 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VDC | 2.4 VDC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
56.32.8.120.0000RELAY GEN PURPOSE DPDT 12A 120V |
0 |
|
Datasheet |
56 | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 12 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 96 VAC | 24 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
56.32.8.012.0040RELAY GEN PURPOSE DPDT 12A 12V |
0 |
|
Datasheet |
56 | Bulk | Active | Socketable | 12VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 97 mA | Non Latching | Mechanical Indicator, Test Button | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9.6 VAC | 2.4 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
56.32.8.024.0000RELAY GEN PURPOSE DPDT 12A 24V |
0 |
|
Datasheet |
56 | Bulk | Active | Socketable | 24VAC | DPDT (2 Form C) | 12 A | 400VAC - Max | 4800VA | 53 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 4.8 VAC | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2850-2CE-24DERELAY GEN PURPOSE DPDT 40A 24V |
0 |
|
Datasheet |
AZ2850 | Box | Active | Through Hole | 24VDC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 68.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
8870210000RELAY GEN PURPOSE DPDT 8A 24V |
0 |
|
Datasheet |
RCI | Bulk | Active | Through Hole | 24VAC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 31.6 mA | Non Latching | Lighted Indicator | PC Pin | - | - | 18 VAC | 3.6 VAC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2765330000RELAY GEN PURPOSE DPDT 10A 230V |
0 |
|
Datasheet |
DRR | Bulk | Active | Socketable | 230VAC | DPDT (2 Form C) | 10 A | 250VAC, 24VDC - Max | 2500VA, 240W | 14.9 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | 30 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
