Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4-1419136-4RELAY GEN PURPOSE DPDT 15A 48V |
0 |
|
Datasheet |
RT, SCHRACK | Tube | Active | Through Hole | 48VDC | DPDT (2 Form C) | 15 A | 400VAC - Max | 6000VA | 8.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
8870170000RELAY GEN PURPOSE DPDT 8A 12V |
1 |
|
Datasheet |
RCI | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 250VAC - Max | 2000VA | 33.3 mA | Non Latching | Diode, Lighted Indicator | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 10 ms | 4 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ165-2C-220ARELAY GEN PURPOSE DPDT 7A 220V |
0 |
|
Datasheet |
AZ165 | Box | Active | Socketable | 220VAC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 5.5 mA | Non Latching | - | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
AZ165-2C-240ARELAY GEN PURPOSE DPDT 7A 240V |
0 |
|
Datasheet |
AZ165 | Box | Active | Socketable | 240VAC | DPDT (2 Form C) | 7 A | 250VAC, 30VDC - Max | 1750VA, 210W | 5 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -55°C ~ 70°C | Silver Cerium (AgCe) | General Purpose | - | - |
|
|
3-1415536-3RTE23012 |
0 |
|
Datasheet |
RT, SCHRACK | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2501P1-1A-6DRELAY GEN PURPOSE SPST 50A 6V |
0 |
|
Datasheet |
AZ2501 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 50 A | 440VAC - Max | 13850VA | 250 mA | Latching, Single Coil | - | PC Pin | - | - | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ762-1C-115AEFRELAY GEN PURPOSE SPDT 16A 115V |
0 |
|
Datasheet |
AZ762 | Box | Active | Through Hole | 115VAC | SPDT (1 Form C) | 16 A | 440VAC, 150VDC - Max | 5540VA, 480W | 14.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.25 VAC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
AZ762-1C-115AERELAY GEN PURPOSE SPDT 20A 115V |
0 |
|
Datasheet |
AZ762 | Box | Active | Through Hole | 115VAC | SPDT (1 Form C) | 20 A | 440VAC, 125VDC - Max | 5540VA, 480W | 6.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 86.3 VAC | 17.25 VAC | 10 ms | 8 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
AZ743-2C-24AEFRELAY GEN PURPOSE DPDT 10A 24V |
0 |
|
Datasheet |
AZ743 | Box | Active | Through Hole | 24VAC | DPDT (2 Form C) | 10 A | 400VAC, 150VDC - Max | 2770VA, 240W | 31.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VAC | 3.6 VAC | 7 ms | 4 ms | -40°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
T9ES5D24-12RELAY GEN PURPOSE SPDT 20A 12V |
0 |
|
Datasheet |
T9E | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 20 A | 250VAC - Max | 5000VA | 83.3 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
G2R-24 DC15RELAY GEN PURPOSE DPDT 4A 15V |
0 |
|
Datasheet |
G2R | Tray | Obsolete | Through Hole | 15VDC | DPDT (2 Form C) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 35.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 10.5 VDC | 2.25 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
PCLH-102D1S,000RELAY GEN PURPOSE SPDT 15A 12V |
0 |
|
Datasheet |
PCLH, OEG | Tube | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 15 A | 250VAC, 24VDC - Max | 3750VA, 360W | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | Class F | 9.6 VDC | 1.2 VDC | 15 ms | 8 ms | -40°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

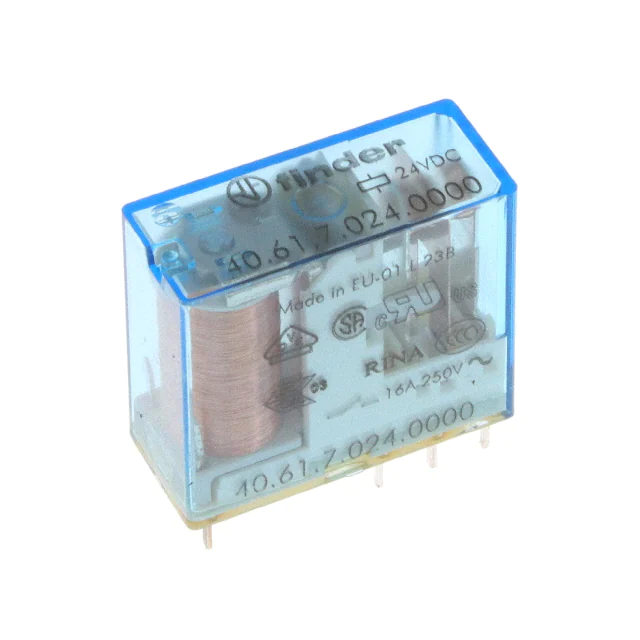

40.61.7.024.0000RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Datasheet |
40 | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 21 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
40.61.9.024.0000RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Datasheet |
40 | Bulk | Obsolete | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
40.61.7.024.2020RELAY GEN PURPOSE SPDT 16A 24V |
0 |
|
Datasheet |
40 | Bulk | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 21 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 17.5 VDC | 2.4 VDC | 10 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
40.61.9.024.0300RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Datasheet |
40 | Bulk | Obsolete | Socketable | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
40.61.7.012.0000RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
Datasheet |
40 | Bulk | Obsolete | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 42 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 8.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
40.61.7.012.1020RELAY GEN PURPOSE SPDT 16A 12V |
0 |
|
Datasheet |
40 | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 42 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RM85-2021-35-1048RELAY GEN PURPOSE SPST 16A 48V |
0 |
|
- |
RM85 | Bulk | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 16 A | 440VAC - Max | 7040VA | 8.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 33.6 VDC | - | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
2-1415539-0PE514F03 |
0 |
|
Datasheet |
PE, SCHRACK | Tube | Active | Through Hole | 3VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | - | 8 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
