Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

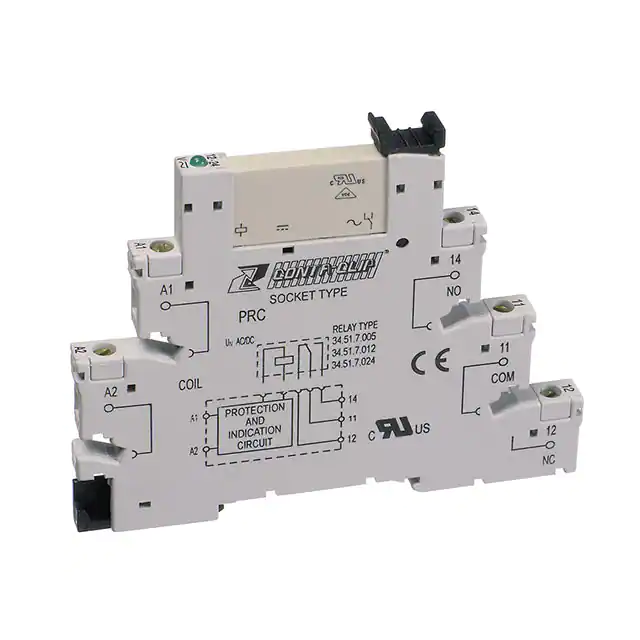

15512.2RELAY GEN PURPOSE SPDT 6A 230V Conta-Clip, Inc. |
81 |
|
Datasheet |
PRCU | Box | Active | DIN Rail | 230VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | - | Non Latching | - | Screw Terminal | - | - | 184 VAC/DC | 23 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
15525.2RELAY GEN PURPOSE SPDT 6A 12V Conta-Clip, Inc. |
22 |
|
Datasheet |
ZPRCU | Box | Active | DIN Rail | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | - | Non Latching | - | Spring Terminal | - | - | 9.6 VDC | 0.6 VDC | 5 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
15515.2RELAY GEN PURPOSE SPDT 6A 24V Conta-Clip, Inc. |
90 |
|
Datasheet |
PRCU | Box | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | - | Non Latching | - | Screw Terminal | - | - | 19.2 VDC | 1.2 VDC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
15508.2RELAY GEN PURPOSE SPDT 6A 24V Conta-Clip, Inc. |
10 |
|
Datasheet |
PRCU | Box | Active | DIN Rail | 24VAC/DC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | - | Non Latching | - | Screw Terminal | - | - | 19.2 VAC/DC | 2.4 VAC/DC | 5 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
6804.0RELAY GEN PURPOSE SPDT 12A 24V Conta-Clip, Inc. |
0 |
|
- |
PRS | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
6482.2RELAY GEN PURPOSE DPDT 8A 12V Conta-Clip, Inc. |
0 |
|
Datasheet |
PRS | Box | Active | Socketable | 12VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 3200VA | 33.3 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
6996.0RELAY GEN PURPOSE SPDT 12A 12V Conta-Clip, Inc. |
0 |
|
- |
PRS | Box | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 400VAC - Max | 4800VA | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
15501.2RELAY GEN PURPOSE SPDT 6A 12V Conta-Clip, Inc. |
0 |
|
Datasheet |
PRC | Box | Active | Socketable | 12VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 14.2 mA | Non Latching | - | Plug In | - | - | 8.4 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
15500.2RELAY GEN PURPOSE SPDT 6A 5V Conta-Clip, Inc. |
0 |
|
Datasheet |
PRC | Box | Active | Socketable | 5VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 34 mA | Non Latching | - | Plug In | - | - | 3.5 VDC | 0.25 VDC | 12 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
15502.2RELAY GEN PURPOSE SPDT 6A 24V Conta-Clip, Inc. |
0 |
|
Datasheet |
PRC | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 6 A | 400VAC - Max | 2400VA | 7.1 mA | Non Latching | - | Plug In | - | - | 16.8 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
