Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TBR-MB-6-1P-SCRELAY GEN PURPOSE SPDT 6A 12V c3controls |
181 |
|
Datasheet |
TBR | Bag | Active | DIN Rail | 12VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 30VDC - Max | - | - | Non Latching | - | Screw Terminal | - | - | 10.8 VAC/DC | 1.2 VAC/DC | 8 ms | 4 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
TBR-MF-6-1P-SCRELAY GEN PURP SPDT 6A 220-240V c3controls |
154 |
|
Datasheet |
TBR | Bag | Active | DIN Rail | 220 ~ 240VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 30VDC - Max | - | - | Non Latching | - | Screw Terminal | - | - | - | - | 8 ms | 4 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

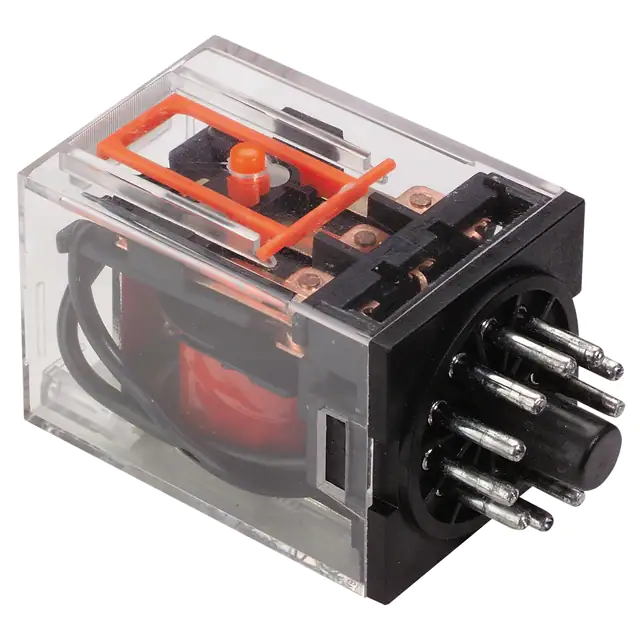

GPRS-P2C10D-1RELAY GEN PURPOSE DPDT 10A 120V c3controls |
0 |
|
Datasheet |
GR | Bag | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Max | - | 21 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -10°C ~ 40°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
GPRS-P2C10D-3RELAY GEN PURPOSE DPDT 10A 120V c3controls |
0 |
|
Datasheet |
GR | Bag | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | - | - | - | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | - | - | General Purpose | - | - |
|
HGPRM-B4C05ZCRELAY GEN PURPOSE 4PDT 5A 24V c3controls |
0 |
|
Datasheet |
GR | Box | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | - | 36.9 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 19.2 VDC | 2.4 VDC | 13 ms | 6 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
HGPRM-B4C05DRELAY GEN PURPOSE 4PDT 5A 120V c3controls |
0 |
|
Datasheet |
GR | Box | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 240VAC, 30VDC - Max | - | 27.1 mA | Non Latching | - | Plug In | Sealed - Hermetically | - | 102 VAC | 18 VAC | 13 ms | 6 ms | -40°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
HGPRS-P2C12ZCRELAY GEN PURPOSE DPDT 12A 24V c3controls |
0 |
|
Datasheet |
GR | Box | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 240VAC, 28VDC - Max | - | 51.1 mA | Non Latching | - | Plug In, 8 Pin (Octal) | Sealed - Hermetically | - | 19.2 VDC | 2.4 VDC | 15 ms | 10 ms | -45°C ~ 55°C | Silver (Ag) | General Purpose | - | - |
|

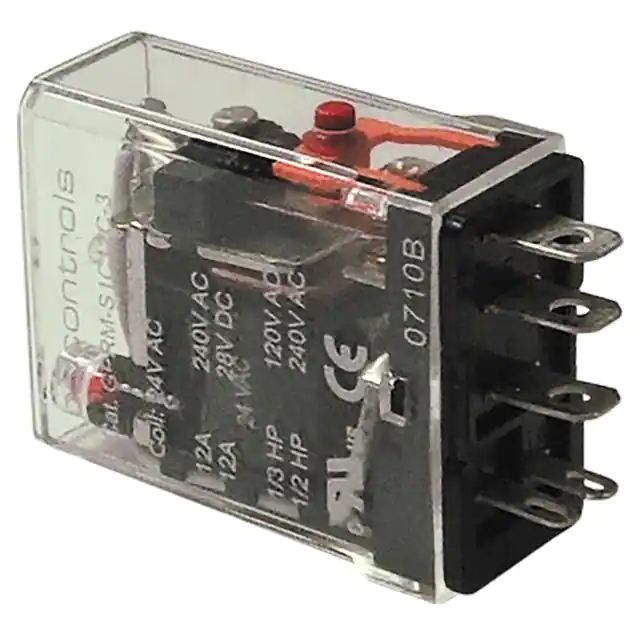

GPRM-S1C12ZCRELAY GEN PURPOSE SPDT 12A 24V c3controls |
0 |
|
Datasheet |
GR | Bag | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 240VAC, 24VDC - Max | - | 32 mA | Non Latching | - | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -30°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

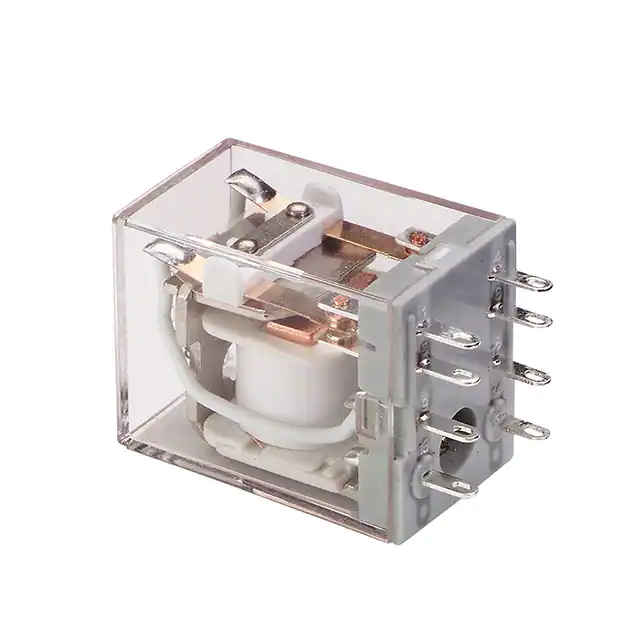

GPRM-B2C10DRELAY GEN PURPOSE DPDT 10A 120V c3controls |
0 |
|
Datasheet |
GR | Bag | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 240VAC, 28VDC - Max | - | 11.5 mA | Non Latching | - | Plug In | - | - | 96 VAC | 36 VAC | 25 ms | 25 ms | -25°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
GPRS-B3C20D-3RELAY GEN PURPOSE 3PDT 20A 120V c3controls |
0 |
|
Datasheet |
GR | Bag | Active | Socketable | 120VAC | 3PDT (3 Form C) | 20 A | - | - | - | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, 11 Pin (Octal) | - | - | - | - | - | - | - | - | General Purpose | - | - |
