Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J1021CS3P6VDC.36RELAY GEN PURPOSE SPDT 3A 6V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS3P9VDC.45RELAY GEN PURPOSE SPDT 3A 9V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS3P5VDC.45RELAY GEN PURPOSE SPST 3A 5V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS3P5VDC.20RELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS3P12VDC.20RELAY GEN PURPOSE SPST 3A 12V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS3P6VDC.20RELAY GEN PURPOSE SPDT 3A 6V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS3P12VDC.20RELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS3P12VDC.36RELAY GEN PURPOSE SPDT 3A 12V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS3P5VDC.45RELAY GEN PURPOSE SPDT 3A 5V |
0 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 900VA, 450W | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
PR25-6V-S-360-1A19 X 15.3 X 15.7 MM, 6 V, 15 A, |
0 |
|
Datasheet |
PR25 | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 15 A | 300VAC, 30VDC - Max | 2770VA, 300W | 60 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 4.5 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

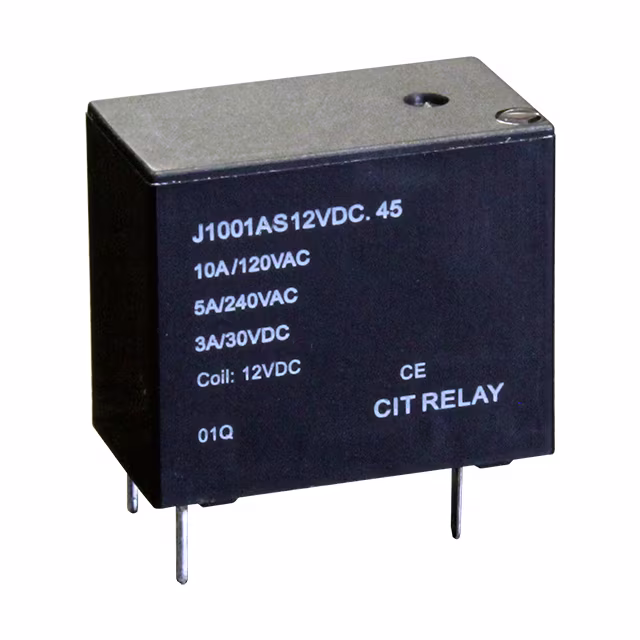

J1001AS12VDC.45RELAY GEN PURPOSE SPST 10A 12V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

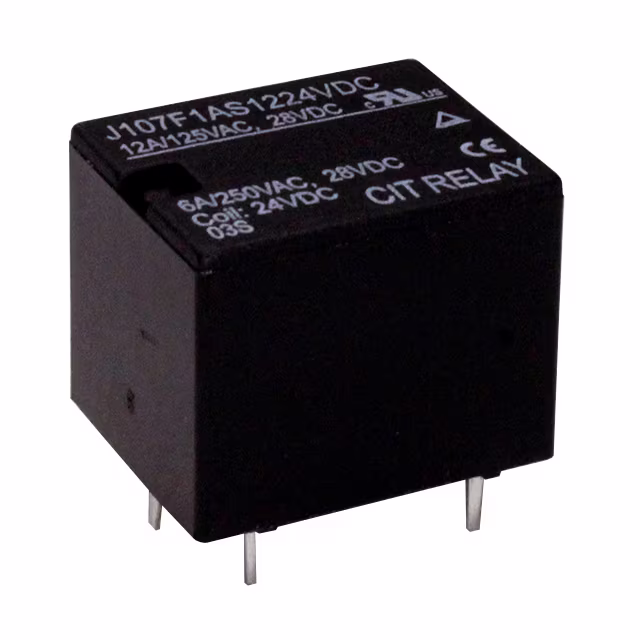

J107F1AS1224VDC.45RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
PC312-12H-XRELAY TELECOM SPDT 3A 12V |
0 |
|
Datasheet |
PC312 | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 48VDC - Max | 900VA, 144W | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -25°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | Telecom | - | - |
|
J1001AS9VDC.45RELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1001AS9VDC.20RELAY GEN PURPOSE SPST 10A 9V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1001AS5VDC.45RELAY GEN PURPOSE SPST 10A 5V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1001AS3VDC.45RELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 150 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1001AS3VDC.20RELAY GEN PURPOSE SPST 10A 3V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 3VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J1001AS6VDC.20RELAY GEN PURPOSE SPST 10A 6V |
0 |
|
Datasheet |
J100 | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J107F1AS1224VDC.80RELAY GEN PURPOSE SPST 12A 24V |
0 |
|
Datasheet |
J107F | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 380VAC, 110VDC - Max | 4560VA, 1320W | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
