Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J115F1E1AS48DSX.9FZRELAY GEN PURPOSE SPST N.O. 30A |
0 |
|
- |
* | Tube | Active | Through Hole | 48VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F1E1CS48DSX.9BCRELAY GEN PURPOSE SPDT 30A 48VDC |
0 |
|
- |
* | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J115F1E1CS24DSX.9FZRELAY GEN PURPOSE SPDT 30A 24VDC |
0 |
|
- |
* | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F1E1CS48DSX.9FZRELAY GEN PURPOSE SPDT 30A 48VDC |
0 |
|
- |
* | Tube | Active | Through Hole | 48VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F1E1AS110DSX.9FZRELAY GEN PURPOSE SPST N.O. 30A |
0 |
|
- |
* | Tube | Active | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J115F1E1CS110DSX.9BCRELAY GEN PURPOSE SPDT 30A 110VD |
0 |
|
- |
* | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
J115F11A12VDCSH.9SPST RELAY |
0 |
|
Datasheet |
J115F | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
J115F1E1CS110DSX.9FZRELAY GEN PURPOSE SPDT 30A 110VD |
0 |
|
- |
* | Tube | Active | Through Hole | 110VDC | SPDT (1 Form C) | 30 A | 277VAC, 110VDC - Max | 7200VA, 840W | 8.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
7760056059RELAY GEN PURPOSE DPDT 10A 12V |
16 |
|
Datasheet |
DRM | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 75 mA | Non Latching | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1032526REL-IR-BL/L- 24DC/2X21 |
0 |
|
Datasheet |
REL-MR | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 12 A | 250VAC, 250VDC - Max | - | 32 mA | Non Latching | Mechanical Indicator, Test Button | Plug In | - | - | 19.2 VDC | - | 15 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2-2158000-9RELAY GEN PURPOSE SPST 16A 24V |
1 |
|
Datasheet |
RZ, SCHRACK | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
8693240000RELAY GEN PURPOSE SPDT 16A 12V |
19 |
|
Datasheet |
RCL | Bulk | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 33.3 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
RC1V-A-D24PCB RELAY 12A SPST-NO 24VDC |
20 |
|
Datasheet |
RC | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 12 A | 440VAC, 300VDC - Max | 5280VA, 3600W | 17 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|

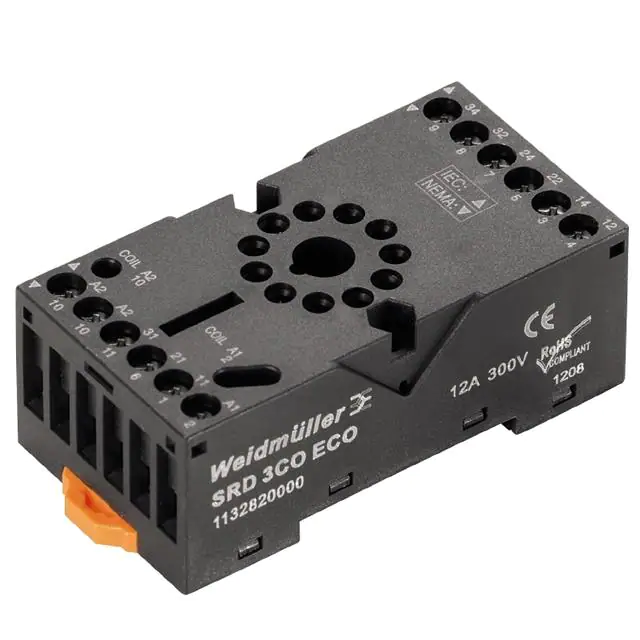

1132820000RELAY GEN PURPOSE 3PDT 12A |
6 |
|
Datasheet |
DRR | Bulk | Active | DIN Rail | - | 3PDT (3 Form C) | 12 A | 250VAC - Max | 3000VA | - | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 65°C | - | General Purpose | - | - |
|
7760056185RELAY GEN PURPOSE DPDT 10A 24V |
8 |
|
Datasheet |
DRM | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 36.9 mA | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
7760056335DRI424012LD |
20 |
|
Datasheet |
DRI | Bulk | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA | 44.4 mA | Non Latching | Diode, Lighted Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 9 VDC | 1.8 VDC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
7760056183RELAY DPDT 10A 24V |
10 |
|
Datasheet |
DRM | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 36.9 mA | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
7760056341DRI424048LTD |
20 |
|
Datasheet |
DRI | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 250VAC, 250VDC - Max | 1250VA | 11.2 mA | Non Latching | Diode, Lighted Indicator, Test Button | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 36 VDC | 7.2 VDC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
7760056070RELAY GEN PURPOSE DPDT 10A 48V |
1 |
|
Datasheet |
DRM | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 10 A | 250VAC - Max | 2500VA | 18.5 mA | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
7760056187RELAY GEN PURPOSE 4PDT 5A 24V |
8 |
|
Datasheet |
DRM | Bulk | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC - Max | 1250VA | 38.1 mA | Non Latching | - | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Frequently Asked Questions
Q1: What products are included in Power Relays, Over 2 Amps?
This category includes related Power Relays, Over 2 Amps subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Power Relays, Over 2 Amps components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Power Relays, Over 2 Amps and other electronic components.
