Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RM202506RELAY GEN PURPOSE DPDT 16A 6V |
0 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Socketable | 6VAC | DPDT (2 Form C) | 16 A | 440VAC - Max | 7040VA | - | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 4.8 VAC | 1.8 VAC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G7L-1A-T-CB DC100RELAY GEN PURPOSE SPST 30A 100V |
0 |
|
Datasheet |
G7L | Bulk | Active | Chassis Mount | 100VDC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 19 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VDC | 15 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
2903356RELAY GEN PURPOSE SPDT 10A 120V |
97 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 120VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | - | 8 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 12 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2903322RELAY GEN PURPOSE DPDT 8.5A 120V |
14 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 120VAC | DPDT (2 Form C) | 8.5 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2903323RELAY GEN PURPOSE DPDT 8.5A 24V |
10 |
|
Datasheet |
RIF | Bulk | Obsolete | DIN Rail | 24VAC | DPDT (2 Form C) | 8.5 A | 250VAC, 250VDC - Max | - | 66 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 15 ms | 20 ms | -40°C ~ 50°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
1-1415898-0RELAY GEN PURPOSE SPST 16A 24V |
0 |
|
Datasheet |
RT1, SCHRACK | Tray | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 27.1 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | - | 10 ms | 10 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO), Tungsten (W) | General Purpose | - | - |
|
RPM21E7HARMONY, POWER PLUG-IN RELAY, 15 |
10 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 48VAC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 67.8 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RXM4GB1JDHARMONY, MINIATURE PLUG-IN RELAY |
9 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 12VDC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 750VA, 84W | 75 mA | Non Latching | Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
2617870000RELAY GEN PURPOSE SPDT 6A 60V |
50 |
|
Datasheet |
TERMSERIES | Box | Active | DIN Rail | 60VAC/DC | SPDT (1 Form C) | 6 A | 250VAC, 250VDC - Max | - | 4.8 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | - | - | 7 ms | 50 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
G2R-2-S AC12(S)RELAY GEN PURPOSE DPDT 5A 12V |
30 |
|
Datasheet |
G2RS | Bulk | Obsolete | Socketable | 12VAC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 75 mA | Non Latching | - | Plug In | - | - | 9.6 VAC | 3.6 VAC | 15 ms | 15 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
RM703012RELAY GEN PURPOSE 3PDT 16A 12V |
0 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 12VDC | 3PDT (3 Form C) | 16 A | 440VAC - Max | 7040VA | 140 mA | Non Latching | Mechanical Indicator | Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -45°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
1123720000RELAY GEN PURPOSE DPDT 8A 12V |
23 |
|
Datasheet |
TERMSERIES | Bulk | Active | DIN Rail | 12VDC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 33 mA | Non Latching | - | Screw Terminal | - | - | - | - | 8 ms | 12 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RPM21FDHARMONY, POWER PLUG-IN RELAY, 15 |
10 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 3750VA, 420W | 8.2 mA | Non Latching | Test Button | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RXM4GB1E7HARMONY, MINIATURE PLUG-IN RELAY |
7 |
|
Datasheet |
Harmony | Box | Obsolete | Socketable | 48VAC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 750VA, 84W | 67.6 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
RXM4AB1B7HARMONY, MINIATURE PLUG-IN RELAY |
19 |
|
Datasheet |
Harmony | Box | Active | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 250VAC, 28VDC - Max | 1250VA, 140W | 133.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 19.2 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
1-1608052-2RELAY GEN PURPOSE 3PDT 10A 12V |
0 |
|
Datasheet |
157, CII | Tray | Active | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 240VAC, 28VDC - Nom | 2400VA, 280W | 100 mA | Non Latching | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 9 VDC | - | 20 ms | 10 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
15723B200General Purpose Relays 15723B200 |
30 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RCI003A120VRELAY GEN PURPOSE 3PDT 10A 120V |
36 |
|
Datasheet |
RCI | Bulk | Obsolete | Socketable | 120VAC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | - | 72.7 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

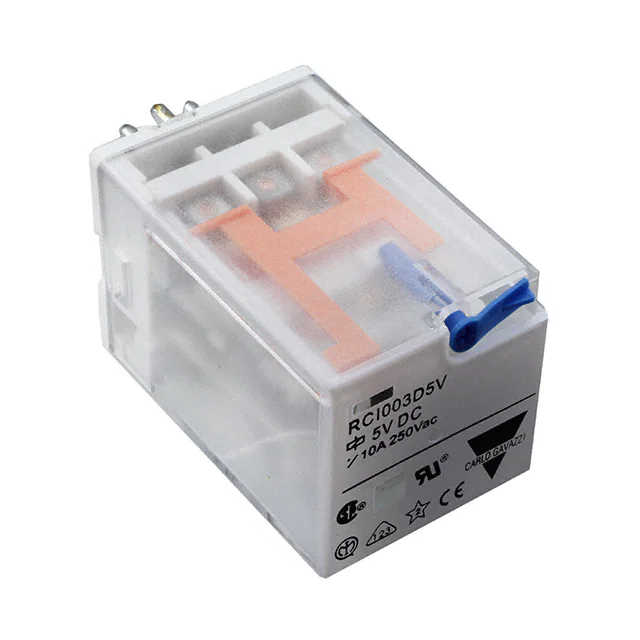

RCI003D5VRELAY GEN PURPOSE 3PDT 10A 5V |
31 |
|
Datasheet |
RCI | Bulk | Obsolete | Socketable | 5VDC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | - | 320 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 4 VDC | 0.5 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
RCI003D12VRELAY GEN PURPOSE 3PDT 10A 12V |
20 |
|
Datasheet |
RCI | Bulk | Obsolete | Socketable | 12VDC | 3PDT (3 Form C) | 10 A | 250VAC, 30VDC - Max | - | 133 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In, 11 Pin (Octal) | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
