Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RTS3T012WGPower/Signal Relay, 1 Form A, SP |
45 |
|
- |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G2R-1 DC6RELAY GEN PURPOSE SPDT 10A 6V |
60 |
|
Datasheet |
G2R | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 88.2 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 4.2 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
RM302524RELAY GEN PURPOSE 3PDT 10A 24V |
0 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Socketable | 24VAC | 3PDT (3 Form C) | 10 A | 440VAC - Max | 4000VA | 300 mA | Non Latching | Mechanical Indicator | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
G4W-1112P-US-TV8 DC6RELAY GEN PURPOSE SPST 15A 6V |
45 |
|
Datasheet |
G4W | Bulk | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 3750VA, 1875W | 133 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 20 ms | 5 ms | -25°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
7-1393273-8RELAY GEN PURPOSE SPDT 10A 24V |
93 |
|
Datasheet |
V23072, AXICOM | Tube | Last Time Buy | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | - | - | 46.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14.1 VDC | 2.4 VDC | 3 ms | 1.5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G2R-1A-AC12RELAY GEN PURPOSE SPST 10A 12V |
80 |
|
Datasheet |
G2R | Tray | Active | Through Hole | 12VAC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 3800VA, 1250W | 75 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9.6 VAC | 3.6 VAC | 15 ms | 10 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|

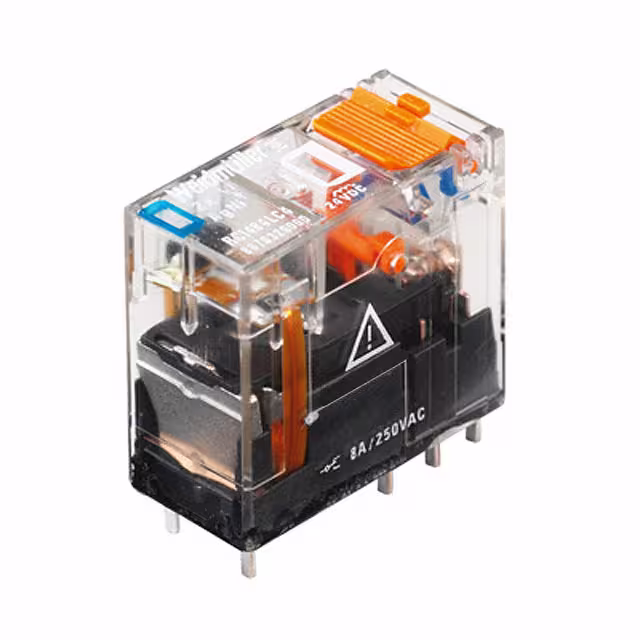

8870300000RELAY GEN PURPOSE SPDT 16A 230V |
9 |
|
Datasheet |
RCI | Bulk | Active | Through Hole | 230VAC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 3.2 mA | Non Latching | Lighted Indicator, Test Button | PC Pin | - | - | 172.5 VAC | 34.5 VAC | 8 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
HC3-HP-AC24V-FRELAY GEN PURPOSE 3PDT 7A 24V |
72 |
|
Datasheet |
HC | Tray | Obsolete | Through Hole | 24VAC | 3PDT (3 Form C) | 7 A | 250VAC - Max | 1750VA | 50 mA | Non Latching | - | PC Pin | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -50°C ~ 70°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
AHN22112NRELAY GEN PURPOSE DPDT 5A 12V |
36 |
|
Datasheet |
AHN | Box | Obsolete | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 44.4 mA | Non Latching | Lighted Indicator | Plug In | - | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
7-1415399-1RELAY GEN PURP |
0 |
|
Datasheet |
RM, SCHRACK | Bulk | Obsolete | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 16 A | 440VAC - Max | 7040VA | 300 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | 7.2 VAC | 15 ms | 5 ms | -40°C ~ 50°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G5RL-1-E-AC115/120RELAY GEN PURPOSE SPDT 16A 120V |
47 |
|
Datasheet |
G5RL | Bulk | Active | Through Hole | 120VAC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 4000VA, 384W | 6.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 90 VAC | 18 VAC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
HR705-2PL-110VACRELAY GEN PURPOSE DPDT 5A 110V |
97 |
|
Datasheet |
HR705 | Bag | Active | Socketable | 110VAC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | - | 8.2 mA | - | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HR705-2PL-24VDCRELAY GEN PURPOSE DPDT 5A 24V |
35 |
|
Datasheet |
HR705 | Bag | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 125VDC - Max | - | 37.5 mA | - | Lighted Indicator | Plug In | - | - | - | - | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
RTT3TA12RELAY GEN PURPOSE SPST 16A 12V |
69 |
|
Datasheet |
RT1, Inrush, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 6400VA | 33.3 mA | Latching, Single Coil | Test Button | PC Pin | - | Class F | 8.4 VDC | - | 10 ms | 10 ms | -10°C ~ 85°C | Silver Tin Oxide (AgSnO), Tungsten (W) | General Purpose | - | - |
|
2476710000RELAY GEN PURPOSE SPDT 10A 24V |
7 |
|
Datasheet |
DRI | Bulk | Active | DIN Rail | 24VAC | SPDT (1 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 2500W | 50 mA | Non Latching | Lighted Indicator, Socket Included | Screw Terminal | - | - | 19.2 VAC | 7.2 VAC | 15 ms | 10 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G6CU-2117P-US DC5RELAY GENERAL PURPOSE DPST 8A 5V |
0 |
|
Datasheet |
G6C | Bulk | Active | Through Hole | 5VDC | DPST-NO/NC (1 Form A, 1 Form B) | 8 A | 380VAC, 125VDC - Max | 3040VA, 1000W | 40 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | - | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
RTS3TF24Power/Signal Relay, 1 Form A, SP |
58 |
|
- |
* | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
G2R-2B4DC12RELAY GEN PURPOSE DPST 4A 12V |
87 |
|
Datasheet |
G2R | Tray | Active | Through Hole | 12VDC | DPST-NC (2 Form B) | 4 A | 380VAC, 125VDC - Max | 1520VA, 500W | 43.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.8 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
|
AHN220X1NRELAY GEN PURPOSE DPDT 5A 110V |
49 |
|
Datasheet |
AHN | Box | Obsolete | Socketable | 110VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 4.8 mA | Non Latching | - | Plug In | - | - | 77 VDC | 16.5 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
SZR-LY2-1-AC220VRELAY GEN PURPOSE DPDT 10A 220V |
8 |
|
- |
SZR-LY | Bulk | Active | Socketable | 220VAC | DPDT (2 Form C) | 10 A | 250VAC, 125VDC - Max | 2500VA, 1250W | 5.3 mA | Non Latching | - | Plug In | - | - | 176 VAC | 66 VAC | 25 ms | 25 ms | - | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
