Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2800-2CE-240ARELAY GEN PURPOSE DPDT 40A 240V |
100 |
|
Datasheet |
AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 48 VAC | - | - | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2800-2CE-240AERELAY GEN PURPOSE DPDT 40A 240V |
96 |
|
Datasheet |
AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 192 VAC | 48 VAC | - | - | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2800-2CE-277A5ERELAY GEN PURPOSE DPDT 40A 277V |
94 |
|
Datasheet |
AZ2800 | Box | Active | Chassis Mount | 277VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 14.4 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 222 VAC | 55.4 VAC | - | - | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
2773980000TERMSERIES-COMPACT, RELAY MODULE |
20 |
|
Datasheet |
TERMSERIES | Box | Active | - | 24VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | - | 11.5 mA | Non Latching | Socket Included | - | - | - | 23 VAC/DC | 2 VAC/DC | 6 ms | 35 ms | -40°C ~ 60°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

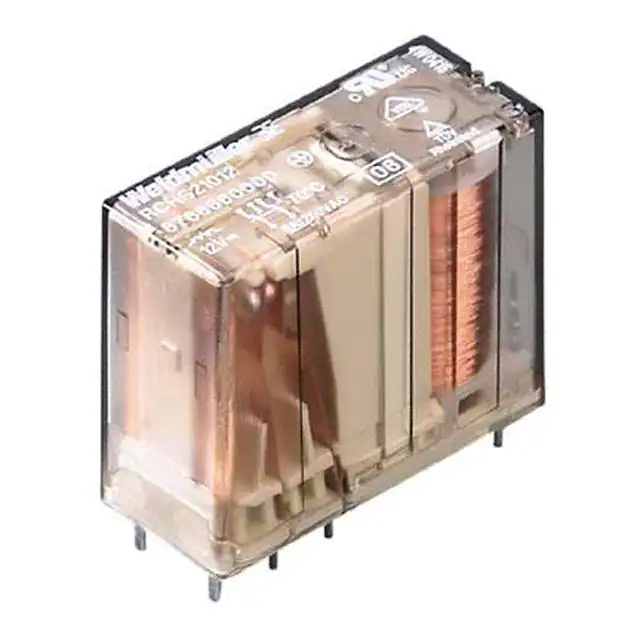

8768700000RELAY GEN PURPOSE DPST 6A 24V |
19 |
|
Datasheet |
RCH | Bulk | Active | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 6 A | 250VAC - Max | 1500VA | 29.2 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 10 ms | 4 ms | -25°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
AZ2800-2C-24ARELAY GEN PURPOSE DPDT 40A 24V |
11 |
|
Datasheet |
AZ2800 | Box | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 166 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 19.2 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1157976RELAY |
20 |
|
Datasheet |
REL-PR | Bulk | Active | Socketable | 110VDC | 4PDT (4 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 240W | 19.8 mA | Non Latching | Lighted Indicator | Plug In | - | - | 82.5 VDC | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
MY4IN-GS-R AC220/240RELAY GEN PURPOSE |
55 |
|
Datasheet |
MY | Bulk | Active | Socketable | 240VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 15.1 mA | Non Latching | Latching Lever, Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 192 VAC | 72 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
MY4N-GS-R AC100/110RELAY GEN PURPOSE 4PDT 3A 110V |
12 |
|
Datasheet |
MY | Bulk | Active | Socketable | 110VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 29.3 mA | Non Latching | Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 88 VAC | 33 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
AZ2800-2CE-120AERELAY GEN PURPOSE DPDT 40A 120V |
100 |
|
Datasheet |
AZ2800 | Box | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 33.3 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 96 VAC | 24 VAC | - | - | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZEV200-2AE-12DRELAY EV CHARGING DPST 40A 12V |
73 |
|
Datasheet |
AZEV200 | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 40 A | 480VAC - Max | 19200VA | 216 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 95°C | Silver Tin Oxide (AgSnO) | EV Charging | - | - |
|
|
AZ2800-2C-240ARELAY GEN PURPOSE DPDT 40A 240V |
84 |
|
Datasheet |
AZ2800 | Box | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 40 A | 600VAC, 30VDC - Max | 11080VA, 1200W | 16.7 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 192 VAC | 48 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
MY4IN-GS-R AC24RELAY GEN PURPOSE |
80 |
|
Datasheet |
MY | Bulk | Active | Socketable | 24VAC | 4PDT (4 Form C) | 6 A | 250VAC, 220VDC - Max | 1500VA, 1320W | 133.3 mA | Non Latching | Latching Lever, Lighted Indicator, Mechanical Indicator | Plug In, Quick Connect - 0.110" (2.8mm) | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
1157966RELAY |
20 |
|
Datasheet |
REL-PR | Bulk | Active | Socketable | 230VAC | 4PDT (4 Form C) | 10 A | 250VAC, 250VDC - Max | 2500VA, 240W | 2.5 mA | Non Latching | Lighted Indicator | Plug In | - | - | 184 VAC | - | 20 ms | 20 ms | -25°C ~ 55°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
1218380000RCI 42424FG FORCE GUIDED CTS |
12 |
|
Datasheet |
RCI | Bulk | Active | Through Hole | 24VDC | DPDT (2 Form C) | 6 A | 250VAC - Max | 1500VA, 144W | 29.2 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 6 ms | -40°C ~ 70°C | Silver Copper Nickel (AgCuNi) | General Purpose | - | - |
|
|
J1671AF24VACZDTRELAY GEN PURPOSE SPST |
39 |
|
Datasheet |
J167 | Tray | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 30VDC - Max | 6600VA | 87.3 mA | Non Latching | Lighted Indicator, Test Button | Screw Terminal | - | Class F | 16.8 VAC | 2.4 VAC | 30 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
RXG22F7RELAY 2CO 5A@250VAC 120VAC COIL |
10 |
|
Datasheet |
Harmony | Box | Active | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 19 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | Class F | 96 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) | General Purpose | - | - |
|
|
2961480RELAY GEN PURPOSE DPDT 8A 230V |
39 |
|
Datasheet |
REL-MR | Bulk | Active | Through Hole | 230VAC | DPDT (2 Form C) | 8 A | 250VAC, 250VDC - Max | - | 2.5 mA | Non Latching | - | PC Pin | - | - | - | - | 12 ms | 9 ms | -40°C ~ 85°C | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
G7L-1A-TUB AC200/240RELAY GEN PURPOSE SPST 30A 240V |
17 |
|
Datasheet |
G7L | Bulk | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 30 A | 250VAC - Max | 7500VA | 10.2 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-TUBJ-80-CB AC100/120RELAY GEN PURPOSE DPST 25A 120V |
70 |
|
Datasheet |
G7L | Bulk | Active | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 20.4 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VAC | 18 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
