Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BR246-320B3-28VRELAY GEN PURPOSE DPDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR246 | Bulk | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 87.5 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
BR247D-600C2-28VRELAY GEN PURPOSE DPDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR247D | Bulk | Obsolete | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 46.7 mA | Latching, Single Coil | - | Plug In | - | - | 18 VDC | - | 10 ms | 10 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
BR230-290C2-28V-020MRELAY GEN PURPOSE 4PDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR230 | Box | Active | Socketable | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Plug In | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
BR230-290C1-28V-017MRELAY GEN PURPOSE 4PDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR230 | Box | Active | Socketable | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Plug In | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
BR230D-290B2-28V-021MRELAY GEN PURPOSE 4PDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR230D | Box | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
BR246-320A2-28V-024MRELAY GEN PURPOSE DPDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR246 | Box | Active | Socketable | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 87.5 mA | Non Latching | - | Plug In | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|

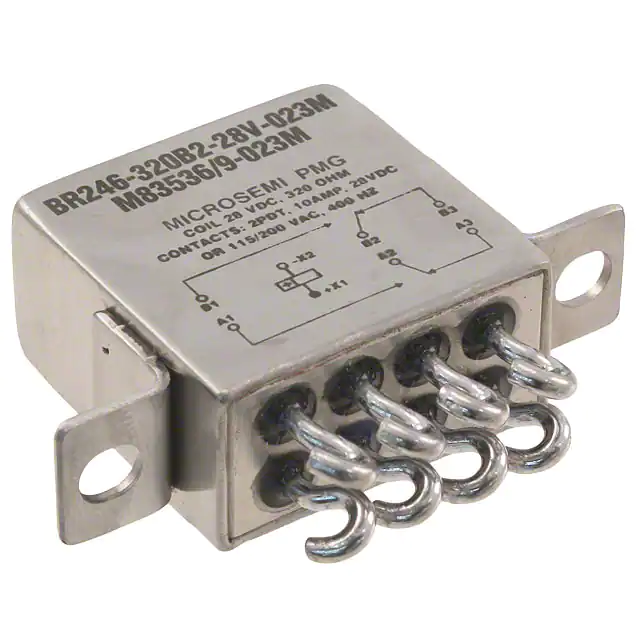

BR246-320B2-28V-023MRELAY GEN PURPOSE DPDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR246 | Box | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 87.5 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
BR230-290B2-28V-021MRELAY GEN PURPOSE 4PDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR230 | Box | Active | Chassis Mount | 28VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 96.6 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
BR246D-320B3-28V-026MRELAY GEN PURPOSE DPDT 10A 28V Microsemi Corporation |
0 |
|
Datasheet |
BR246D | Box | Active | Chassis Mount | 28VDC | DPDT (2 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 87.5 mA | Non Latching | - | Solder Hook | - | - | 18 VDC | 5.1 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
|
|
BR230-20A1-6V-003LRELAY GEN PURPOSE 4PDT 10A 6V Microsemi Corporation |
0 |
|
Datasheet |
BR230 | Bulk | Active | Socketable | 6VDC | 4PDT (4 Form C) | 10 A | 208VAC, 28VDC - Max | 2080VA, 280W | 300 mA | Non Latching | - | Plug In | - | - | 4.5 VDC | 1.8 VDC | 15 ms | 15 ms | -70°C ~ 125°C | - | General Purpose | - | - |
