Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EV500-5BRELAY GEN PURPOSE SPST 750A 24V |
5 |
|
Datasheet |
EV500, KILOVAC | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (DM) (1 Form X) | 750 A | 1800VDC - Max | - | - | Non Latching | - | Stud | Sealed - Hermetically | - | 19.7 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | - | General Purpose | - | - |
|
J105D1AS6VDC.45RELAY GEN PURPOSE SPST 10A 6V |
950 |
|
Datasheet |
J105D | Tray | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 2770VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J105D1CS6VDC.45RELAY GEN PURPOSE SPDT 10A 6V |
998 |
|
Datasheet |
J105D | Tray | Active | Through Hole | 6VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 75 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.5 VDC | 0.6 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
J105D1CS9VDC.45RELAY GEN PURPOSE SPDT 10A 9V |
852 |
|
Datasheet |
J105D | Tray | Active | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
OJ-SS-105HM,000RELAY GEN PURPOSE SPST 10A 5V |
0 |
|
- |
OJ, OEG | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 91 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.25 VDC | 10 ms | 4 ms | -30°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
AZ7709T-1AE-24DSEFRELAY GEN PURPOSE SPST 10A 24V |
91 |
|
Datasheet |
AZ7709 | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 2500VA, 300W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

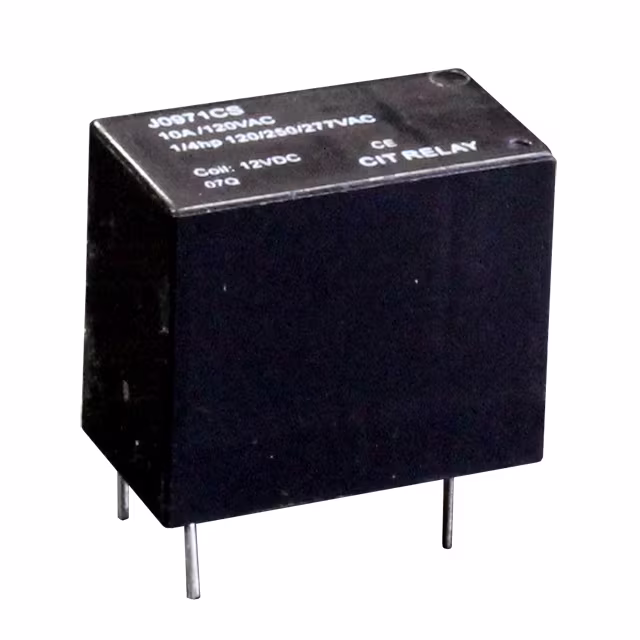

J0971CS48VDC.45RELAY GEN PURPOSE SPDT 10A 48V |
40 |
|
Datasheet |
J097 | Tray | Active | Through Hole | 48VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 9.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 36 VDC | 4.8 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
OJE-SS-112DM,801RELAY GEN PURPOSE SPST 5A 12V |
391 |
|
Datasheet |
OJE, OEG | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
OJ-SS-112DM,000RELAY GEN PURPOSE SPST 5A 12V |
377 |
|
Datasheet |
OJ, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
|
AZ9322-1CH-24DRELAY GEN PURPOSE SPDT 15A 24V |
61 |
|
Datasheet |
AZ9322 | Tray | Active | Through Hole | 24VDC | SPDT (1 Form C) | 15 A | 277VAC - Max | 1800VA | 15 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | - | 10 ms | 5 ms | - | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
ALQ1F06RELAY GEN PURPOSE SPDT 10A 6V |
27 |
|
Datasheet |
ALQ | Box | Active | Through Hole | 6VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 66.7 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.3 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
OJ-SS-109LMHF,000RELAY GEN PURPOSE SPST 8A 9V |
939 |
|
Datasheet |
OJ, OEG | Bulk | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 22.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.75 VDC | 0.45 VDC | 15 ms | 4 ms | -40°C ~ 105°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OJ-SS-124LMHF,000RELAY GEN PURPOSE SPST 8A 24V |
960 |
|
Datasheet |
OJ, OEG | Tray | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OJ-SS-124LMH,000RELAY GEN PURPOSE SPST 8A 24V |
399 |
|
Datasheet |
OJ, OEG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 277VAC, 30VDC - Max | 2216VA, 240W | 8.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 18 VDC | 1.2 VDC | 15 ms | 4 ms | -30°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
OJ-SS-112HM.000RELAY GEN PURPOSE SPST 10A 12V |
482 |
|
Datasheet |
OJ, OEG | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 277VAC, 30VDC - Max | 2770VA, 300W | 37.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 0.6 VDC | 10 ms | 4 ms | -30°C ~ 70°C | Silver (Ag) | General Purpose | - | - |
|
|
OJT-SS-124LM,000RELAY GEN PURPOSE SPST 5A 24V |
603 |
|
Datasheet |
OJE, OEG | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 30VDC - Max | 1385VA, 150W | 18.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 1.2 VDC | 15 ms | 4 ms | -30°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J0971CS12VDC.45RELAY GEN PURPOSE SPDT 10A 12V |
64 |
|
Datasheet |
J097 | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 277VAC - Max | 2770VA | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
JW2ASN-DC6VRELAY GEN PURPOSE DPST 5A 6V |
96 |
|
Datasheet |
JW | Bulk | Active | Through Hole | 6VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 88 mA | Non Latching | - | PC Pin | Sealed - Fully | Class E | 4.2 VDC | 0.6 VDC | 15 ms | 5 ms | -40°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
ALQ3F18RELAY GEN PURPOSE SPST 10A 18V |
62 |
|
Datasheet |
ALQ | Box | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
ALQ3F06RELAY GEN PURPOSE SPST 10A 6V |
52 |
|
Datasheet |
ALQ | Box | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.3 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
