Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

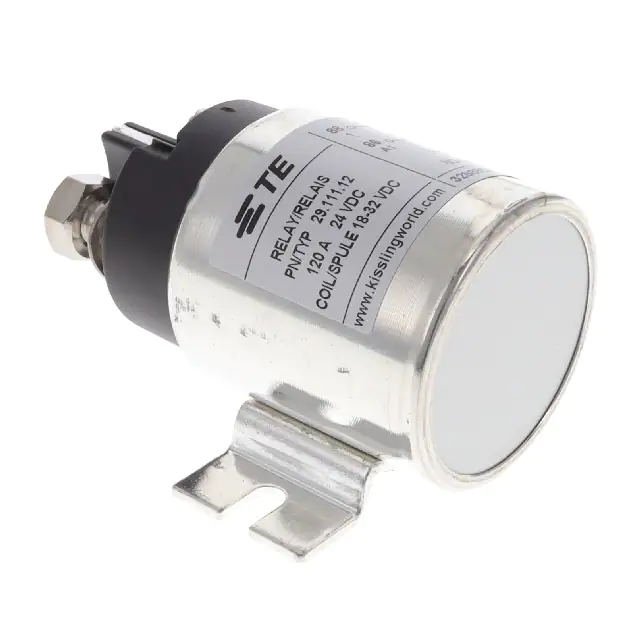

29-111-12RELAY GEN PURPOSE SPST 120A TE Connectivity Deutsch Connectors |
40 |
|
Datasheet |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 120 A | - | 10W | 350 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 35 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
29-321-12RELAY GEN PURPOSE SPDT 300A 28V TE Connectivity Deutsch Connectors |
27 |
|
Datasheet |
29, KISSLING | Bulk | Active | Chassis Mount | 28VDC | SPDT (1 Form C) | 300 A | - | 10W | 451.6 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
29-014-12RELAY GEN PURPOSE SPST 75A TE Connectivity Deutsch Connectors |
48 |
|
Datasheet |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 75 A | - | 10W | 368.4 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 35 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
29-511-12RELAY GEN PURPOSE SPST 500A 28V TE Connectivity Deutsch Connectors |
30 |
|
Datasheet |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 500 A | - | 22W | 777.8 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 60 ms | 30 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
K1014846RELAY 26-57-01 TE Connectivity Deutsch Connectors |
30 |
|
Datasheet |
26, KISSLING | Bulk | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 300 A | - | - | 193.1 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 6 VDC | 20 ms | 10 ms | -55°C ~ 74°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
29-211-12RELAY GEN PURPOSE SPST 220A 28V TE Connectivity Deutsch Connectors |
23 |
|
Datasheet |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 220 A | - | 10W | 451.6 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|

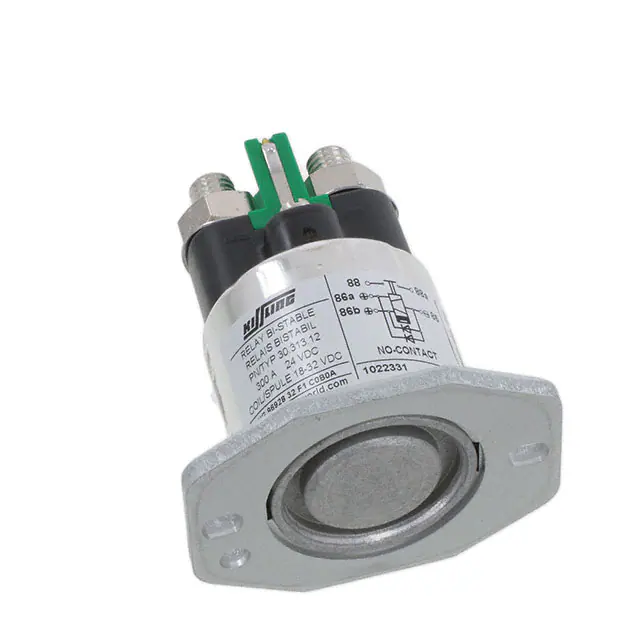

30-313-12RELAY GEN PURPOSE SPST 300A 28V TE Connectivity Deutsch Connectors |
13 |
|
Datasheet |
30, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 300 A | - | - | - | Latching, Dual Coil | Diode | Screw Terminal | - | - | 13 VDC | 10 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
29-311-11RELAY GEN PURPOSE SPST 300A 12V TE Connectivity Deutsch Connectors |
20 |
|
Datasheet |
29, KISSLING | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (DM) (1 Form X) | 300 A | - | 10W | 800 mA | Non Latching | Diode | Screw Terminal | - | - | 9 VDC | 2 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
29-311-12RELAY GEN PURPOSE SPST 300A 28V TE Connectivity Deutsch Connectors |
19 |
|
Datasheet |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 300 A | - | 10W | 451.6 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
29-011-12RELAY GEN PURPOSE SPST 75A TE Connectivity Deutsch Connectors |
25 |
|
Datasheet |
29, KISSLING | Box | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 75 A | - | 10W | 368.4 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
