Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ2100-1A-12DERELAY GEN PURPOSE SPST 40A 12V |
89 |
|
Datasheet |
AZ2100 | Box | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 12000VA, 1200W | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
ALQ1F24RELAY GEN PURPOSE SPDT 10A 24V |
85 |
|
Datasheet |
ALQ | Box | Active | Through Hole | 24VDC | SPDT (1 Form C) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
G2RL-1A-E-CF DC9RELAY GEN PURPOSE SPST 16A 9V |
81 |
|
Datasheet |
G2RL | Tube | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 7040VA, 4800W | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

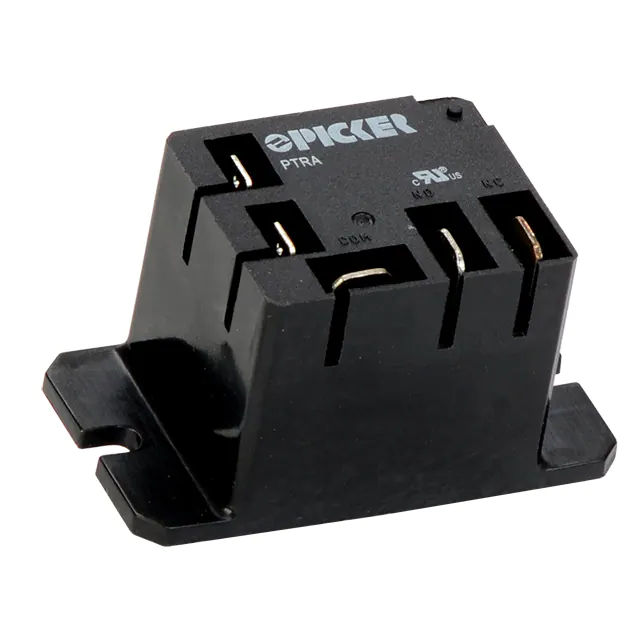

PTRA-1A-220S-T4-XRELAY GEN PURPOSE SPST 40A 220V |
48 |
|
Datasheet |
PTRA | Tube | Active | Chassis Mount | 220VAC | SPST-NO (1 Form A) | 40 A | 300VAC, 110VDC - Max | 12000VA, 4400W | 163.1 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | Sealed - Fully | Class F | 165 VAC | 86 VAC | 15 ms | 10 ms | -55°C ~ 100°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
G6D-1A-ASI-NP DC21RELAY GEN PURPOSE SPST 5A 21V |
42 |
|
Datasheet |
G6D | Bulk | Active | Through Hole | 21VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 1250VA, 150W | 9.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14.7 VDC | 2.1 VDC | 10 ms | 5 ms | -25°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
ALFG1PF18RELAY GEN PURPOSE SPST 22A 18V |
48 |
|
Datasheet |
ALFG | Bulk | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 22 A | 250VAC - Max | 5500VA | 78 mA | Non Latching | - | PC Pin | - | Class F | 12.6 VDC | 1.8 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
40.31.9.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
28 |
|
Datasheet |
40 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 4000VA | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
J1522CP24VDCRELAY GEN PURPOSE DPDT 10A 24V |
84 |
|
Datasheet |
J152 | Tray | Active | Through Hole | 24VDC | DPDT (2 Form C) | 10 A | 300VAC - Max | 3000VA | 37.5 mA | Non Latching | - | PC Pin | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
45.71.7.024.0310RELAY GEN PURPOSE SPST 16A 24V |
50 |
|
Datasheet |
45 | Box | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 16 A | 400VAC - Max | 6400VA | 15 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 10 ms | 2 ms | -40°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|

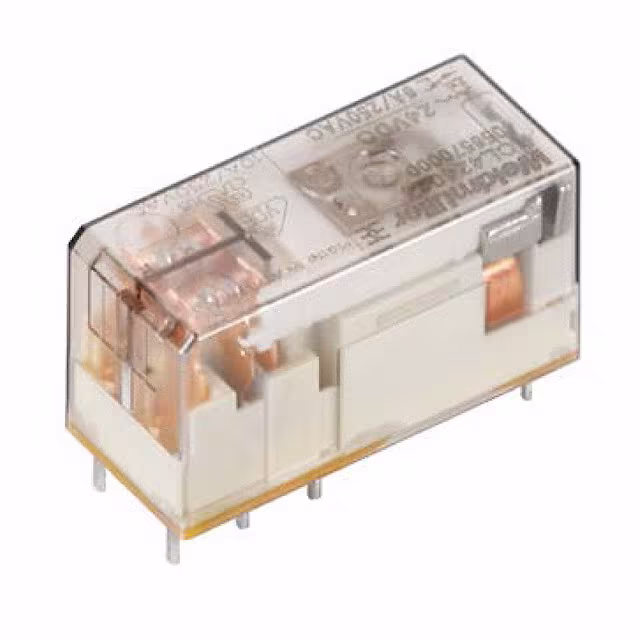

8693260000RELAY GEN PURPOSE SPDT 16A 24V |
27 |
|
Datasheet |
RCL | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC - Max | 4000VA | 16.7 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
G2R-2 DC9RELAY GEN PURPOSE DPDT 5A 9V |
49 |
|
Datasheet |
G2R | Tray | Active | Through Hole | 9VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 1900VA, 625W | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 1.35 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | General Purpose | - | - |
|
T9AV1L22-24RELAY GEN PURPOSE SPST 30A 24V |
47 |
|
Datasheet |
T9A | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 8310VA | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Flux Protection | Class F | 18 VDC | 2.4 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
40.61.7.024.4000RELAY GEN PURPOSE SPDT 16A 24V |
62 |
|
Datasheet |
40 | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 6400VA | 21 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
J1512CF240VAC1.2RELAY GEN PURPOSE DPDT 20A 240V |
81 |
|
Datasheet |
J151 | Tray | Active | Chassis Mount | 240VAC | DPDT (2 Form C) | 12 A | 300VAC - Max | 6000VA | 12.6 mA | Non Latching | - | Plug In | - | - | 192 VAC | 72 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
2903667RELAY GEN PURPOSE DPDT 12A 120V |
92 |
|
Datasheet |
REL-IR | - | Active | Socketable | 120VAC | DPDT (2 Form C) | 12 A | 250VAC, 250VDC - Max | - | 13 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

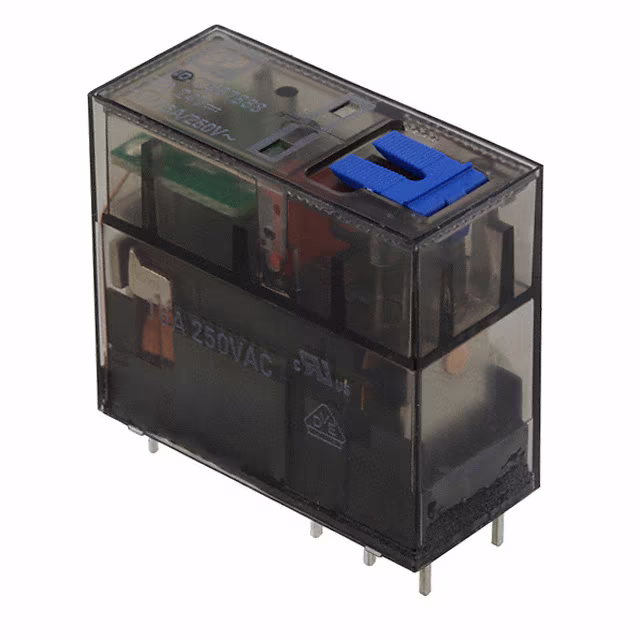

2987888RELAY GEN PURPOSE SPDT 16A 24V |
75 |
|
Datasheet |
REL-MR | Bulk | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 250VDC - Max | - | 18 mA | Non Latching | Diode, Lighted Indicator, Mechanical Indicator | PC Pin | - | - | - | - | 9 ms | 6 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
2903686RELAY GEN PURPOSE 4PDT 6A 24V |
34 |
|
Datasheet |
REL-IR | - | Active | Socketable | 24VAC | 4PDT (4 Form C) | 6 A | 250VAC, 250VDC - Max | - | 66 mA | Non Latching | Lighted Indicator, Mechanical Indicator, Test Button | Plug In | - | - | - | - | 15 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RSB1A120BDHARMONY, INTERFACE PLUG-IN RELAY |
62 |
|
Datasheet |
Harmony | Box | Active | Socketable | 24VDC | SPDT (1 Form C) | 12 A | 300VDC - Max | 3600VA | 16.7 mA | Non Latching | - | Plug In | - | - | - | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
JVN1AF-12V-FRELAY GEN PURPOSE SPST 16A 12V |
83 |
|
Datasheet |
JV-N | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 4432VA, 480W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 0.6 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | General Purpose | - | - |
|
|
AZ2900-1A-24AP25 AMP POWER RELAY |
64 |
|
Datasheet |
AZ2900 | Tray | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 25 A | 277VAC - Max | 6925VA | 167 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class F | 20.4 VAC | 4.8 VAC | 25 ms | 25 ms | -40°C ~ 65°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
