Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V23057B 2A402RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
Datasheet |
V23057, SCHRACK | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23057A 13A101RELAY GEN PURPOSE SPDT 5A 48V |
0 |
|
Datasheet |
V23057, SCHRACK | Tray | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 10.2 mA | Non Latching | - | PC Pin | - | - | 32 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
V23057A 23A101RELAY GEN PURPOSE SPDT 5A 60V |
0 |
|
Datasheet |
V23057, SCHRACK | Tray | Obsolete | Through Hole | 60VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 8.3 mA | Non Latching | - | PC Pin | - | - | 40 VDC | 6 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
V23057B 2B101RELAY GEN PURPOSE SPDT 5A 12V |
0 |
|
Datasheet |
V23057, SCHRACK | Tray | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 400VAC - Max | 2000VA | 36.3 mA | Non Latching | - | PC Pin | - | - | 8 VDC | 1.2 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
|
8-1393215-3RELAY GEN PURPOSE SPST 8A 24V |
0 |
|
Datasheet |
V23057, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 20 mA | Non Latching | - | PC Pin | - | - | 16 VDC | 2.4 VDC | 7 ms | 3 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|

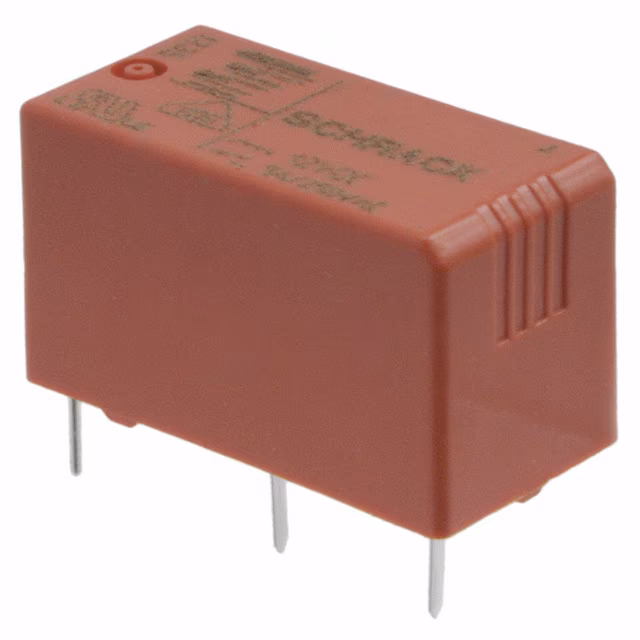

REL30012RELAY GEN PURPOSE SPST 6A 12V |
0 |
|
Datasheet |
REL, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 30 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
4-1393217-7RELAY GEN PURPOSE SPST 6A 24V |
0 |
|
Datasheet |
REL, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 6 A | 400VAC - Max | 2400VA | 15 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
V23061A1002A402RELAY GEN PURPOSE SPST 8A 5V |
0 |
|
Datasheet |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
1-1393222-6RELAY GEN PURPOSE SPST 8A 9V |
0 |
|
Datasheet |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 24.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 6.1 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23061A1010A402RELAY GEN PURPOSE SPST 8A 60V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 60VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 40.8 VDC | 6 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
6-1393222-8RELAY GEN PURPOSE SPST 8A 5V |
0 |
|
Datasheet |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 42.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 3.4 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
7-1393222-0RELAY GEN PURPOSE SPDT 8A 3V |
0 |
|
Datasheet |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 3VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 73.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 2.1 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
8-1393222-6RELAY GEN PURPOSE SPDT 8A 9V |
0 |
|
Datasheet |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 9VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 24.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 6.1 VDC | 0.9 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23061B1009A401RELAY GEN PURPOSE SPDT 8A 48V |
0 |
|
Datasheet |
MSR, SCHRACK | Tray | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 32.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
V23061B1009A601RELAY GEN PURPOSE SPDT 8A 48V |
0 |
|
- |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 32.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
5-1393223-0RELAY GEN PURPOSE SPDT 8A 24V |
0 |
|
Datasheet |
MSR, SCHRACK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 10.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class A | 16.3 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
RYA30005RELAY GEN PURPOSE SPST 8A 5V |
0 |
|
Datasheet |
RY, SCHRACK | Tray | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 44.6 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RYA30006RELAY GEN PURPOSE SPST 8A 6V |
0 |
|
Datasheet |
RY, SCHRACK | Tray | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 8 A | 400VAC - Max | 3200VA | 37 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
RYA50012RELAY GEN PURPOSE SPST 8A 12V |
0 |
|
Datasheet |
RY, SCHRACK | Tube | Obsolete | Through Hole | 12VDC | SPST-NC (1 Form B) | 8 A | 400VAC - Max | 3200VA | 19.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
RY210018RELAY GEN PURPOSE SPDT 8A 18V |
0 |
|
Datasheet |
RY, SCHRACK | Tube | Obsolete | Through Hole | 18VDC | SPDT (1 Form C) | 8 A | 400VAC - Max | 3200VA | 13.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 12.6 VDC | 1.8 VDC | 9 ms | 5 ms | -40°C ~ 70°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
