Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G7L-2A-T-J-CB-DC6RELAY GEN PURPOSE DPST 25A 6V |
0 |
|
Datasheet |
G7L | Bulk | Obsolete | Chassis Mount | 6VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 317 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 4.5 VDC | 0.9 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-TUB-80-CB DC12RELAY GEN PURPOSE DPST 25A 12V |
0 |
|
Datasheet |
G7L | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 158 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.8 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
|
G7L-2A-TUB-80-CB DC24RELAY GEN PURPOSE DPST 25A 24V |
0 |
|
Datasheet |
G7L | Bulk | Obsolete | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 79 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 18 VDC | 3.6 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-TUB-CB-AC50RELAY GEN PURPOSE DPST 25A 50V |
0 |
|
Datasheet |
G7L | Bulk | Obsolete | Chassis Mount | 50VAC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 34 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 37.5 VAC | 7.5 VAC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G7L-2A-TUB-J-CB-DC100RELAY GEN PURPOSE DPST 25A 100V |
0 |
|
Datasheet |
G7L | Bulk | Obsolete | Chassis Mount | 100VDC | DPST-NO (2 Form A) | 25 A | 250VAC - Max | 6250VA | 19 mA | Non Latching | Test Button | Quick Connect - 0.250" (6.3mm) | - | Class B | 75 VDC | 15 VDC | 30 ms | 30 ms | -25°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
G8P-1A2T-F DC48RELAY GEN PURPOSE SPST 30A 48V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 19 mA | Non Latching | - | Quick Connect - 0.187"/0.250" | - | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G8P-1A4P DC110RELAY GEN PURPOSE SPST 30A 110V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1A4P DC15RELAY GEN PURPOSE SPST 30A 15V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 15VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 60 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P1A4PDC18RELAY GEN PURPOSE SPST 30A 18V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 50 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1A4P DC9RELAY GEN PURPOSE SPST 30A 9V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 93 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G8P-1A4TP DC110RELAY GEN PURPOSE SPST 30A 110V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P1A4TPDC18RELAY GEN PURPOSE SPST 30A 18V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 50 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1A4TP DC5RELAY GEN PURPOSE SPST 30A 5V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 185 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1A4TP DC9RELAY GEN PURPOSE SPST 30A 9V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 93 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|

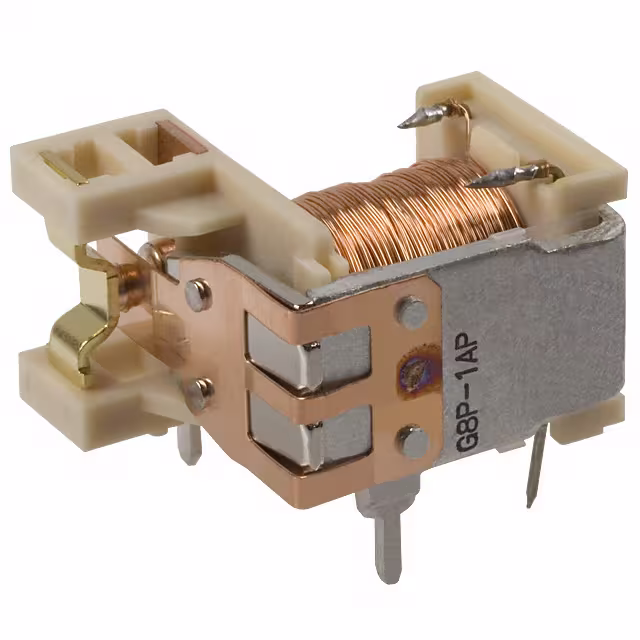

G8P-1AP DC110RELAY GEN PURPOSE SPST 30A 110V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 9 mA | Non Latching | - | PC Pin | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1AP DC9RELAY GEN PURPOSE SPST 30A 9V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 93 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
G8P-1ATP DC110RELAY GEN PURPOSE SPST 30A 110V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 110VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 9 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1ATP DC12RELAY GEN PURPOSE SPST 30A 12V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 77 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1ATP DC24RELAY GEN PURPOSE SPST 30A 24V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 36 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
|
G8P-1ATP DC5RELAY GEN PURPOSE SPST 30A 5V |
0 |
|
Datasheet |
G8P | Bulk | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 250VAC, 28VDC - Max | 7500VA, 840W | 185 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
