Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HAT902CSDC12RELAY SPDT 30A 12V Hasco Relays |
0 |
|
Datasheet |
HAT | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 30 A | 277VAC - Max | - | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250" (6.3mm) | - | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
HPKF1A35DC12S1.5RELAY SPST 35A 12V Hasco Relays |
0 |
|
Datasheet |
HPK | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | - | 150 mA | Non Latching | - | PC Pin | - | Class F | 9.6 VDC | 0.6 VDC | 15 ms | 10 ms | -40°C ~ 60°C | Silver Alloy | - | - | - |
|
SPR1C12DC12KRELAY SPDT 12A 12V Hasco Relays |
0 |
|
Datasheet |
SPR | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 277VAC - Max | - | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | - | - | - |
|
HAT905CSDC12RELAY SPDT 50A 12V Hasco Relays |
0 |
|
Datasheet |
HAT | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 50 A | 277VAC - Max | - | 100 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -20°C ~ 85°C | Silver Alloy | - | - | - |
|
HAT901CSDC24RELAY SPDT 30A 24V Hasco Relays |
0 |
|
Datasheet |
HAT | Tube | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC - Max | - | 36.4 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
PLT1B20DC24-2-5261RELAY SPST 20A 24V Hasco Relays |
0 |
|
Datasheet |
PLT | Tube | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 20 A | 277VAC - Max | - | 15 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|

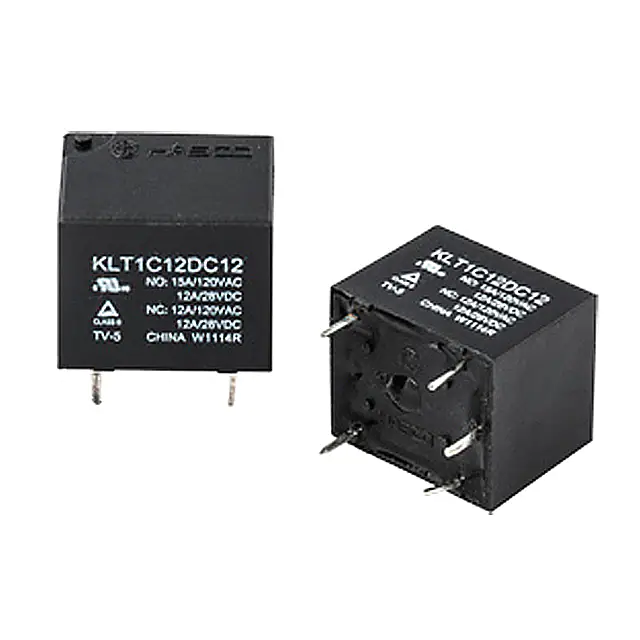

KLT1C12DC12RELAY SPDT 12A 12V Hasco Relays |
0 |
|
Datasheet |
KLT | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 277VAC - Max | - | 30 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 1.2 VDC | 8 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
SPRF1C16DC12K-2LRELAY SPDT 16A 12V Hasco Relays |
0 |
|
Datasheet |
SPR | Tube | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 277VAC - Max | - | 50 mA | Latching, Dual Coil | - | PC Pin | - | Class F | 9 VDC | - | 8 ms | 8 ms | -40°C ~ 70°C | Silver Alloy | - | - | - |
|
HAT901ASDC24RELAY SPST 30A 24V Hasco Relays |
0 |
|
Datasheet |
HAT | Tube | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | - | 36.4 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
|
PR2C10DC12KRELAY DPDT 10A 12V Hasco Relays |
0 |
|
Datasheet |
PR | Tube | Active | Through Hole | 12VDC | DPDT (2 Form C) | 10 A | 277VAC - Max | - | 44 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy | - | - | - |
