Power Relays, Over 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Coil Voltage | Contact Form | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Coil Current | Coil Type | Features | Termination Style | Seal Rating | Coil Insulation | Must Operate Voltage | Must Release Voltage | Operate Time | Release Time | Operating Temperature | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

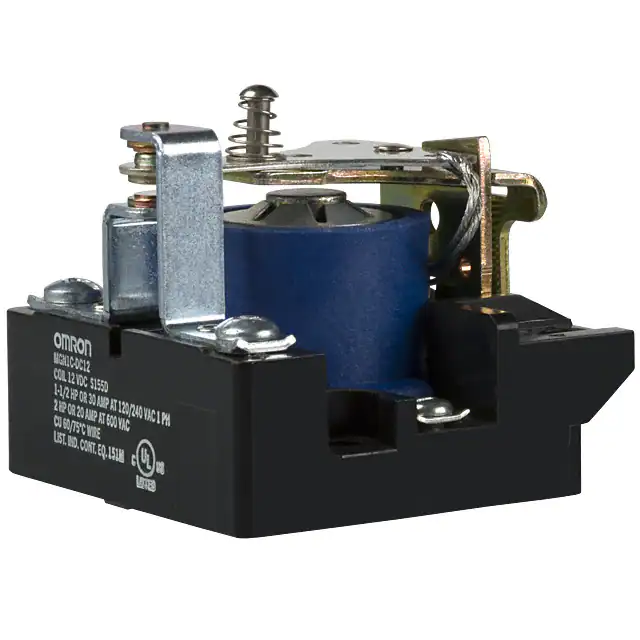

MGN1C-DC12RELAY GEN PURPOSE SPDT 30A 12V |
143 |
|
Datasheet |
MGN | Bulk | Active | Chassis Mount | 12VDC | SPDT (1 Form C) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 167 mA | Non Latching | - | Screw Terminal | - | Class F | 9 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | General Purpose | - | - |
|
8790520000RELAY GEN PURPOSE SPDT 6A 24V |
99 |
|
Datasheet |
MCZ | Bulk | Active | DIN Rail | 24VDC | SPDT (1 Form C) | 6 A | 250VAC - Max | 1500VA | 16.5 mA | Non Latching | Lighted Indicator, Socket Included | Spring Terminal | - | - | 14 VDC | 3 VDC | 11 ms | 50 ms | -25°C ~ 70°C | Silver Tin Oxide (AgSnO), Gold (Au) | General Purpose | - | - |
|
G7J-3A1B-B DC24RELAY GEN PURPOSE 4PST 25A 24V |
62 |
|
Datasheet |
G7J | Bulk | Active | Chassis Mount | 24VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 25 A | 250VAC, 125VDC - Max | 6250VA, 3125W | 83 mA | Non Latching | Test Button | Screw Terminal | - | - | 18 VDC | 2.4 VDC | 50 ms | 50 ms | -25°C ~ 60°C | - | General Purpose | - | - |
|
PRD-5AY0-120RELAY GEN PURPOSE SPDT 25A 120V |
45 |
|
Datasheet |
PRD | Bulk | Active | Chassis Mount | 120VAC | SPDT (1 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | General Purpose | - | - |
|
24059RELAY GEN PURPOSE SPST 85A 12V |
26 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 85 A | - | - | 685.7 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Copper | General Purpose | - | - |
|
MGN2A-AC24RELAY GEN PURPOSE DPST 30A 24V |
34 |
|
Datasheet |
MGN | Bulk | Active | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 396 mA | Non Latching | - | Screw Terminal | - | Class F | 20.4 VAC | - | 30 ms | 30 ms | -45°C ~ 80°C | - | General Purpose | - | - |
|
|
MGN2A-DC12RELAY GEN PURPOSE DPST 30A 12V |
140 |
|
Datasheet |
MGN | Bulk | Active | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 600VAC, 28VDC - Max | 18000VA, 840W | 167 mA | Non Latching | - | Screw Terminal | - | Class F | 9 VDC | - | 30 ms | 30 ms | -40°C ~ 115°C | - | General Purpose | - | - |
|
KUHP-11A51-24RELAY GEN PURPOSE DPDT 20A 24V |
504 |
|
Datasheet |
KUHP | Bulk | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 4800VA | 115 mA | Non Latching | - | Quick Connect - 0.250" (6.3mm) | - | Class B | 20.4 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
24008RELAY GEN PURPOSE SPST 120A 24V |
43 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 120 A | - | - | 827.6 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Copper | General Purpose | - | - |
|
MJN2CK-AC120RELAY GEN PURPOSE DPDT 10A 120V |
137 |
|
Datasheet |
MJN | Bulk | Active | Socketable | 120VAC | DPDT (2 Form C) | 10 A | 600VAC, 28VDC - Max | 6000VA, 280W | 14.2 mA | Latching, Single Coil | - | Plug In, Quick Connect - 0.187" (4.7mm) | - | - | 102 VAC | - | 20 ms | 10 ms | -45°C ~ 60°C | Silver Alloy | General Purpose | - | - |
|
24063RELAY GEN PURPOSE SPST 85A 24V |
39 |
|
Datasheet |
- | Bulk | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 85 A | - | - | 338 mA | Non Latching | - | Screw Terminal | - | - | - | - | - | - | -40°C ~ 85°C | Silver (Ag) | General Purpose | - | - |
|
2964432RELAY GEN PURPOSE SPST 6A 120V |
28 |
|
Datasheet |
EMG 10-REL | Bulk | Active | DIN Rail | 120VAC/DC | SPST-NO (1 Form A) | 6 A | 250VAC, 250VDC - Max | 1500VA, 140W | 5 mA | Non Latching | Lighted Indicator, Socket Included, Varistor | Screw Terminal | - | - | - | - | 7 ms | 11 ms | -20°C ~ 40°C | Silver Nickel (AgNi) | General Purpose | - | - |
|
R10-R2X2-V185RELAY GEN PURPOSE DPDT 5A 12V |
193 |
|
Datasheet |
R10 | Bulk | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 64.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
R10-E1X2-V2.5KRELAY GEN PURPOSE DPDT 5A 48V |
347 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 48VDC | DPDT (2 Form C) | 5 A | 120VAC - Nom | - | 19.2 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
KRPA-11AG-240RELAY GEN PURPOSE DPDT 10A 240V |
164 |
|
Datasheet |
KRPA | Tray | Active | Socketable | 240VAC | DPDT (2 Form C) | 10 A | 240VAC - Max | 2400VA | 8.8 mA | Non Latching | - | Plug In, 8 Pin (Octal) | - | Class B | 204 VAC | - | - | - | -45°C ~ 55°C | Silver Cadmium Oxide (AgCdO) | General Purpose | - | - |
|
|
R10-E1Y2-J5.0KRELAY GEN PURPOSE DPDT 3A 24V |
434 |
|
Datasheet |
R10 | Bulk | Active | Socketable | 24VDC | DPDT (2 Form C) | 3 A | 120VAC - Nom | - | 20 mA | Non Latching | - | Plug In | - | - | 20.5 VDC | 0.12 VDC | - | - | -55°C ~ 75°C | Silver (Ag) | General Purpose | - | - |
|

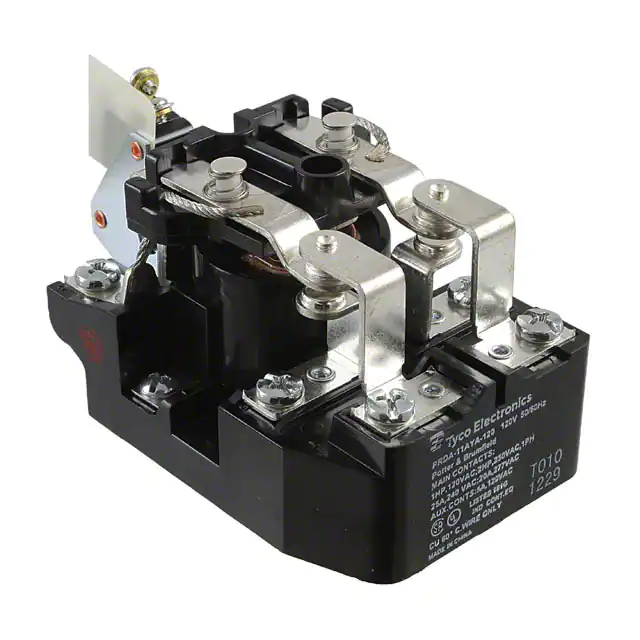

PRDA-11AYA-120RELAY GEN PURPOSE DPDT 25A 120V |
32 |
|
Datasheet |
PRDA | Bulk | Active | Chassis Mount | 120VAC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 85 mA | Non Latching | - | Screw Terminal | - | Class B | 102 VAC | 12 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | General Purpose | - | - |
|
ALT024-SRELAY IMPULSE SPDT 24V |
29 |
|
Datasheet |
ALT | Bulk | Active | Socketable | 24VDC | SPDT (1 Form C) | - | 240VAC - Nom | - | - | Latching, Single Coil | Debounce Delay | Plug In, 8 Pin (Octal) | - | - | - | - | - | - | -40°C ~ 50°C | - | Impulse | - | - |
|
G9KA-1A DC12RELAY GEN PURPOSE SPST 200A 12V |
48 |
|
Datasheet |
G9KA | Tray | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 260 A | 800VAC, 60VDC - Max | 208000VA, 12000W | 417 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 0.6 VDC | 30 ms | 10 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | General Purpose | - | - |
|
PRD-11AY0-480RELAY GEN PURPOSE DPDT 25A 480V |
40 |
|
Datasheet |
PRD | Bulk | Active | Chassis Mount | 480VAC | DPDT (2 Form C) | 25 A | 600VAC, 125VDC - Nom | - | 22 mA | Non Latching | - | Screw Terminal | - | Class B | 408 VAC | 48 VAC | 40 ms | 20 ms | -55°C ~ 45°C | Silver (Ag) | General Purpose | - | - |
Power Relays, Over 2 Amps Electronic Components
Explore Power Relays, Over 2 Amps electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
